Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)
77
4.1.1.4 Step 3 - Review Application Features
A list of Features will be presented in the left box. If you chose custom configuration, any feature
can be selected from the list. Otherwise, a minimum or maximum list of features will be shown. 4
A list of machines for which the chosen feature is available will be shown in the Available for box
on the right. An icon next to the machine name indicates whether the selected feature is
implemented for this machine or not. The Feature Description window shows a comment for the
selected feature. 4
4

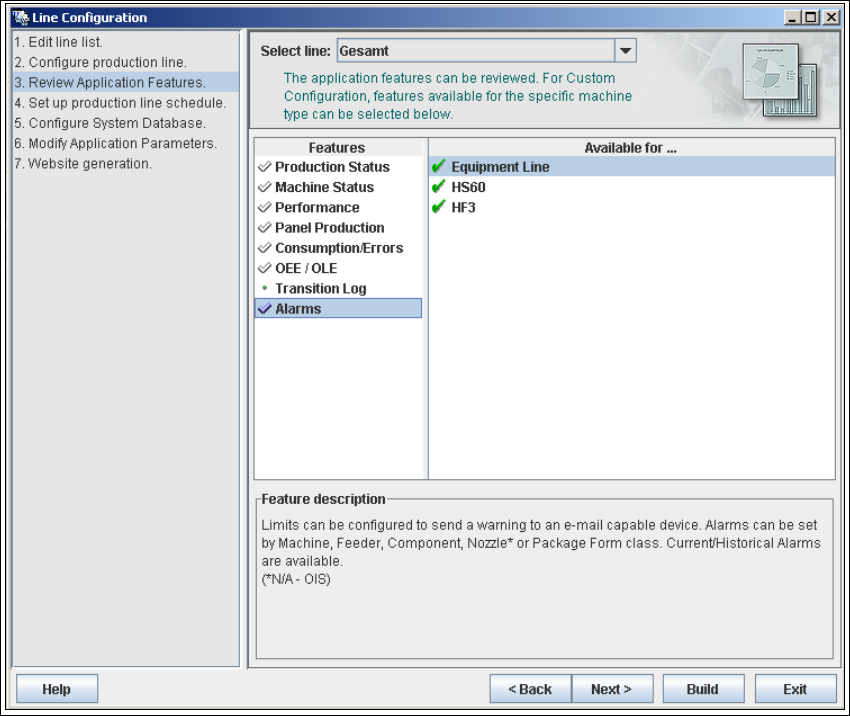

Fig. 4 - 7 Step 3: review application features
→ From the list in the left box, you can select the application features you want to add to the
application to be generated. To select a feature, mark the check box next to the feature name.
→ Check the functions for the relevant machines of all available production lines and add other
functions, where necessary.
→ After selecting all the features for the machines and production lines, click Next to continue
with the next step.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 11/2006 EN
78
4.1.1.5 Step 4 - Set Up Production Line Schedule
The SIPLACE Explorer Calendar allows you to specify a production line schedule: 4
– Define a weekly shift schedule,
– Plan engineering and scheduled downtime for machines in the line and
– Apply the schedule to a time interval.
4

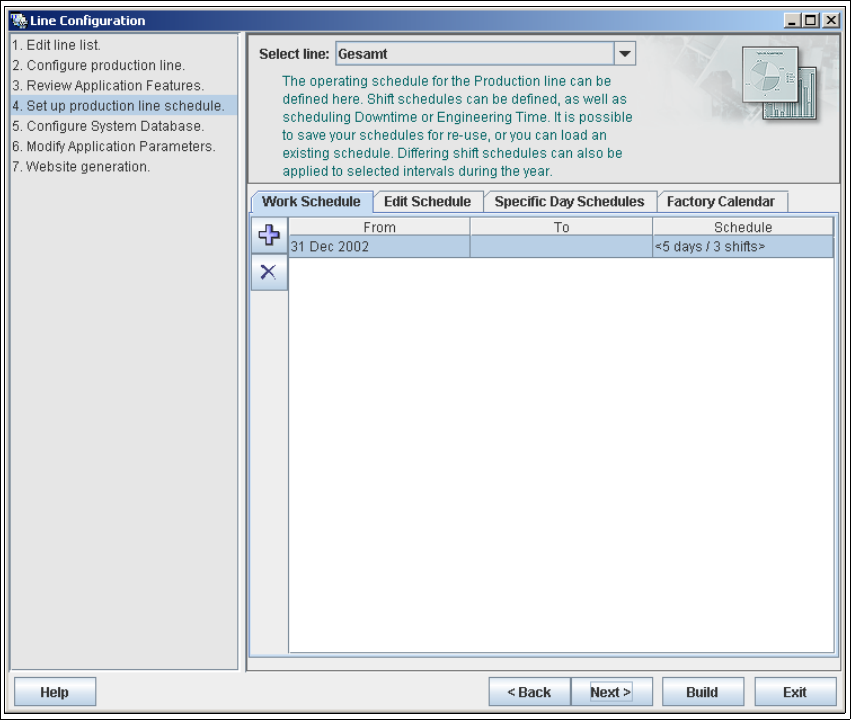

Fig. 4 - 8 Step 4: set up production line schedule
→ When the schedule for the production line as been defined, click on Next to continue with the
next step.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)
79
4.1.1.6 Step 5 - Configure System Database
→ Now you can configure the SIPLACE Explorer System database settings:
– Database type;
– Driver name;
–Host;
–Port;
– Database name;
– Login (click on the corresponding cell button to call up a dialog box in which you can specify
login information, i.e. user name and password).
→ For MS SQL Server database the default port '1433' will be offered, which does not usually
need to changed.
NOTE
If you have installed MSDE 2000, you must now enter the port number shown during the
installation procedure. 4
