Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)
79
4.1.1.6 Step 5 - Configure System Database
→ Now you can configure the SIPLACE Explorer System database settings:
– Database type;
– Driver name;
–Host;
–Port;
– Database name;
– Login (click on the corresponding cell button to call up a dialog box in which you can specify
login information, i.e. user name and password).
→ For MS SQL Server database the default port '1433' will be offered, which does not usually
need to changed.
NOTE
If you have installed MSDE 2000, you must now enter the port number shown during the
installation procedure. 4
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 11/2006 EN
80
4

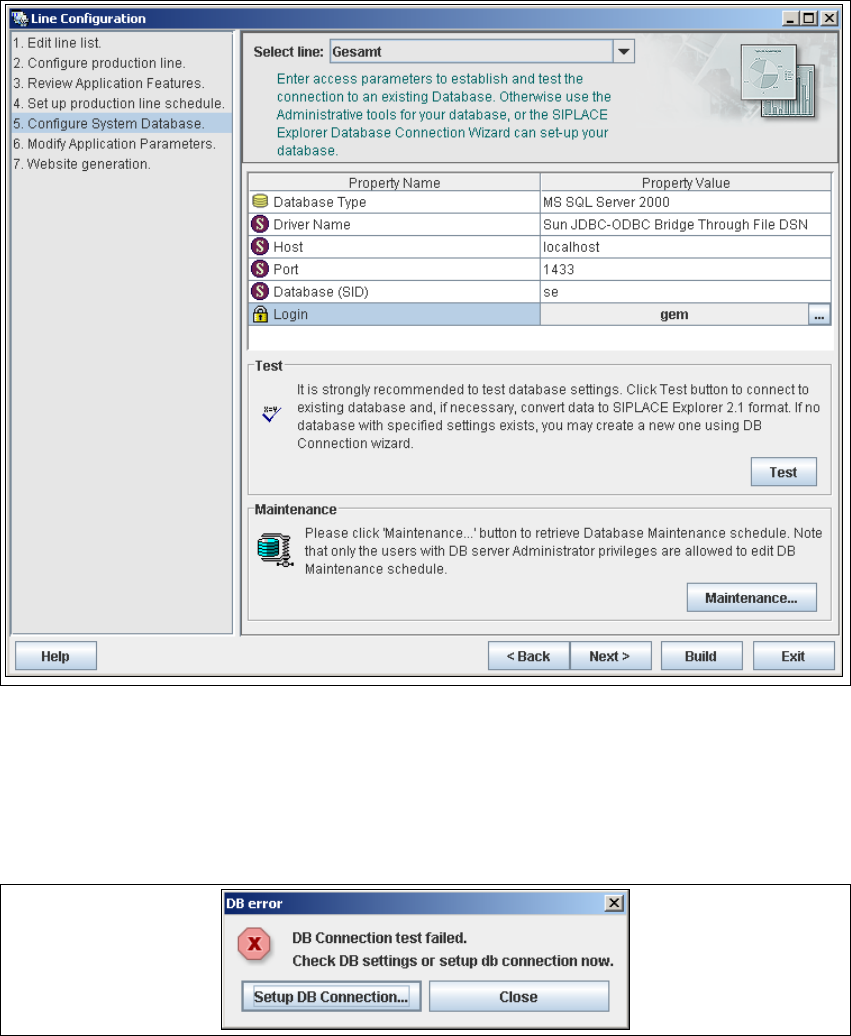

Fig. 4 - 9 Step 5: configure system database
→ After entering the database access parameters, we strongly recommend that you check the
connection to the database. Click Test to check whether the connection to the database can
be established.
→ If the connection does not function properly, you will see the following information box:
4
Fig. 4 - 10 DB error
→ Click on the Setup DB Connection button to start the DB Connection Wizard setup
sequence and configure the SIPLACE Explorer system database. Follow the instructions at
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2006 EN 4.1 Standard Monitoring Application (SMA)
81
“Database Connection Wizard” on page 111.
→ If the connection functions properly, you will see the following information box:
4

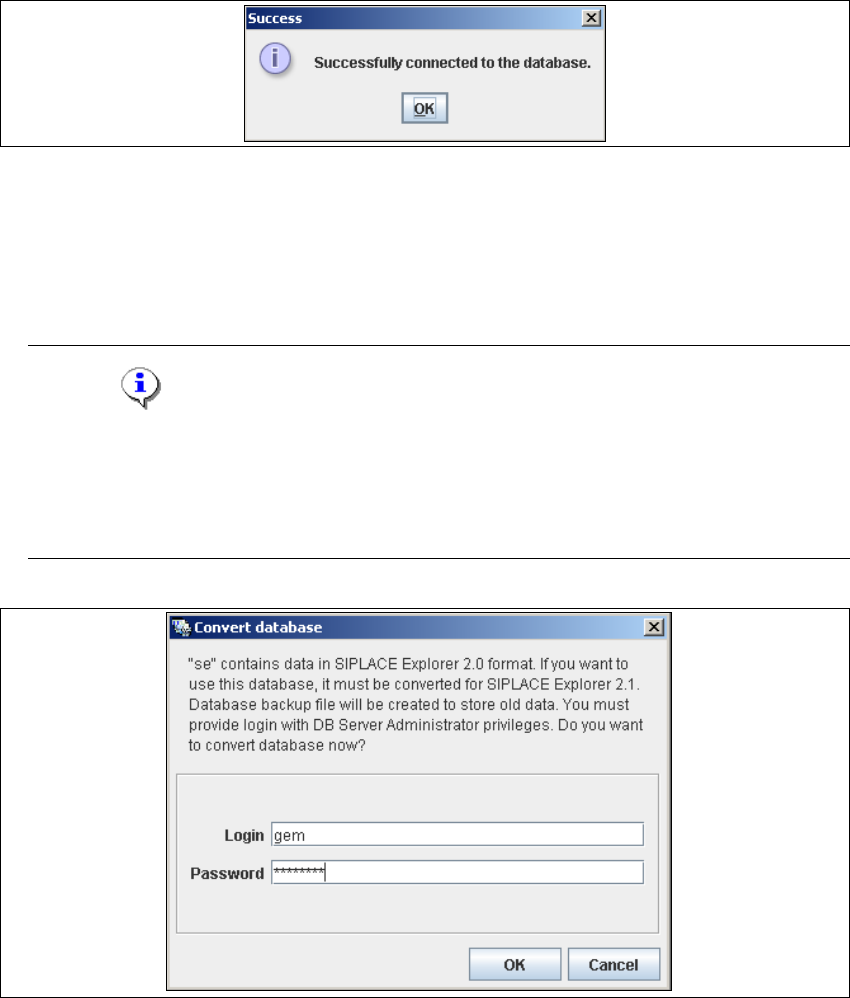

Fig. 4 - 11 Success
→ Click OK. The system will check the database data. If the database has data from SIPLACE
Explorer V2.0 or V1.2, you will need to convert the database for SIPLACE V2.1, due to the
changed data structure in the SIPLACE Explorer V2.1 database. In this case, the Convert
Database dialog box will open.
NOTE
Observe the following for database conversion:
- You will need database administrator rights.
- If you have started the conversion, this process can not be stopped.
- The conversion time depends on the size of the database. It may take up to an hour. 4
4
Fig. 4 - 12 Convert database
→ Specify the access data for the database administrator and confirm your entry with OK.
