3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
42
→ Enter the port number for Tomcat in the HTTP/1.1 Connector Port field. By default, Tomcat is
installed on port 8080. This means that your users will access your website as follows:
http://yourServerName:8080/yourWebsite/index.jsp.
→ Now enter the Tomcat administrator access data in the User Name and Password fields.
This login will automatically be used as default login for Line Configuration - Step 7 "Website
Generation". If you leave the Password field empty for Tomcat configuration, this setting can
then be used as the default login for line configuration. 3
However, if you specify a password here, you must use the same password at Line
Configuration - Step 7 "Website Generation". 3
→ Click on Next to continue. The Java Virtual Machine dialog box will open.
→ Specify the path for Java 2SE 5.0.
3

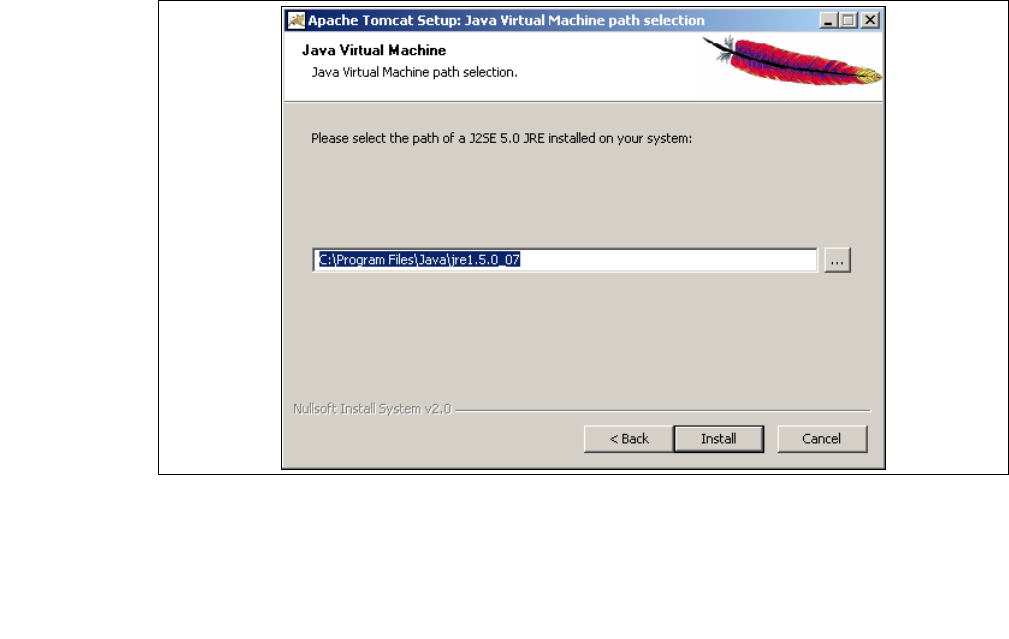

Fig. 3 - 30 Apache Tomcat Setup - Java Virtual Machine
→ The default path during Tomcat installation is C:\Program Files\Java\jre1.5.0_07. You can
alter the default installation folder by using the ... button. If you leave the incorrect path,
SIPLACE Explorer websites will not be displayed.
→ Click on Install to continue.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1
43
→ The actual installation of Tomcat will begin.
3
Fig. 3 - 31 Apache Tomcat setup - installing
→ Installation has been completed.
3
Fig. 3 - 32 Apache Tomcat setup - installing
→ Click on Finish.
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
44
→ If you have enabled the option Run Apache Tomcat, the Windows service for Tomcat will be
started.
3
Fig. 3 - 33 Apache Service Manager
→ If this is not the case, reboot your computer to start Tomcat or start the Tomcat feature
manually.
→ Tomcat 5.5 runs as a Windows service and is automatically started whenever you reboot your
computer. You will see the icon in your console.
NOTE
Tomcat 5.5 needs to be manually reconfigured for working with SIPLACE Explorer in the following
cases:
- When using Windows XP Professional with SP2
- For port configuration, when changing the Tomcat port number
- When extending the memory capacity for Tomcat.
For a detailed description of these points, please see Section “Tomcat Configuration” on page 59.3
