Installation and Configuration Guide SIPLAC E Explorer 3 Installing SIPLACE Explorer Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1 35 → The Ready to Inst all the Program dialog box will open. 3 Fig.…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
34
→ To accept the destination folder, click on Next in this window.
→ The Select Features dialog box will open. Here you can select any of the following three
components: SIPLACE Explorer Runtime Environment, Factory Configuration Utility and
SIPLACE Explorer Development Environment.
3
Fig. 3 - 18 SIPLACE Explorer setup - 'select features' dialog box
WARNING
Do not install "SIPLACE Explorer V.2.1 Runtime Environment" and "SIPLACE Explorer V.2.1
Development Environment" on the same computer. These two options will not run parallel to
one another. Before working with these options in succession, make sure you know the steps
for starting/terminating the respective option and observe these. 3
→ Once you have selected the required installation option, click on the Next button to continue.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 11/2006 EN 3.1 Initial Installation of SIPLACE Explorer 2.1
35
→ The Ready to Install the Program dialog box will open.
3
Fig. 3 - 19 SIPLACE Explorer setup - 'ready to install' dialog box
→ Click on the Install button, to begin the actual installation of SIPLACE Explorer V2.1.
3
Fig. 3 - 20 SIPLACE Explorer setup - setup status
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.1 Edition 11/2006 EN
36
→ Once the installation procedure has finished, the following dialog box will appear.
3

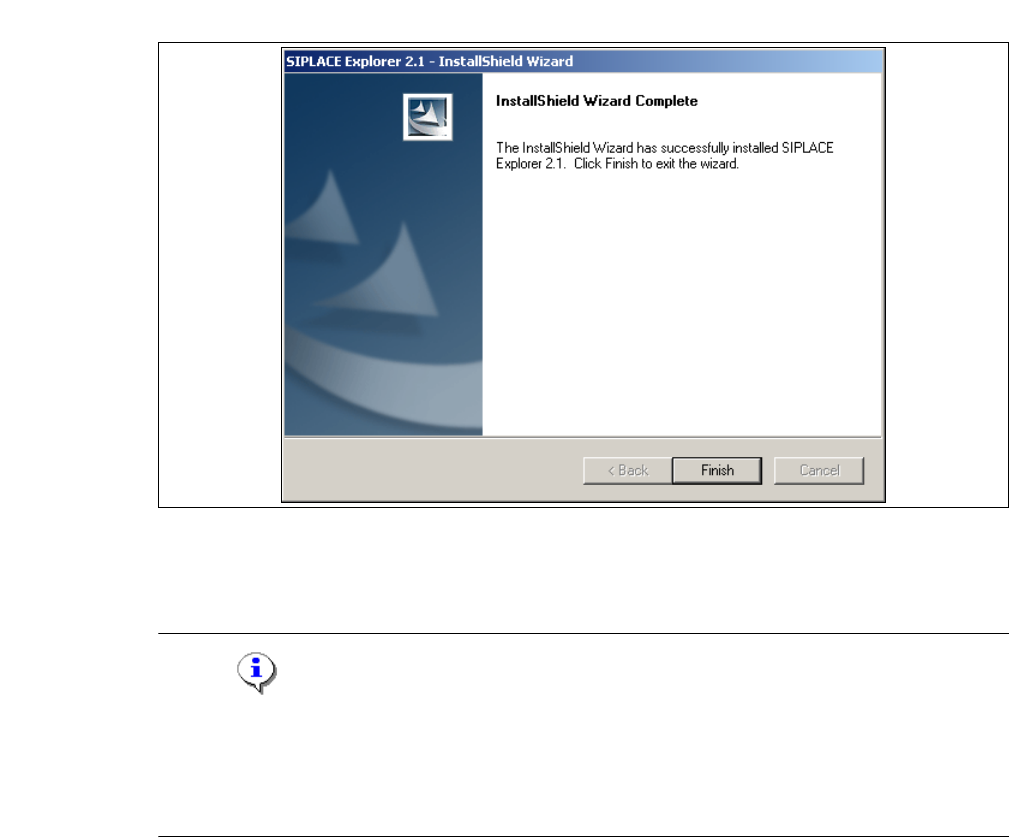

Fig. 3 - 21 SIPLACE Explorer setup - installation complete
→ Click on Finish. After you have rebooted your computer, SIPLACE Explorer will be available
for use. Follow the instructions at “Starting SIPLACE Explorer” on page 56.
NOTE
After installation of SIPLACE Explorer you must reboot the system. This is necessary to guarantee
that port 1099 is available for Java Runtime Environment. It is rarely possible that port 1099 is
used by another application. If you start SIPLACE Explorer without system restart right after
installation following error message is displayed "SIPLACE Explorer 2.1 runtime not found". 3
