Samsung Component Placer SM41 1 Service Manual 4-4 NO. P ART NO. P ART N AME Q’TY TYPE REMARK 11 J70551046A MIRROR_CAM 2 J70551046A 12 J70551 1 18A MIRROR_SHAFT 1 J70551 1 18A 13 J6025300036 HEX NUT 2 M3 14 J6601081A CAM…

100%1 / 532
Head Module
4-3
NO. PART NO. PART NAME Q’TY
TYPE REMARK
39 J70551040A SENSOR_BRACKET_R-M
1
J70551040A
40 J31081013A
SERVO_MOTOR 1
MSMA5AZP2A
41
J7255081A MIRROR MOTOR ISOLATOR 1
J7255081A
42
J71551017A MIRROR_MOTOR_BRACKET 1
J71551017A
43
J7155523A PULLEY (S-AXIS 2) 1
J7155523A
44
J66021004A TIMING_BETL 1 267-3GT-6
45
J71551021A TIE_MOUNT_2 3
J71551021A
46
J71551010A FIDUCIAL_CAMERA_BRACKET 1
J71551010A
47
J7155572A CAMERA CABLE HOLDER 1
J7155572A
48
J6751014A CCD CAMERA 1 VCC-G20E20
J6751015A CCD CAMERA 1 SFA-205AL
49
J9059139A R_MOVING_LENS_ASSY 1
J9059139A
50 J9060357B HEAD OUTER LED BOARD ASSY 1 REV 1.1
4.1.2. Head Ass’y - B
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1
J61071010A TENSION SPRING 2 AWU6-45
2
J6071150050 E-RING 2 DIA1.5(SUS)
3
J7455026A SPRING BUSH 4
J7455026A
4 J70551041A
SPRING_POST-FIXED 2 J70551041A
5
J70551042A
SPRING_POST-MOVING
2 J70551042A
6
J70551038A MIRROR_SPRING_BRACKET 2
J70551038A
7
J71551013A MIRROR_ARM-CAMERA 1
J71551013A
8
J6601079A BALL BEARING 4 695ZZ
9
J7055557A BEARING HOUSING 1
J7055557A
10 J71551026A PULLEY-S_AXIS1
1
J71551026A
Samsung Component Placer SM411 Service Manual
4-4
NO. PART NO. PART NAME Q’TY
TYPE REMARK
11
J70551046A MIRROR_CAM 2
J70551046A
12 J70551118A MIRROR_SHAFT
1
J70551118A
13
J6025300036 HEX NUT 2 M3
14
J6601081A CAM FOLLOWER 2 CF3UU-A
15 J7055204A ARM JOINT
1
J7055204A
16
J6601080A BALL BEARING 4
MR148ZZ
17
J70551037A MIRROR_JOINT 1
J70551037A
18
J7055153A MIRROR SCREW 2
J7055153A
19 J71550511B STOPPER
2
J71550511B
20 J71551043A MIRROR_SENSOR_DOG
1
J71551043A
21 J71551017A MIRROR_MOTOR_BRACKET
1
J71551017A
22
J3212027A MICRO PHOTO SENSOR 3 PM-L24
23
J90551077A HEAD_ILLUM_ASSY 1
J90551077A
23-A
J71551019A SIDE_ILLUM_BODY 1
J71551019A
24-B
J72550084B SIDE_REFLECTOR 6
J72550084B
24-C
J91741024A SM330_OUTER_LED_BOARD 1
J91741024A
25-D
J71551018A FIDUCIAL_BLOCK 1
J71551018A
24-E
J71551022A OUTER_ILLUM_BODY 1
J71551022A
24-F
J91741024A OUTER_LED 1 J91741024A
24-G J70551047A ILLUM_BRACKET 2 J70551047A

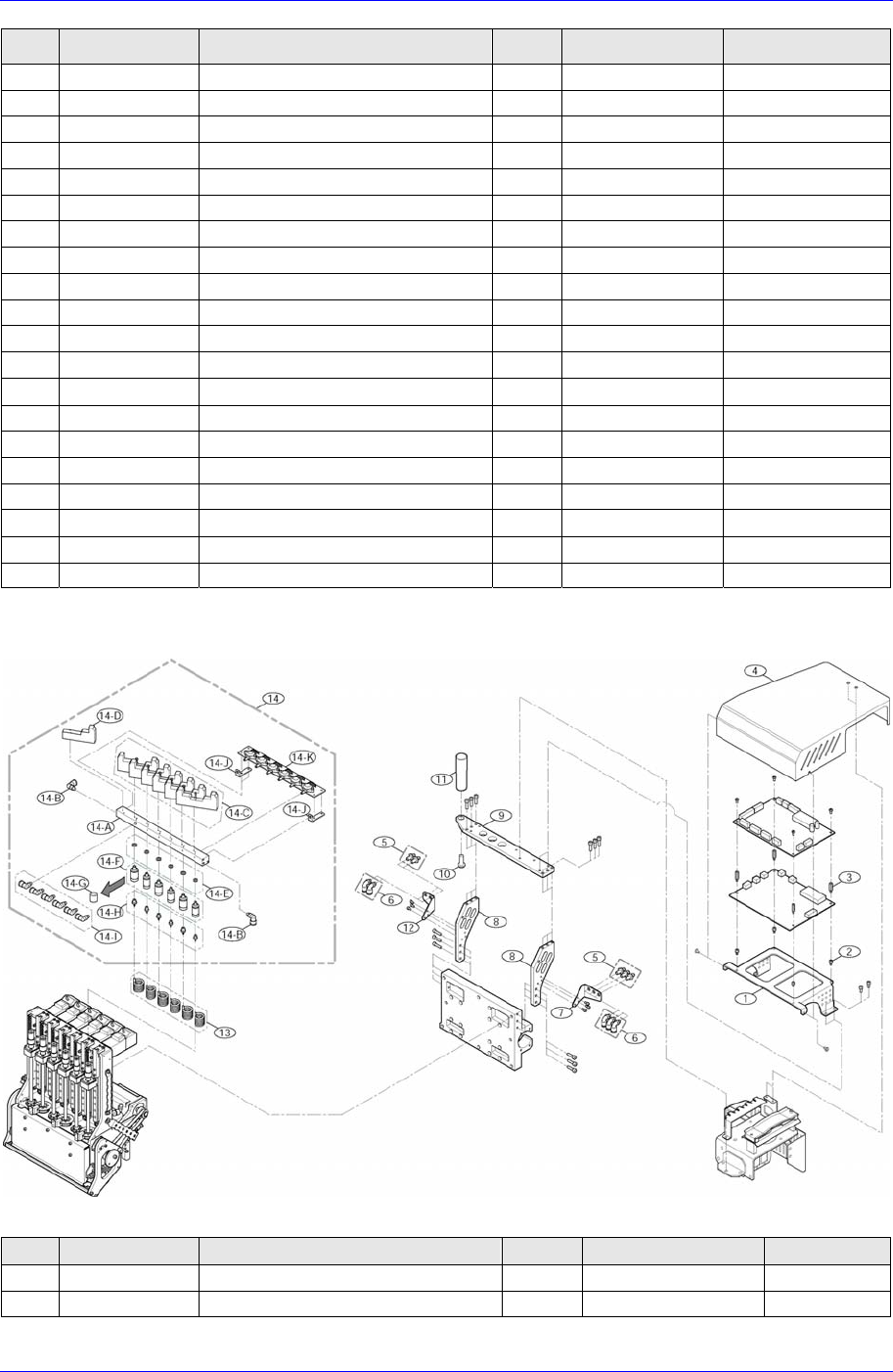

4.1.3. Carrier Ass’y
NO. PART NO. PART NAME Q'TY TYPE NO.
1
J71541019A HEAD_BOARD_BRACKET 1
J71541019A
2
J6103003A HEX SUPPORT 4
M3*5 (BOLT-NUT)
Head Module
4-5
NO. PART NO. PART NAME Q'TY TYPE NO.
3 J1201033
HEX SUPPORT 5
M3*15 (BOLT-NUT)
4
J71541079A HEAD_TOP_COVER 1
J71541079A
5
J6719025A GREASE_NIPPLE 5 M6*1.0-STRAIGHT
6
J67111015A ELBOW_UNION_FEMALE 5 KQ2LF04-M6
7
J70541016A 3-NIPPLE_BRACKET 1
J70541016A
8 J71541016A
HARNESS_SUPPORT 2
J71541016A
9
J71541017A HARNESS_PLATE 1 J71541017A
10 J6004002038
BUTTON_HEAD_CAP_SCREW 1
M10*20L
11
J6119056A HANDLE 1 BG-10
12
J70541017A 2-NIPPLE_BRACKET 1 J70541017A
13
J6713022B COIL TUBE 6 UL03-B-5T-B50
14
J90551067A AIR_MODULE 1 J90551067A
14-A J71551117B MANIFOLD_NEW
1
J71551117B
14-B
J6711260A ONE TOUCH FITTING 2 FSE04-M5C
14-C
J6702048A SOLENOID VALVE 6 VA01PEP34-1U-F
14-D
J6702049A SOLENOID VALVE 1 RCS242-M3-D24NP
14-E
J7155546A INSERT 6
J7155546A
14-F J9058090A FILTER ASSY
6
J9058090A
14-G
J7458002A FILTER ELEMENT 6 LF-M5-60-Z-ELEMENT
14-H
J6711262A MINI FITTING 6 BC-03-M5
14-I J6711009A ELBOW-FITTING
6
KQ2L06-M5
14-J J7055662A
VACUUM SENSOR BRACKET 2
J7055662A
14-K J9060412A SM321 VACUUM SENSOR BOARD 1 REV 1.1
