Samsung Component Placer SM411 Service Manual
10-10

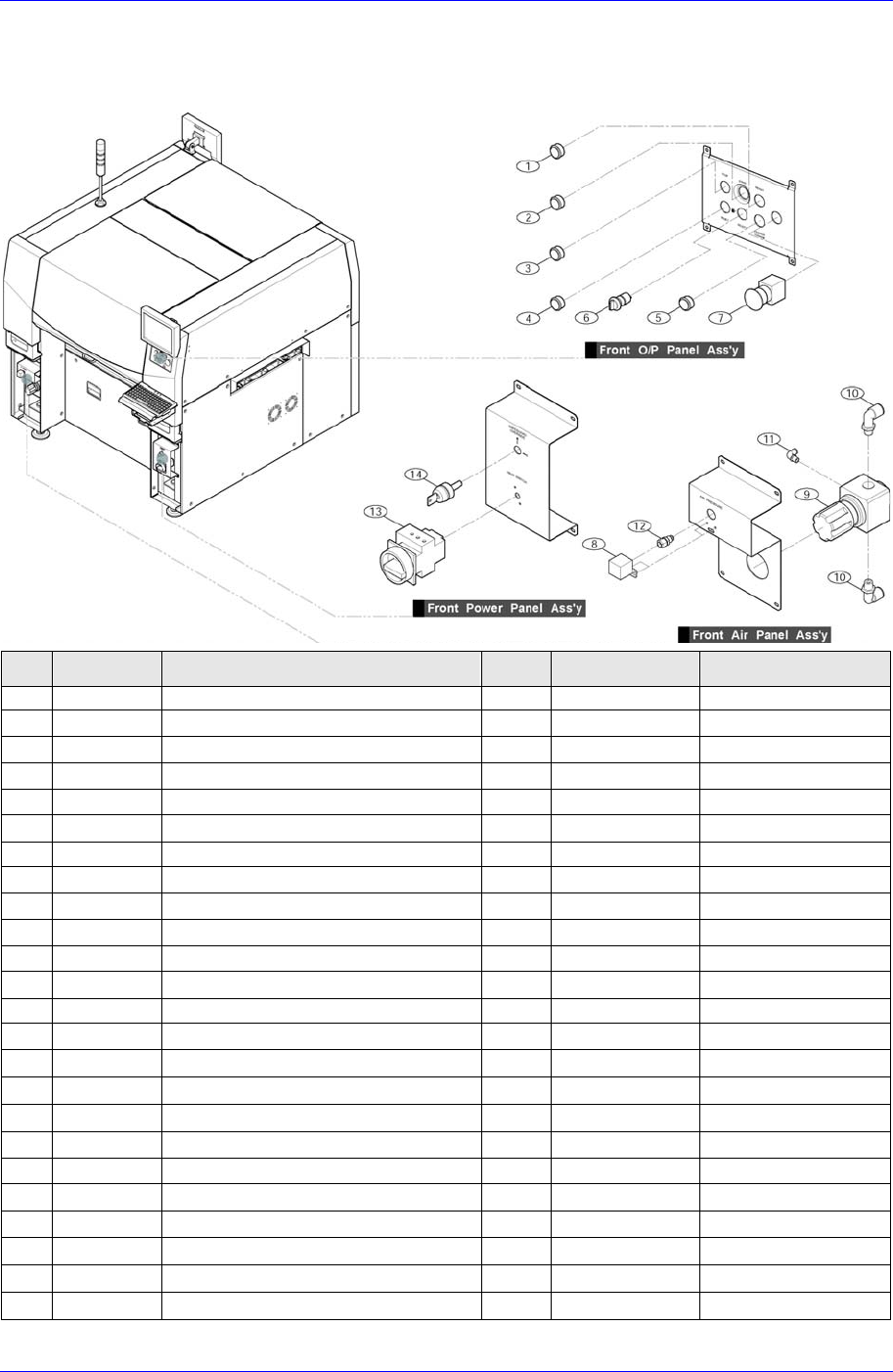

10.3. Function Panel Ass’y 所需材料
10.3.1. Front Function Panel Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J3403085A READY SWITCH ASS'Y 1 61-1100.0(CLEAR)
FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A
LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J3403065A
SWITCHING ELEMENT (2A)
1
61-8420.12
FRONT, REAR COMMON
J34091004A
LENS PLASTIC,CLEAR
1
61-9642.7
FRONT, REAR COMMON
2 J3403078A START SWITCH ASS'Y 1 61-1100.0(GREEN)
FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601042A
LED (DC24V,GREEN)
1 10-5312.3135 FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J6739090A LENS PLASTIC,GREEN
1 61-9642.5 FRONT, REAR COMMON
3 J3403079A STOP SWITCH ASS'Y 1 61-1100.0(RED) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601041A
LED (DC24V, RED)
1 10-5312.3132 FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J6739088A LENS PLASTIC,RED
1
61-9642.2
FRONT, REAR COMMON
4 J3403080A RESET SWITCH ASS'Y 1 61-1100.0(YEL) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J3403064A
LENS PLASTIC,YELLOW 1 61-9642.4 FRONT, REAR COMMON
Electric Device
10-11
NO. PART NO. PART NAME Q’TY
TYPE REMARK
5 J3403086A FEEDER CHANGE SWITCH ASS'Y 1 61-1100.0(CLEAR) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J34091004A
LENS PLASTIC,CLEAR
1
61-9642.7
FRONT, REAR COMMON
6
J3403081A SELECT SWITCH ASS'Y
1
61-
8520.12(SELECT)
FRONT, REAR COMMON
J3403052A FRONT BEZEL-SET
1
61-9932.0
FRONT, REAR COMMON
J3403073A SWITCHING ELEMENT
1
61-8520.12
FRONT, REAR COMMON
J3403074A SELECT SWITCH
1
61-4810.0
FRONT, REAR COMMON
J3403075A LEVER
1
61-9028.50
FRONT, REAR COMMON
7 J3403082A EMERGENCY SWITCH ASS'Y 1 704.075.2(EM) FRONT, REAR COMMON
J3409020A
EMERGENCY S/W
1
704.075.2
FRONT, REAR COMMON
J3409021A
EM S/W (2B)
1
704.900.4
FRONT, REAR COMMON
8
J67101002A DIGITAL_GAGE
1
PS30-103R-N
9
J6709012A
REGULATOR
1
TAR4000-04
10
J1301187
ELBOW FITTING
2
PL12-04
11
J6711028A
ELBOW FITTING
1
KQ2L04-01
12
J6711147A
STRAIGHT FITTING
1
KQ2H04-M5
13
J3406005A
LOAD SWITCH
1
PI-25
14 J90831059A
SAFEGUARD_OV_SW_KEY_CABLE_ASS
Y
SM33-SC008
Samsung Component Placer SM411 Service Manual
10-12
10.3.2. Rear Function Panel Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1
J67081008A MIST_SEPARATOR_ASSY
1
AF40-04BC
1-A
J67081009A FILTER ELEMENT
1
AF40P-060S
2
J67111032A ELBOW FITTING
2
SQV12-04S
3
J36031004A MAIN CIRCUIT BREAKER
1
GV2ME22
4
J3713061A CONNECTOR
1
555376-1
5
J3716070A PANEL
1
GV2-AF02
6 J70521091A
TRAY_CABLE_COVER
1
J70521091A
7 J90831252A
REAR_ELEC_PANEL_EARTH_CABLE_AS
SY
1 SM33-PW003-1
8 J7152027A GROUND TERMINAL 1 J7152027A
