4OM-1733 1-4-27 4.7.2 Linear Measure (Light Projector and Receiver) Cleaning Cycle : Every Day (Required Time : 5 minutes) Linear Measure Sensor (Light Emitter) Linear Measure Sensor (Light Receiver) Fig. 4A4-35 Procedur…

4OM-1733

1-4-26

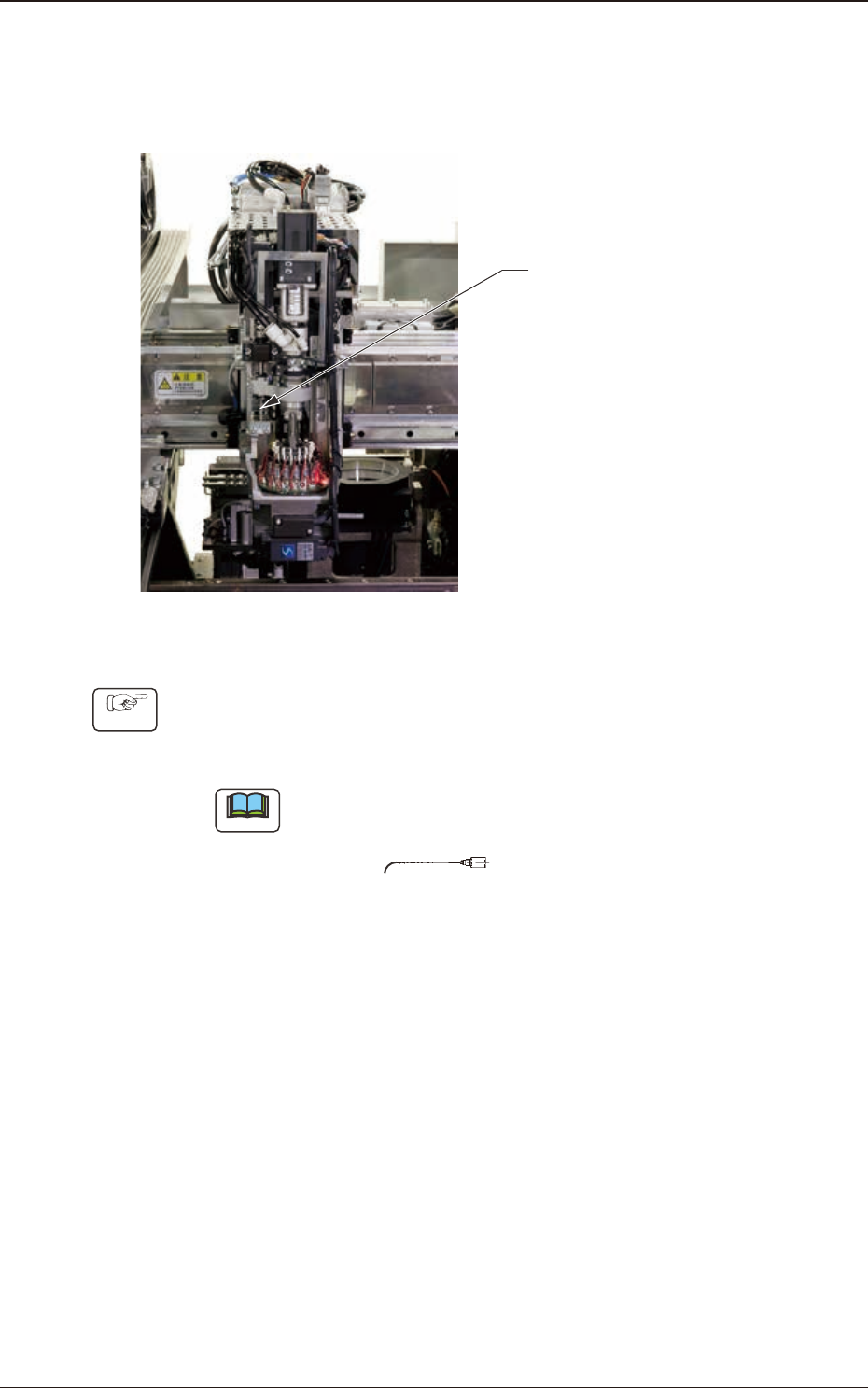

4.7.1 Nozzle Up/Down Ball Screw (NL-axis) Cleaning and Oiling

Cycle : Every 3 Months (Required Time : 10 minutes)

Grease : DAPHNE EPONEX GREASE No.1

Nozzle U/D Ball Screw

(NL Axis)

Fig. 4A4-33

Procedure

(1) Wipe old grease out using a rag.

(2) Apply grease in the ball screw groove slightly using the syringe.

Note

Use No. 19 (brown) nozzle.

No.19

Fig. 4A4-34

1211-002

4.7 Head Section

4OM-1733

1-4-27

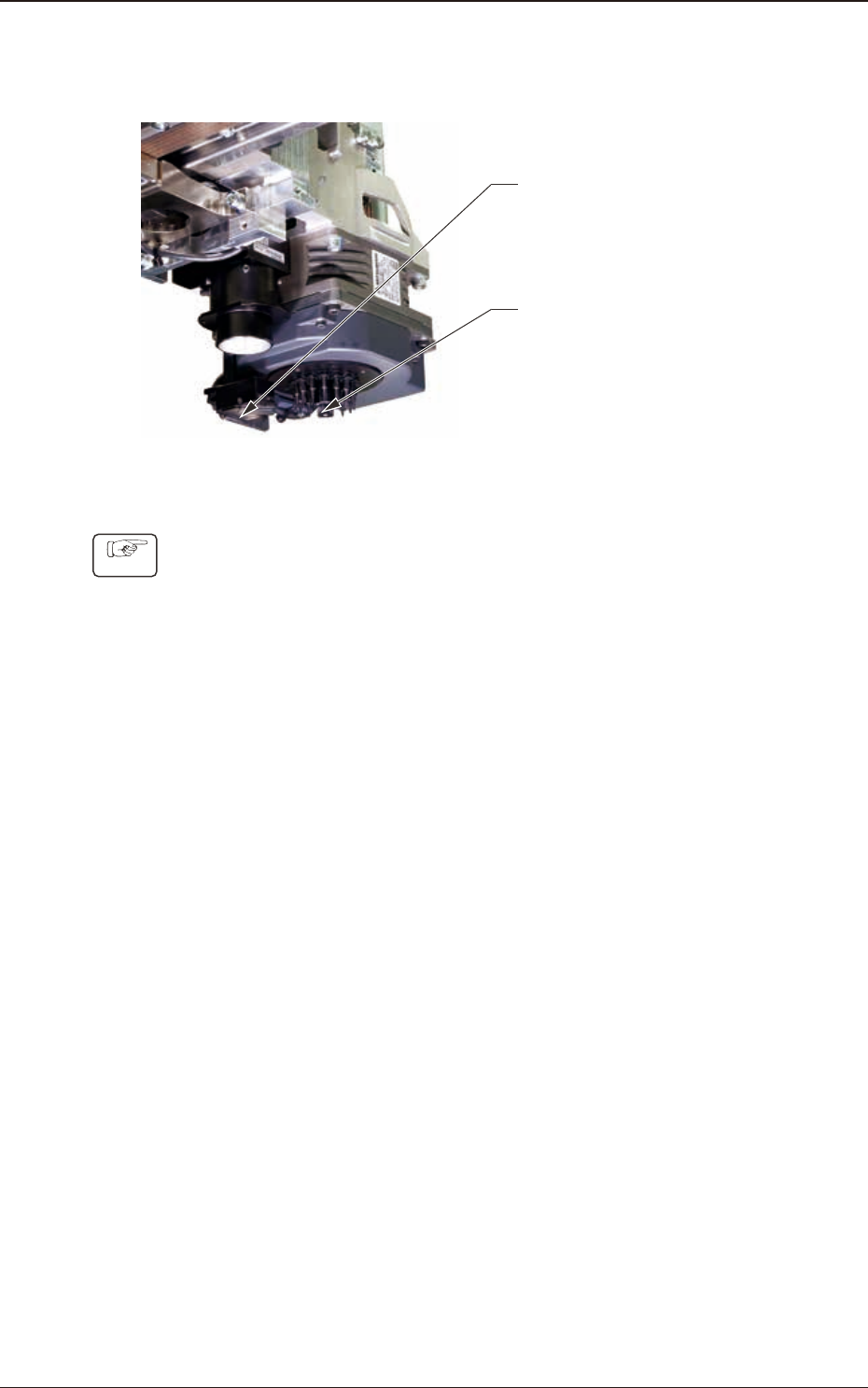

4.7.2 Linear Measure (Light Projector and Receiver) Cleaning

Cycle : Every Day (Required Time : 5 minutes)

Linear Measure Sensor

(Light Emitter)

Linear Measure Sensor

(Light Receiver)

Fig. 4A4-35

Procedure

When any fat or oil is stuck to the line sensor, rub off the dirt using a cotton

applicator dipped in dehydrated ethanol.

1211-002

4.7 Head Section

4OM-1733

1-4-28

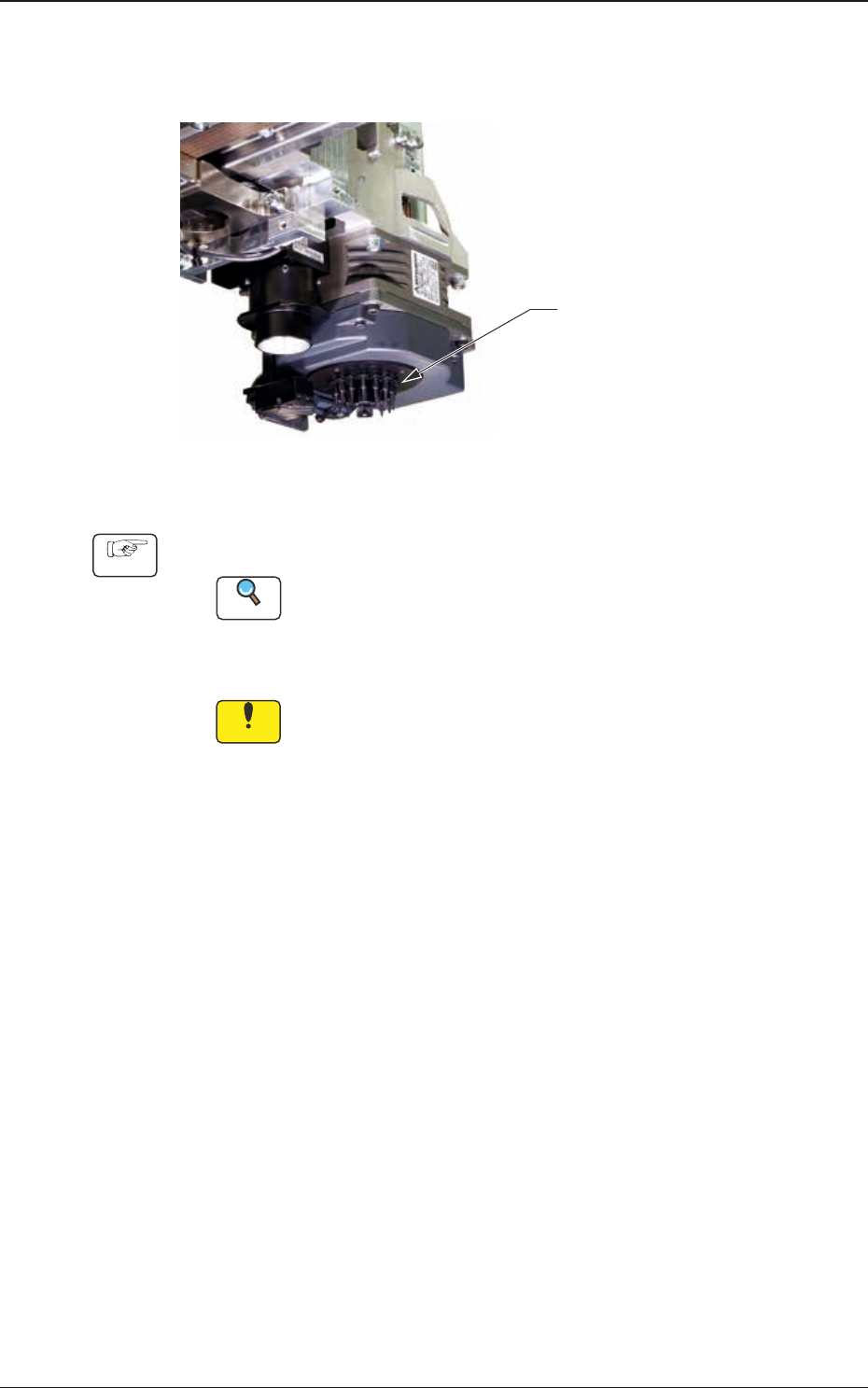

4.7.3 Diffusion Plate Cleaning

Cycle : Every Month (Required Time : 5 minutes)

Diffusion Plate

Fig. 4A4-36

Procedure

(1) Store all nozzles in the nozzle stocker (housing) through window navigations.

Reference

Refer to "5. Nozzle Change Window" in "Chapter 6 (Vol. 2)" for the

procedure of nozzle storage.

(2) Wipe the diffusion plate with a dry lens cleaning cloth.

Notice

Sebum or oil should not adhere to the surface of the diffusion plate.

1208-001
