Safety Precautions Safe-17 1OM-1733 1208-003 5. Alert Labels (1) (7) (5) (10) (4) (17) Rear Side of Machine Fig. X2
Safety Precautions
Safe-16
1OM-1733
1208-003
5. Alert Labels
Location of Alert Labels
The alert labels are afxed on dangerous and caution-required areas.
Refer to "Alert Labels and Description" for details.
Front Side of Machine
(1)
(17)
(7)
(8)
(3)
(5)
(5)
(11)
(4)
Fig. X1
Safety Precautions
Safe-17
1OM-1733
1208-003

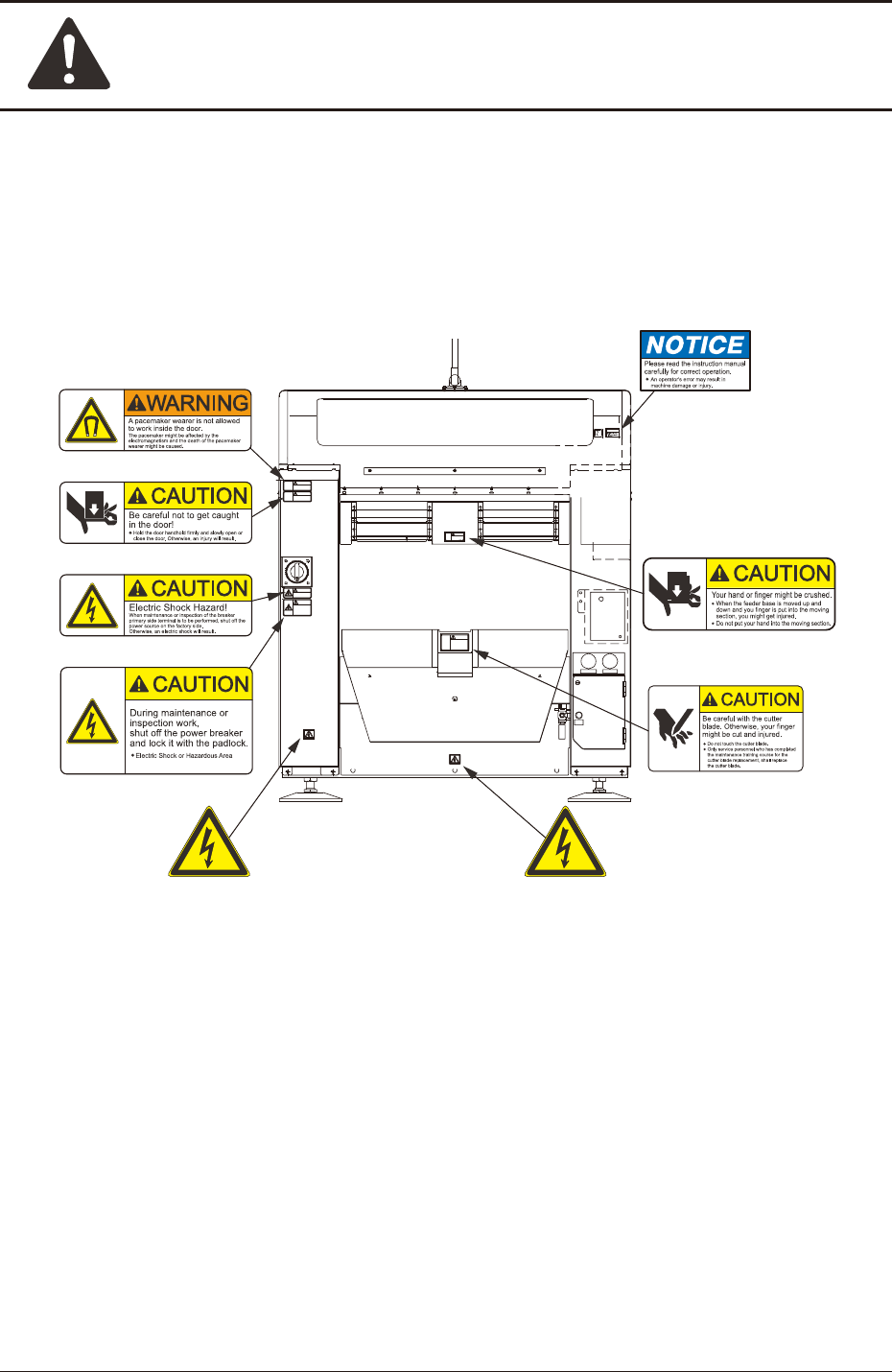

5. Alert Labels
(1)
(7)
(5)
(10)
(4)
(17)
Rear Side of Machine
Fig. X2
Safety Precautions
Safe-18
1OM-1733
1208-003
5. Alert Labels
Right Side of Machine
(9)
CAUTION
Your hand might be caught in the moving section. Do not
put your hand into the cover opening during the machine
operation.
Pay attention to the moving
mechanisms!
Fig. X3
Left Side of Machine
(9)
CAUTION
Your hand might be caught in the moving section. Do not
put your hand into the cover opening during the machine
operation.
Pay attention to the moving
mechanisms!
Fig. X4
