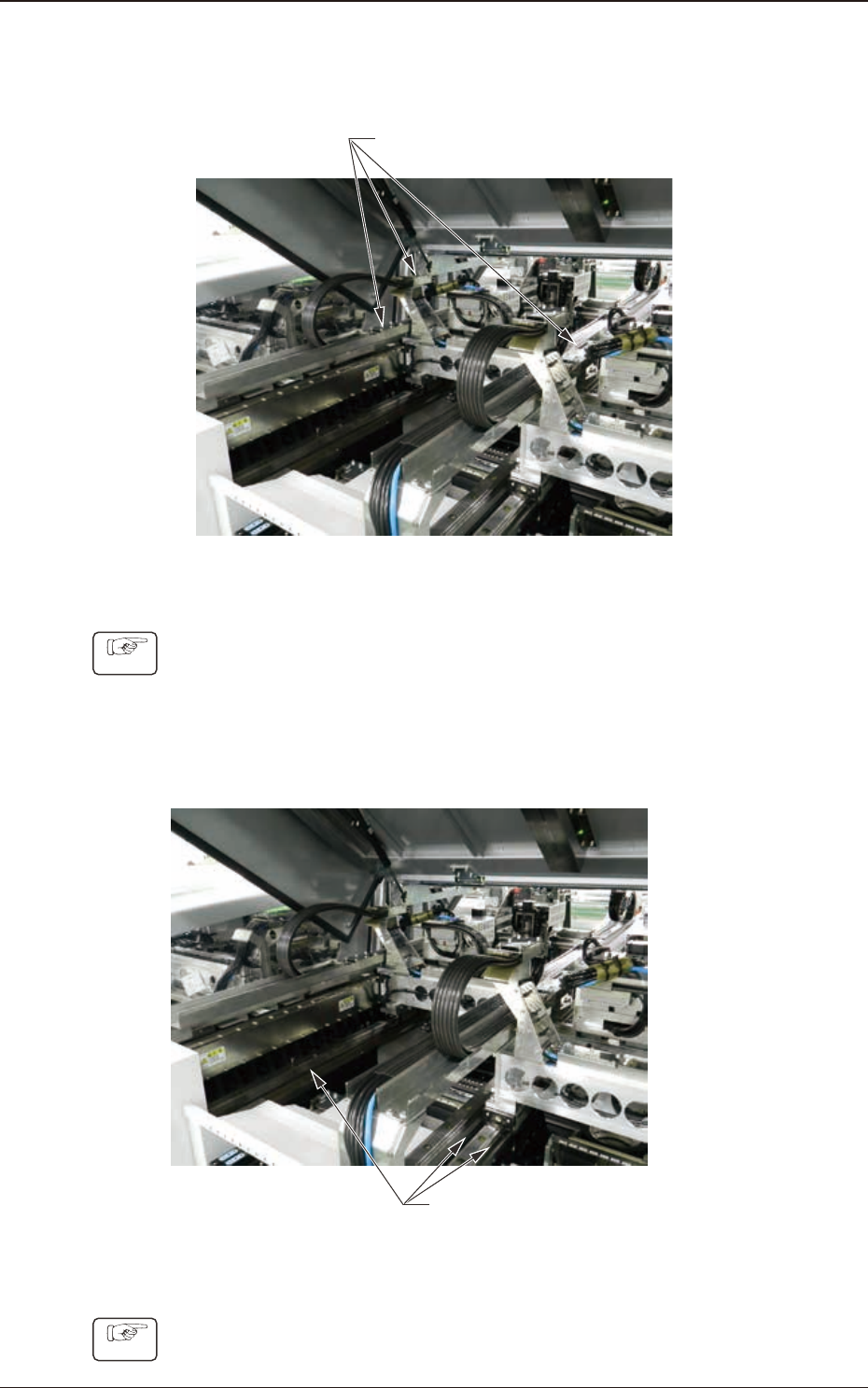

4.8.6 Y-axis Cable Fixing Location Check
Cycle : Every 6 Months (Required Time : 1 minute)
Y-Axis Cable Fixing Location
Fig. 4A4-53
Procedure
Check visually for any abnormality such as cracks.
4.8.7 Y-axis Linear Encoder Scale-Tape Cleaning
Cycle : Every 6 Months (Required Time : 5 minutes)
Linear Encoder Scale-Tape
Fig. 4A4-54
Procedure
When it is very dirty, clean it using a cloth soaked in alcohol.
1211-002
4.8 X/Y Beam Section
4OM-1733
1-4-43

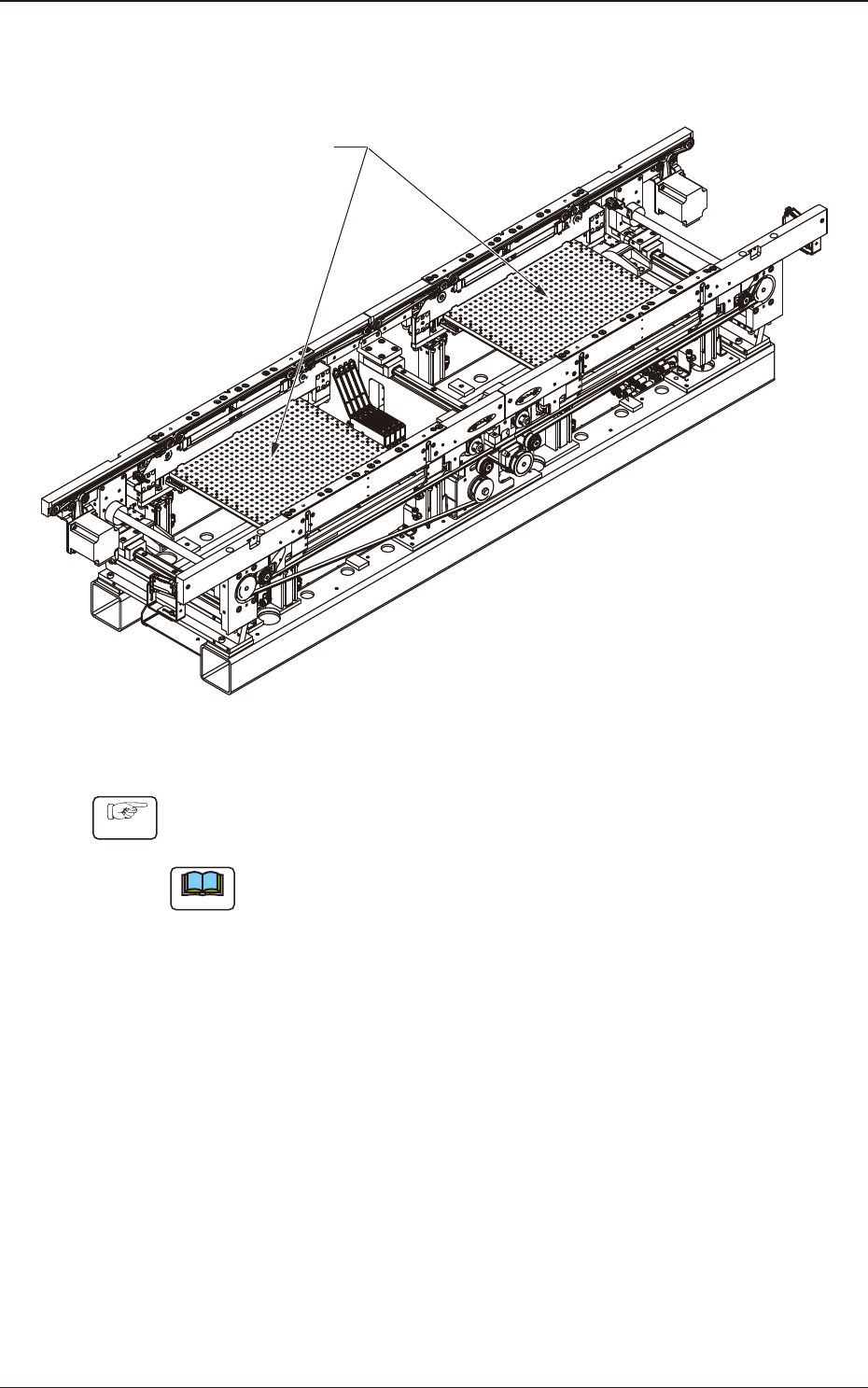

4.9 PCB Positioning Section

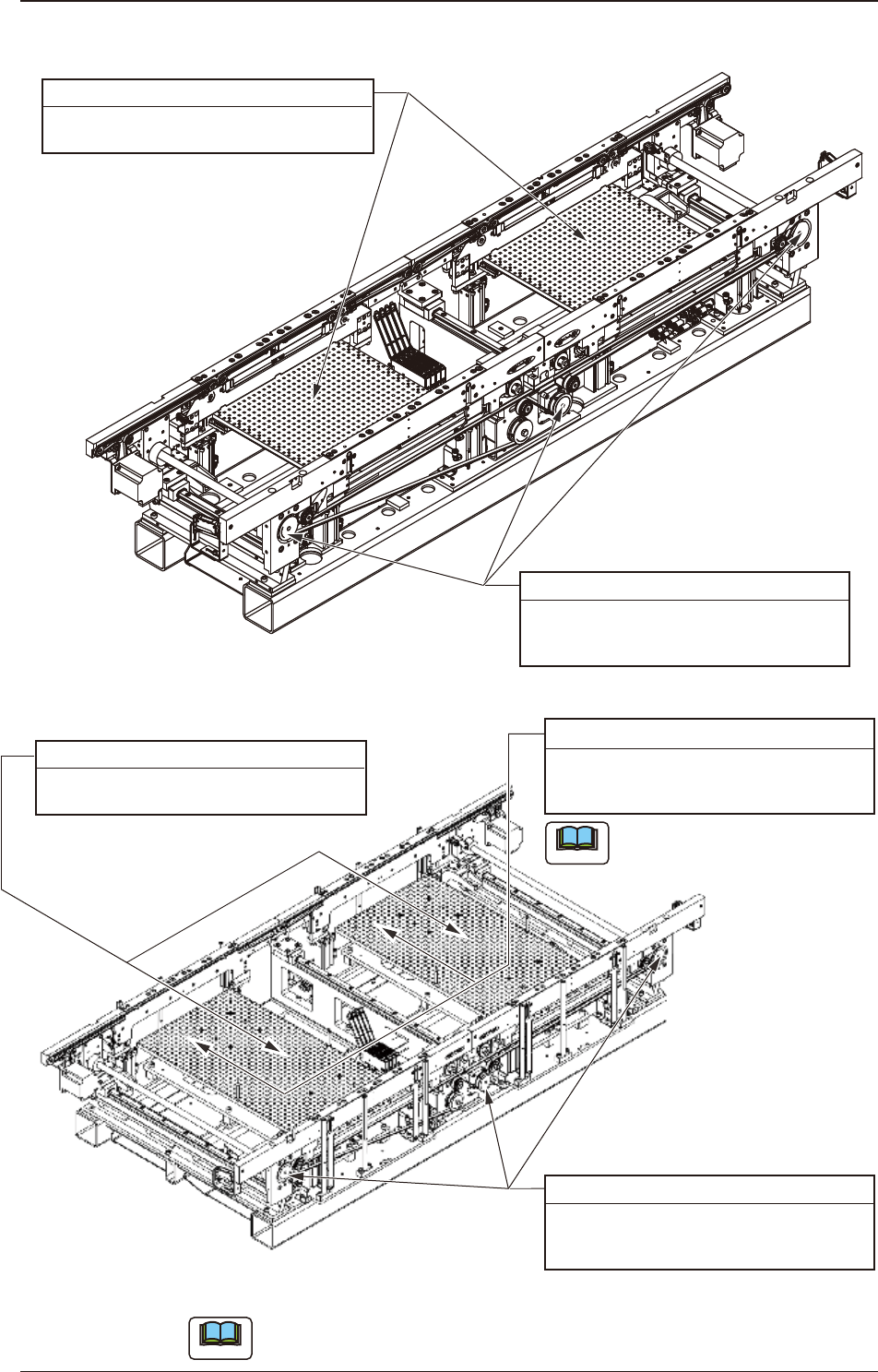

Ball Screws (3 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
Upper Surface of Backup Table
Every Week Cleaning
Required Time: 2 minutes
Fig. 4A4-55
The nipple are located on the lower side
of the backup table.
Ball Screws (3 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
Ball Screw Spline (Four places to nipple)
Every 6 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
Upper Surface of Backup Table
Every Week Cleaning
Required Time: 2 minutes
Note
Fig. 4A4-55-1 Y510mm Single Transfer Unit (Option)
Note
This optional unit can be selected when the system is delivered from the factory.
1403-004
4.9 PCB Positioning Section
4OM-1733
1-4-44
4.9.1 Backup Table Upper Surface Cleaning
Cycle : Every Week (Required Time : 2 minutes)
Backup Table Upper Surface
Fig. 4A4-56
Procedure
Remove foreign substances and unrequired components and suck dirt and dust
with a vacuum cleaner.
Note
Perform the cleaning operation using the same procedure also in the system
where the Y510mm Single Transfer Unit (Option) has been mounted.
