4.1.4 Filter Cleaning

Cycle : Every 3 Months (Required Time : 5 minutes)

Filter

Fig. 4A4-5

Procedure

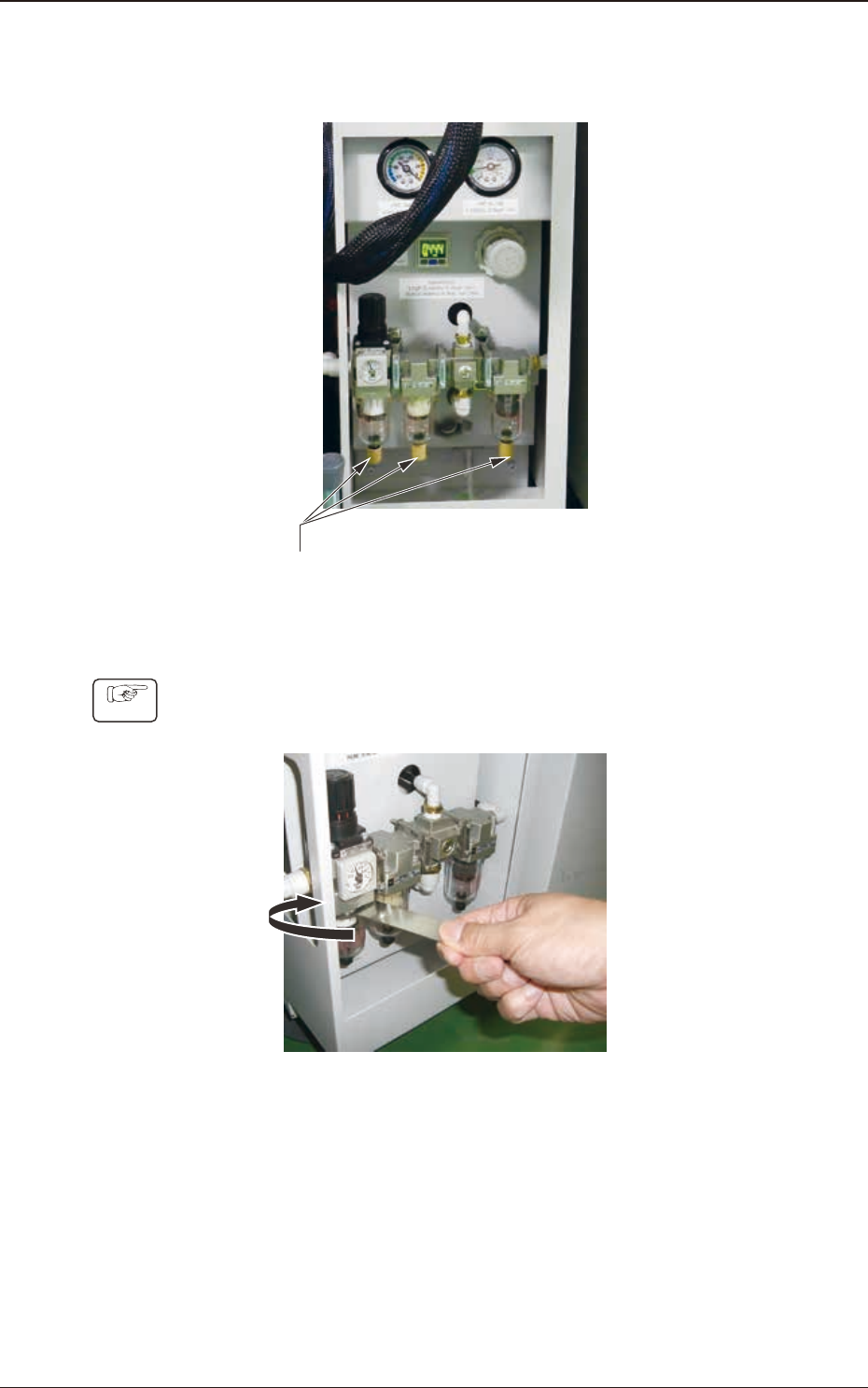

(1) Turn the cover unit in the direction shown in the gure, using the air-lter

case removing jig to remove the cover.

Fig. 4A4-6

1208-001

4.1 Air Source

4OM-1733

1-4-6

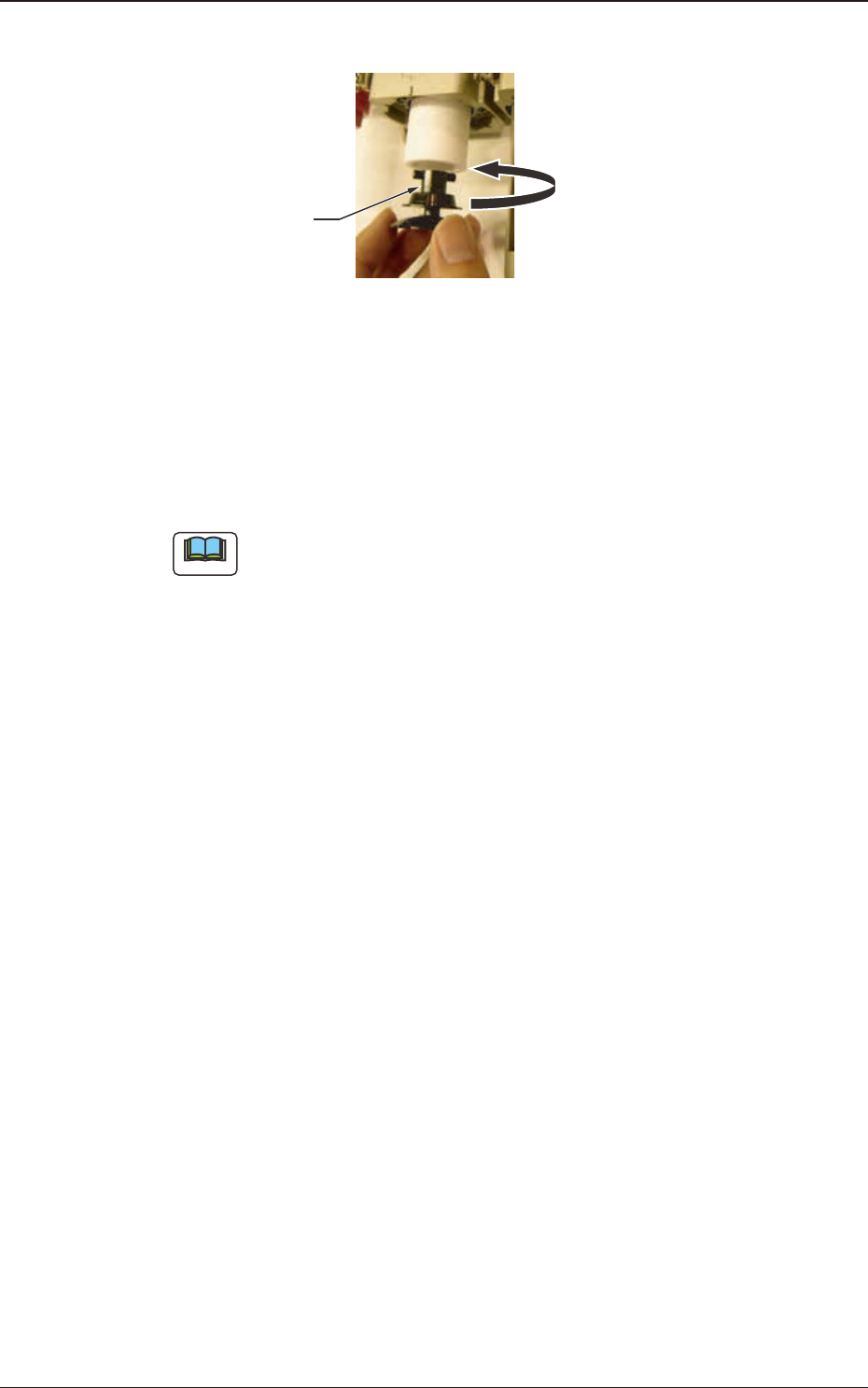

(2) While rotating the lter holder counterclockwise, pull it out.

Filter Holder

Fig. 4A4-7

(3) Pull out the lter and blow air to it for cleaning.

(4) Insert the lter back in place and turn the lter holder clockwise to attach.

(5) Attach the lter cover.

Note

When the lter has become defective, replace it with a new one.

1208-001

4.1 Air Source

4OM-1733

1-4-7

4.2 Vacuum System

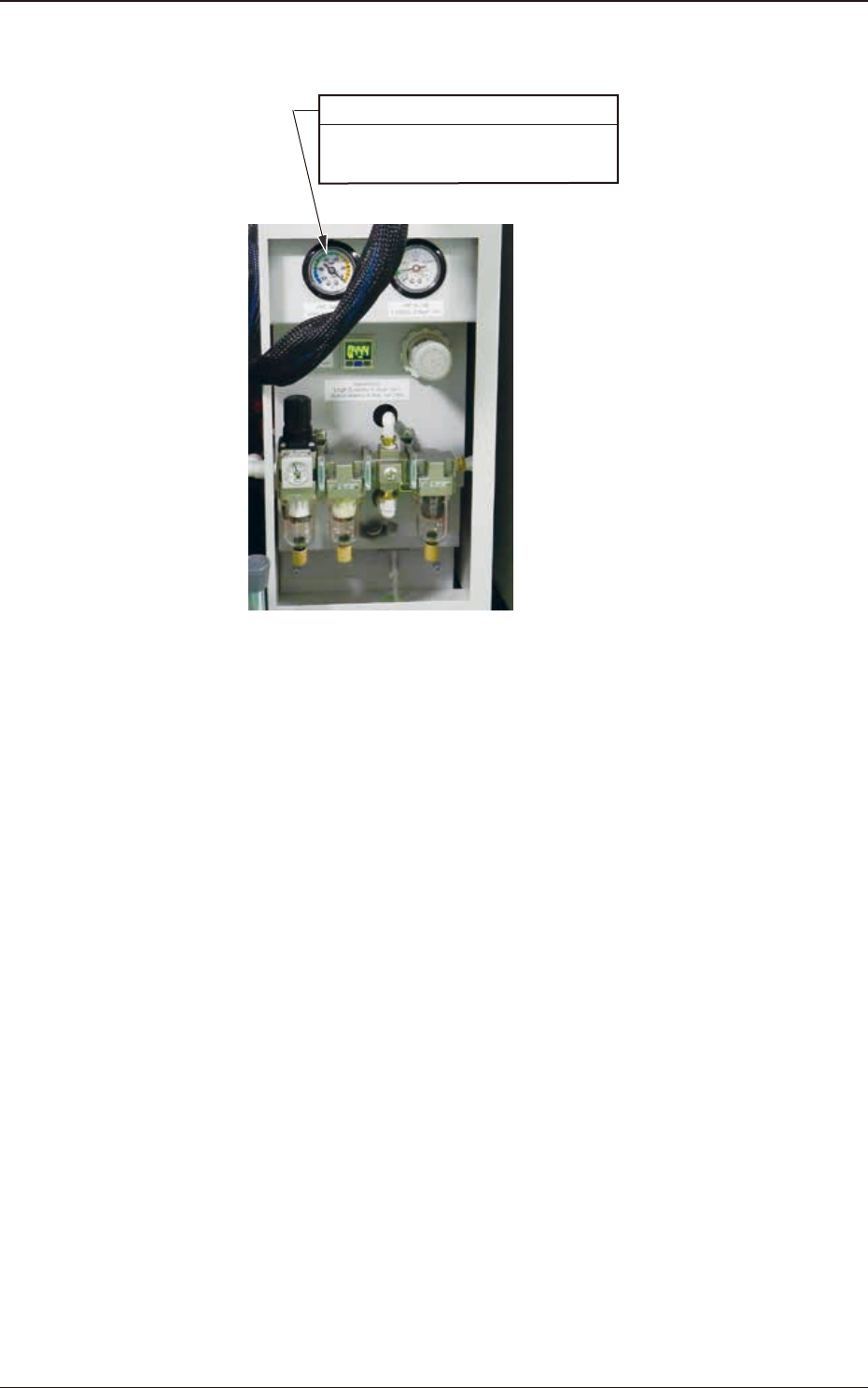

Vacuum Pressure

Every Day Inspection

Required Time: 1 minute

Fig. 4A4-8

1208-001

4.2 Vacuum System
