Safety Precautions Safe-18 1OM-1733 1208-003 5. Alert Labels Right Side of Machine (9) CAUTION Your hand might be caught in the moving section. Do not put your hand into the cover opening during the machine operation. Pa…
Safety Precautions
Safe-17
1OM-1733
1208-003
5. Alert Labels
(1)
(7)
(5)
(10)
(4)
(17)

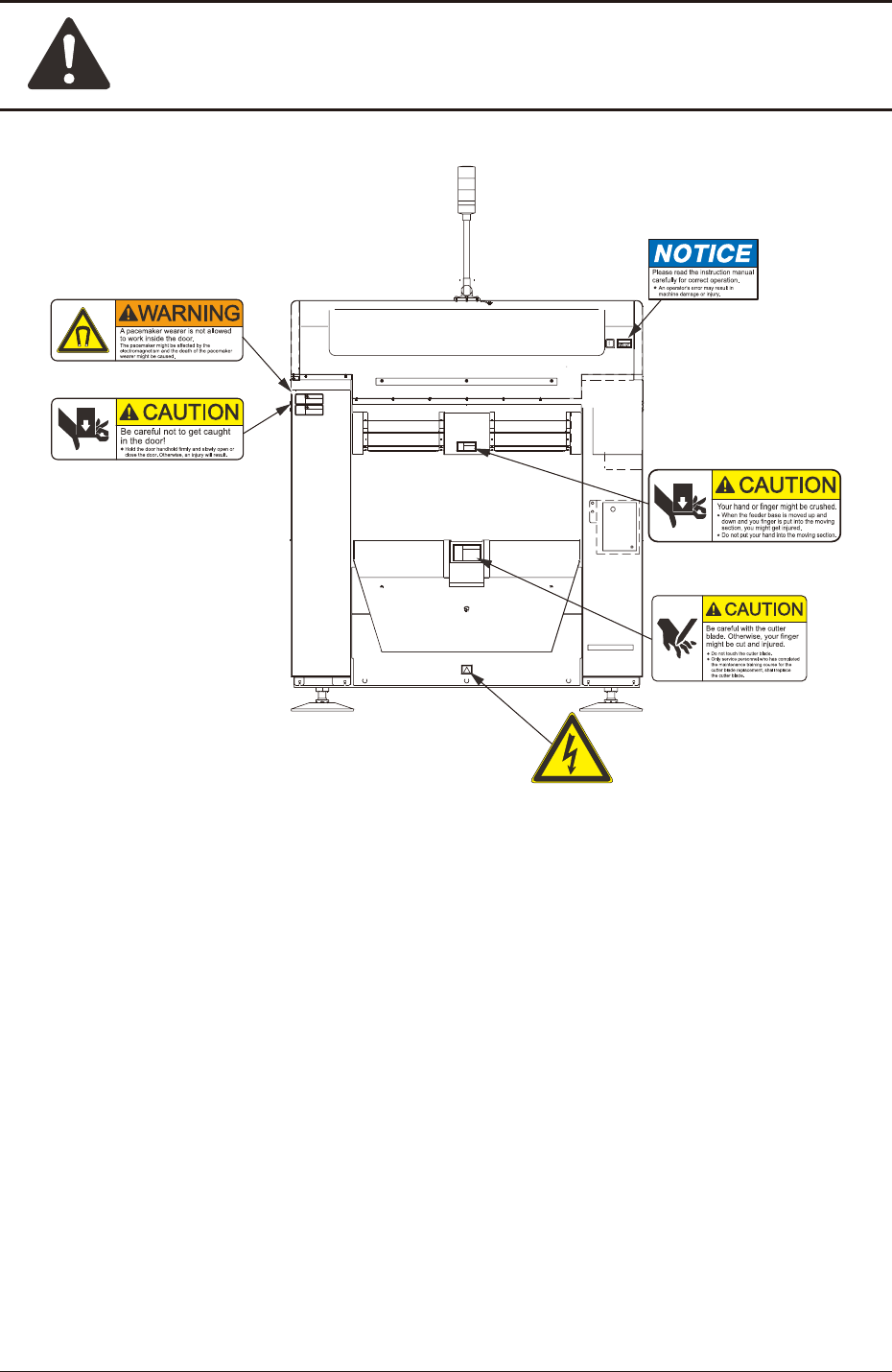

Rear Side of Machine
Fig. X2
Safety Precautions
Safe-18
1OM-1733
1208-003
5. Alert Labels
Right Side of Machine
(9)
CAUTION
Your hand might be caught in the moving section. Do not
put your hand into the cover opening during the machine
operation.
Pay attention to the moving
mechanisms!
Fig. X3
Left Side of Machine
(9)
CAUTION
Your hand might be caught in the moving section. Do not
put your hand into the cover opening during the machine
operation.
Pay attention to the moving
mechanisms!
Fig. X4
Safety Precautions
Safe-19
1OM-1733
1208-003
5. Alert Labels
T
T
R S
R S
Section View R-R Section View S-S
(11)
(11)
Fig. X5
