4OM-1733
1-4-22

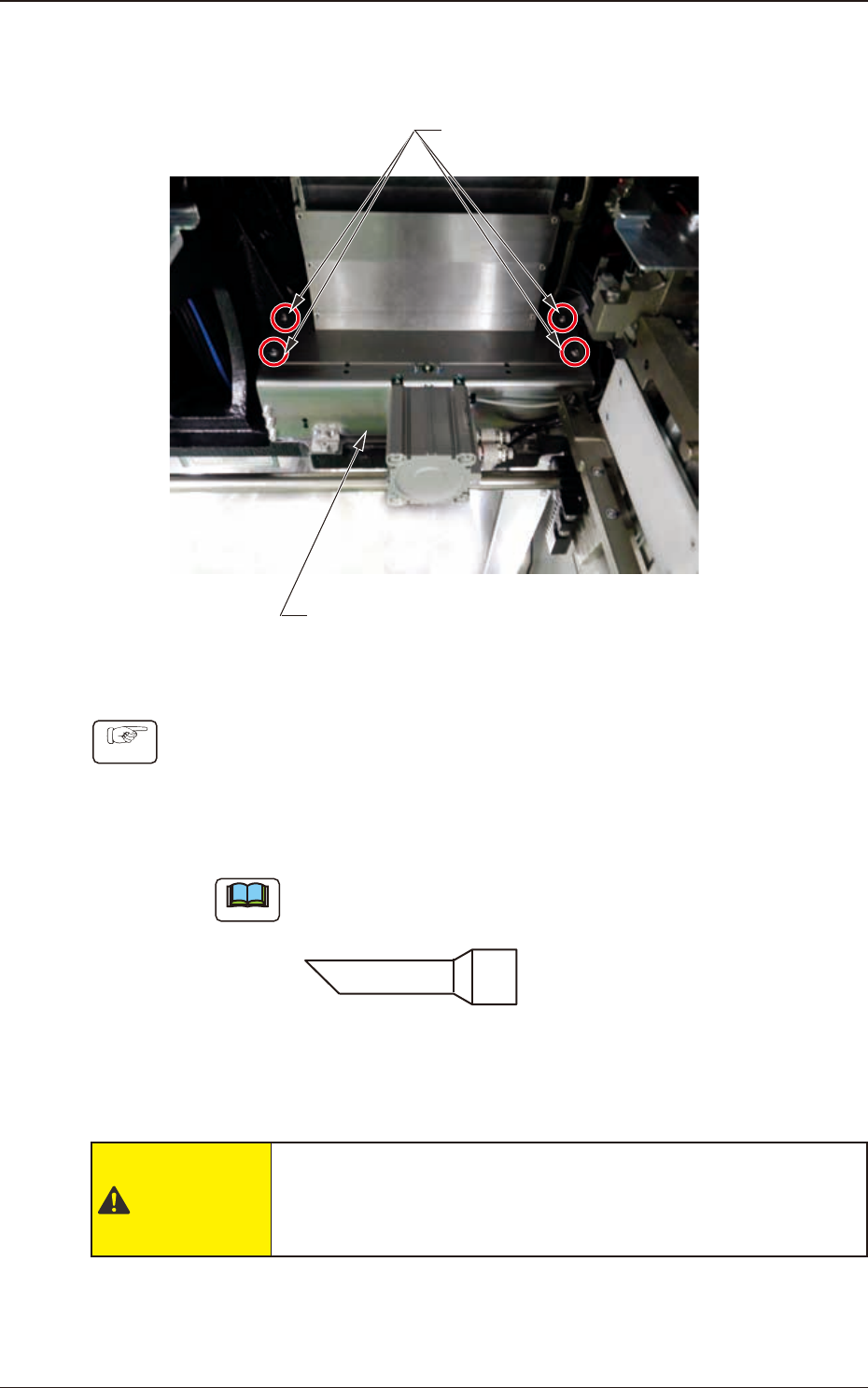

4.6.2 Cutter Unit Inside Oiling
Cycle : Every 3 Months (Required Time : 10 minutes)
Cutter Unit
Screw (4 Locations)
Fig. 4A4-28
Procedure
(1) Remove the front cover.
(2) Remove the cutter unit guide cover.
(3) Clean the debris and dust in the cutter unit using a vacuum cleaner.
Note
Use a vacuum cleaner with a narrow air opening in the nozzle.
Narrow Air Opening in Nozzle End
(Recommended)
Fig. 4A4-29
CAUTION
After making sure that the air supply has been stopped and the
cutter blades are closed, start maintenance.
During maintenance, do not touch the cutter blade.
1211-002
4.6 Cutter Section
4OM-1733
1-4-23
4.7 Head Section
High-Speed Head
Diffusion Plate
Every Month Cleaning
Required Time: 2 minutes
Linear Measure Sensors
(Light Emitter and Receiver)
Every Day Cleaning
Required Time: 5 minutes
Nozzle U/D Ball Screw (NL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Head U/D Ball Screw (HL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Head U/D Linear Guide (HL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Fig. 4A4-30
1403-005
4.7 Head Section
4OM-1733
1-4-24
Vacuum Filters (15 locations)
Every 3 Months Replacement
Required Time: 30 minutes
Nozzle Change Cam Face (Upper Side)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Center Spline
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 4 minutes
Cam Followers
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Fig. 4A4-31
1403-005
4.7 Head Section
