4OM-1733
1-4-12
4.3.2 Rejected Component Box Cleaning
Cycle : Every Day (Required Time: 1 minute)
Fiducial Mark Block
Component Storage Box
Standard Condition Condition where the Nozzle Stocker for
Middle Size Odd Shaped Nozzle (Option),
and Rejected Component Box (Option)
have been mounted onto the system
Fig. 4A4-15
Procedure
Remove components collected in the box.
NOTICE
Before removing the accumulated components from
the box, eliminate the static electricity from your
body.
Otherwise, some components may be damaged due
to static electricity.
Notice
Use a suction force (of a vacuum cleaner) for the cleaning.
Do not blow air to any cleaning section with an air gun.
When the air is blown, dirt or dust inside the machine will disperse,
causing a malfunction in the recognition or machine operation.
1403-005
4.3 Component Recognition Camera Section
4OM-1733
1-4-13
4.3.3 Fiducial Mark (Four Locations) Cleaning
Notice
Use a suction force (of a vacuum cleaner) for the cleaning.
Do not blow air to any cleaning section with an air gun.
When the air is blown, dirt or dust inside the machine will disperse,
causing a malfunction in the recognition or machine operation.
Cycle : Every Week (Required Time : 2 minutes)
Fiducial Marks
Teaching Plates
(2 locations)
QFP Glass Plate Jigs
(2 pcs.)
Fig. 4A4-16
Procedure
Wipe the upper surfaces of the ducial marks with a dry lens cleaning cloth.
Notice
(a) Sebum(ngerprint)oroilshouldnotadheretotheducialmarks.
If sebum or oil adheres, wipe it off with a lens cleaning cloth which
contains a small amount of alcohol.
(b) Becausetheducialmarkisonacoatinglm,handleitcarefullynot
to damage.
•
Teaching Plates (2 locations)
Cycle : Every Month (Required : 1 minute)
Procedure
Remove foreign substances and unrequired components and wipe off dirt
and dust with a rag.
•
QFP Glass Plate Jigs JG-0335, KYA-M3804-000 (2 pcs.)
Cycle : Every Month (Required : 1 minute)
Procedure
Wipe the jigs with a dry lens cleaning cloth.
Notice
Sebum(ngerprint)oroilshouldnotadheretotheQFPglass
plate jigs. If sebum or oil adheres, wipe it off with a lens cleaning
cloth which contains a small amount of alcohol.
1403-005
4.3 Component Recognition Camera Section
4OM-1733
1-4-14

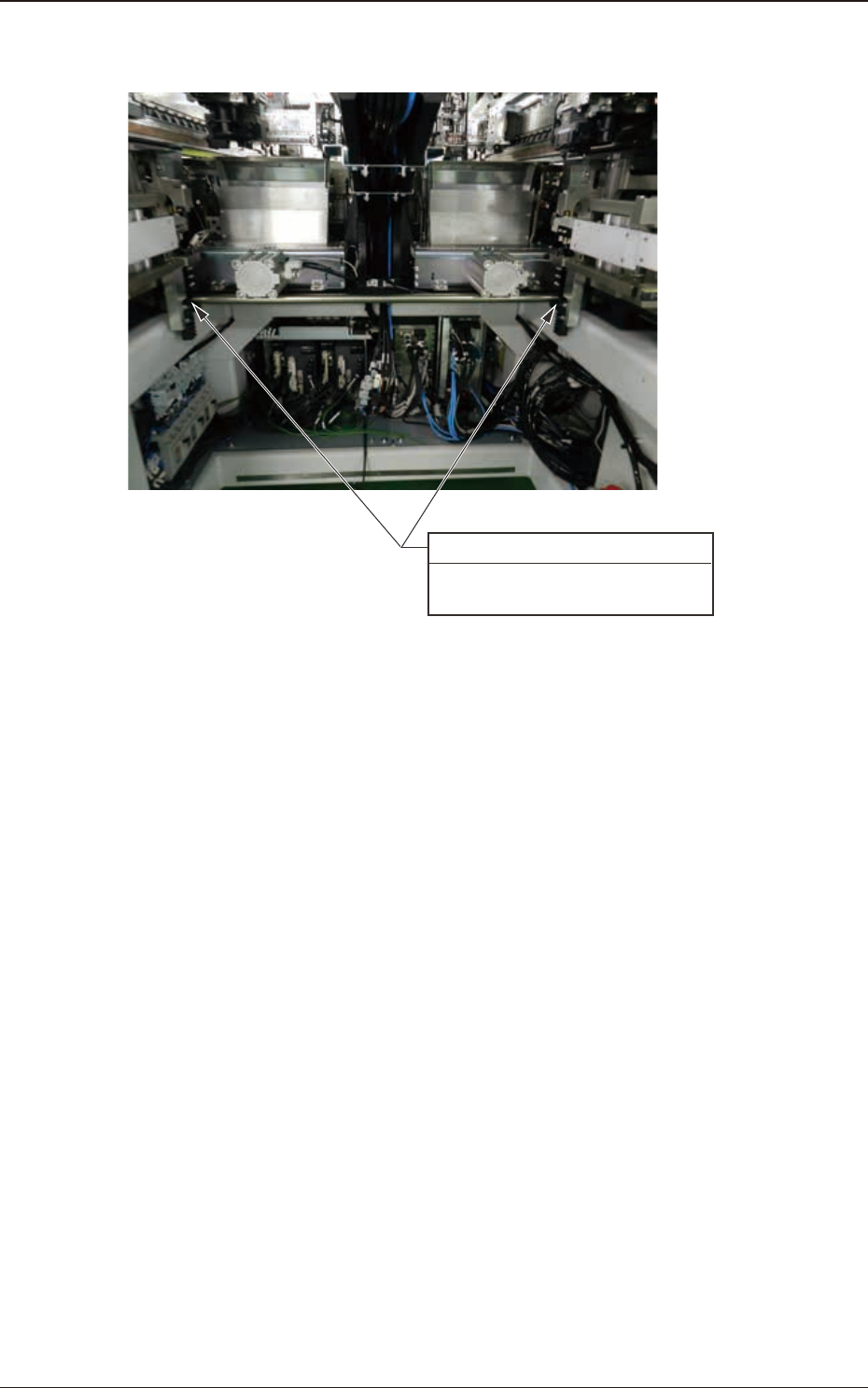

4.4 Feeder Base Driving Section
Worm Gear (2 locations)
Every 3 Months Lubrications
Required Time : 2 minutes
Fig. 4A4-17
1211-002
