4OM-1733
1-4-29
4.7.4 Center Spline Oiling
Cycle : Every 3 Months (Required Time : 4 minutes)
Grease : DAPHNE EPONEX GREASE No.1
Center Spline
Fig. 4A4-37
Procedure
Apply grease to the groove of the center spline with a syringe.
Note
Use No. 19 (brown) nozzle.
No.19
Fig. 4A4-38
1211-002
4.7 Head Section
4OM-1733
1-4-30

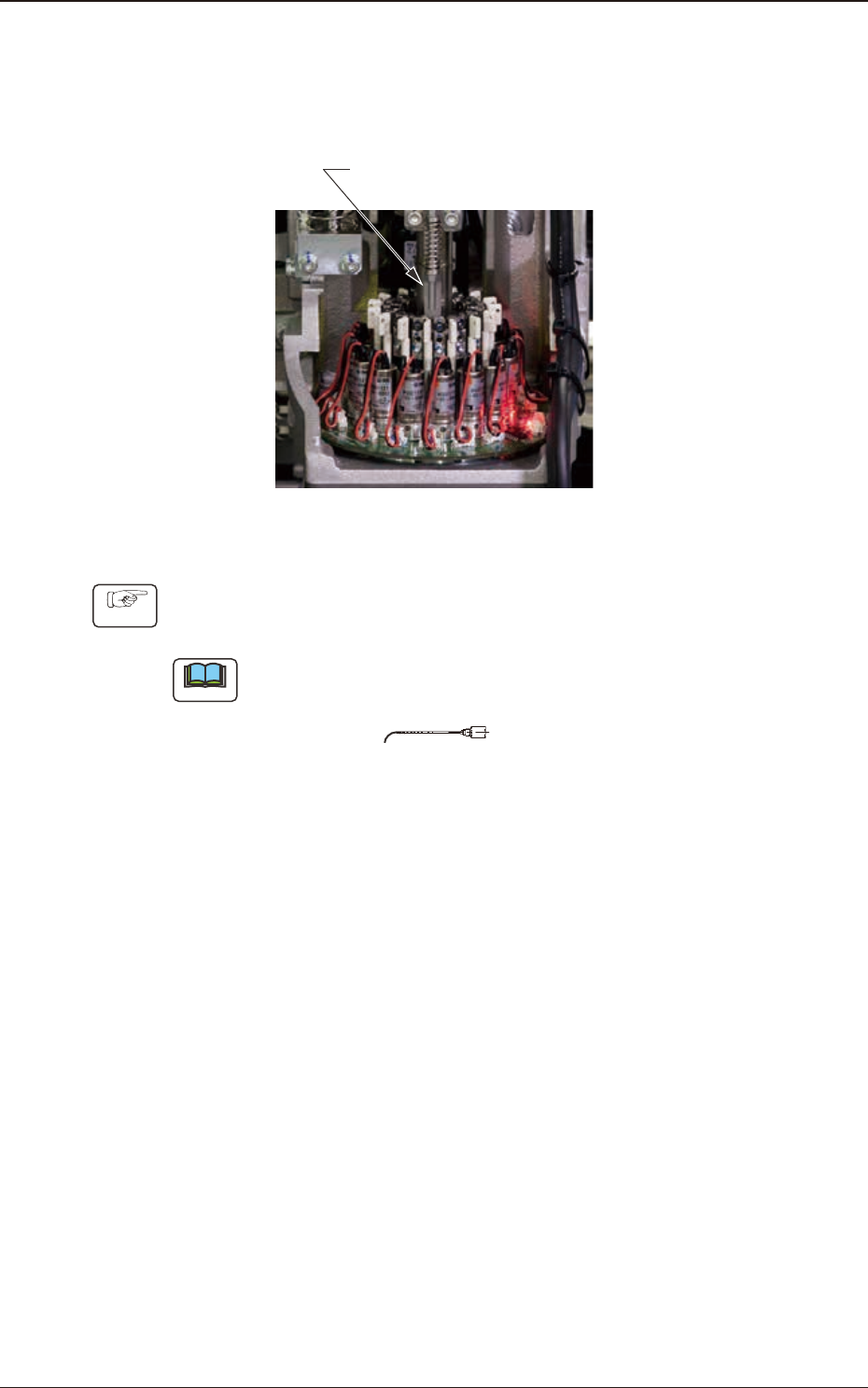

4.7.5 Cam Follower Cleaning and Oiling
Cycle : Every 3 Months (Required Time : 5 minutes)
Grease : DAPHNE EPONEX GREASE No.1
Cam Followers
Fig. 4A4-39
Procedure
(1) If foreign substances adhere to the cam followers, remove them with a pair
of tweezers.
(2) Apply grease (0.01 cc) to the upper side of the cam face with a syringe.
Note
(a) "0.01 cc" is almost equivalent to the size of "1005 Chip".
(b) Use No. 19 (brown) nozzle.
No.19
Fig. 4A4-40
1211-002
4.7 Head Section
4OM-1733
1-4-31

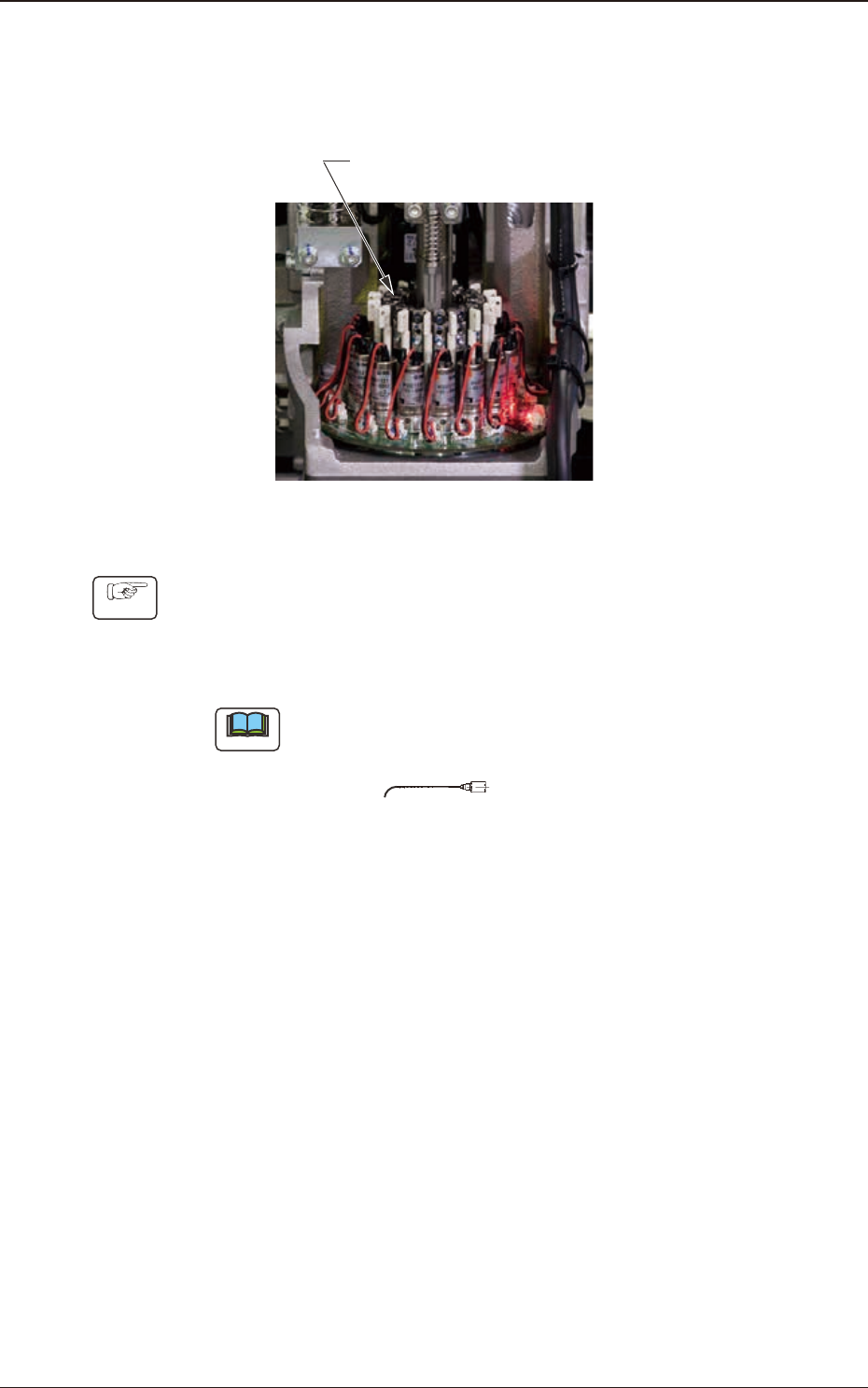

4.7.6 Nozzle Change Cam Surface (Upper) Cleaning and Oiling
Cycle : Every 3 Months (Required Time : 5 minutes)
Grease : DAPHNE EPONEX GREASE No.1
Nozzle Change Cam Face
Fig. 4A4-41
Procedure
(1) If a foreign substance adheres to the cam face, remove it with a pair of
tweezers.
(2) Apply grease (0.01 cc) to the upper side of the cam face with a syringe.
Note
(a) "0.01 cc" is almost equivalent to the size of "1005 Chip".
(b) Use No. 19 (brown) nozzle.
No.19
Fig. 4A4-42
1208-001
4.7 Head Section
