4OM-1733 1-4-38 4.8.2 X-axis Linear Guide Cleaning and Oiling Cycle : Every 3 Months (Required Time : 5 minutes) Grease : DAPHNE EPONEX GREASE No.1 X-Axis Linear Guides Slider Fig. 4A4-49 Procedure (1) Wipe old grease ou…

4OM-1733

1-4-37

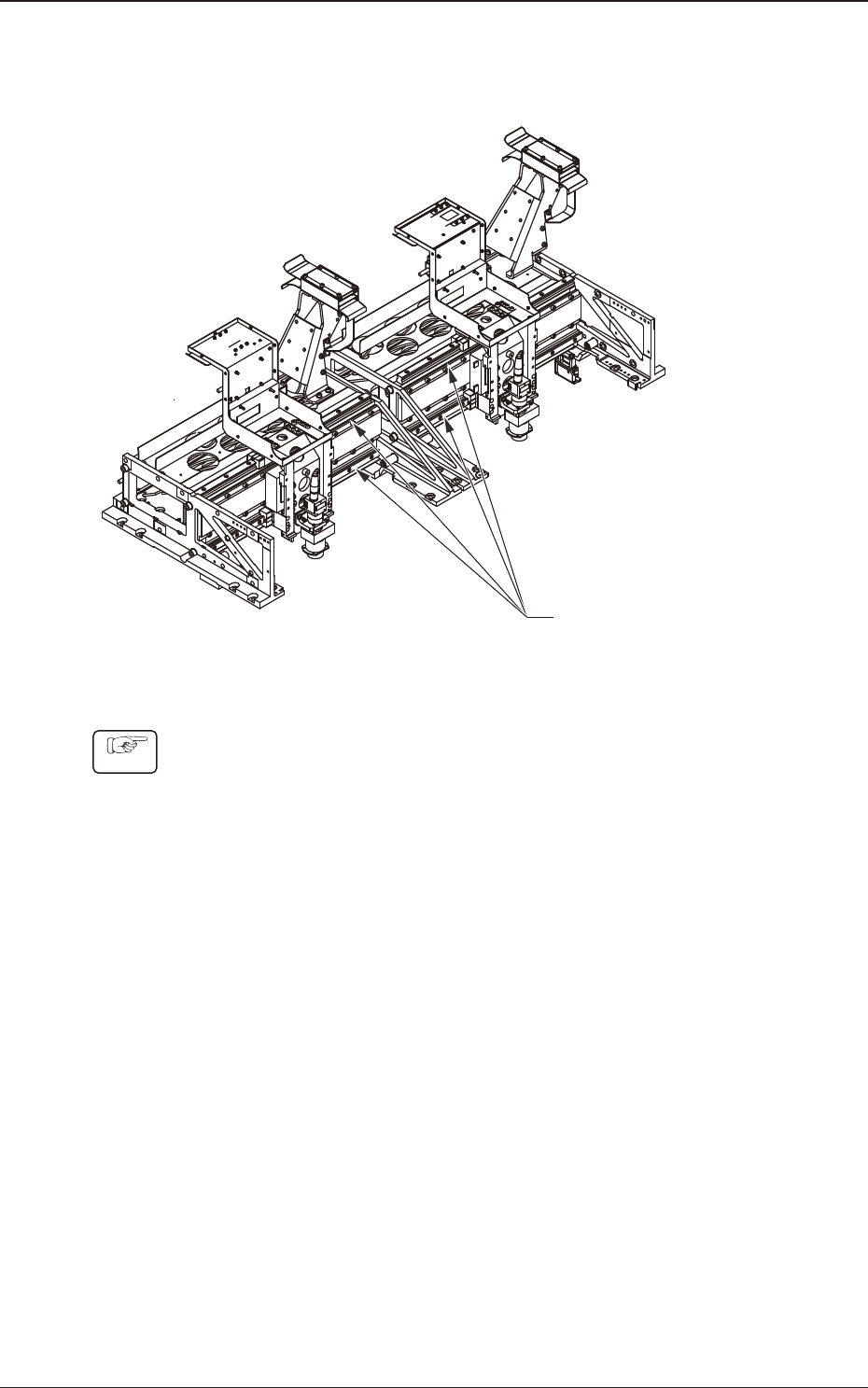

4.8.1 X-axis Linear Guide Check

Cycle : Every Day (Required Time : 1 minute)

X-Axis Linear Guides

Fig. 4A4-48

Procedure

Check it visually that no alien substance has been dropped. If any alien substance

has been dropped, remove it.

1211-002

4.8 X/Y Beam Section

4OM-1733

1-4-38

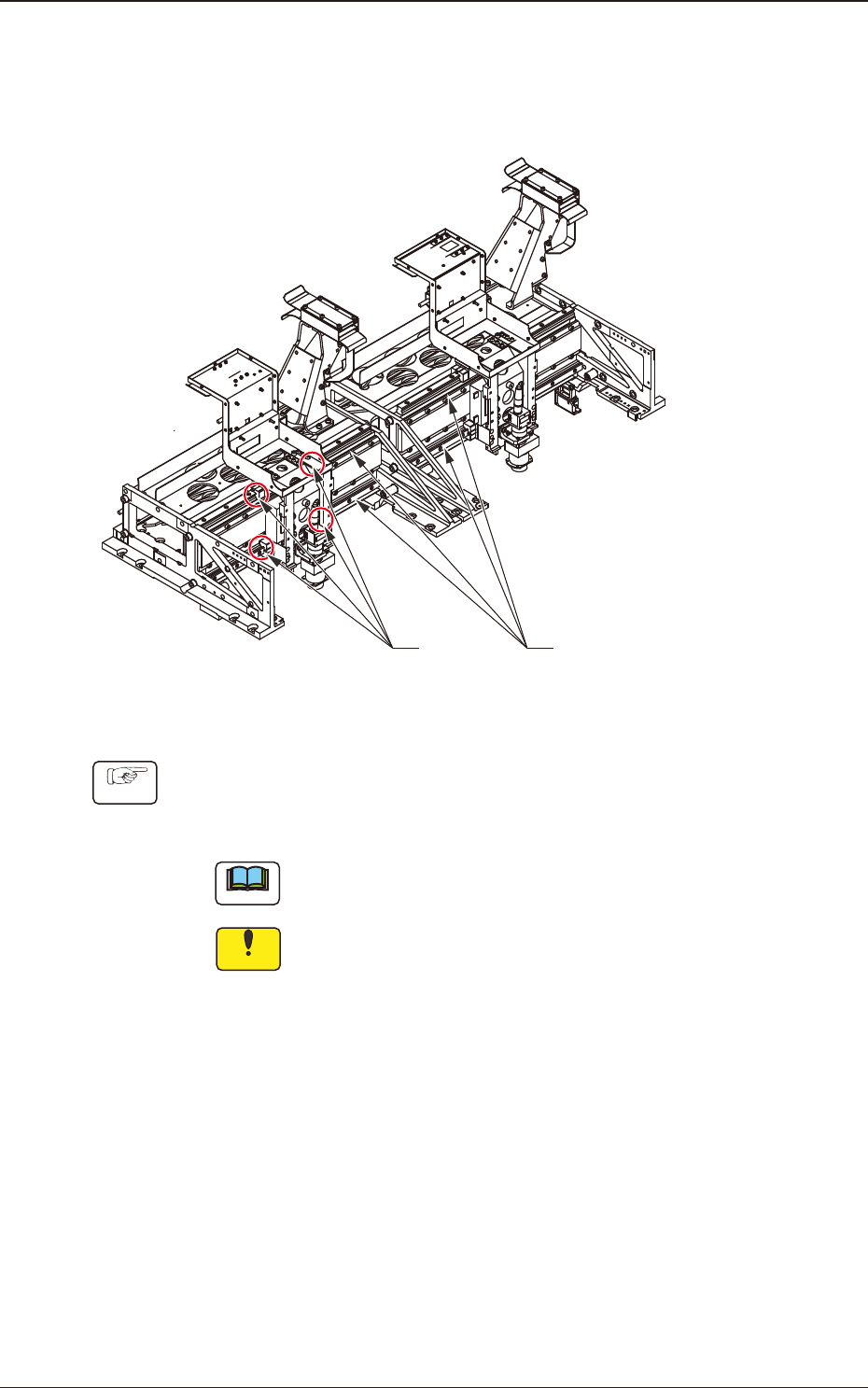

4.8.2 X-axis Linear Guide Cleaning and Oiling

Cycle : Every 3 Months (Required Time : 5 minutes)

Grease : DAPHNE EPONEX GREASE No.1

X-Axis Linear GuidesSlider

Fig. 4A4-49

Procedure

(1) Wipe old grease out using a rag.

(2) Apply new grease from the grease nipple using the hand grease gun.

Note

Grease should be applied every 3 months after the initial month.

Notice

Take ample care not to leave any waste threads after cleaning.

1211-002

4.8 X/Y Beam Section

4OM-1733

1-4-39

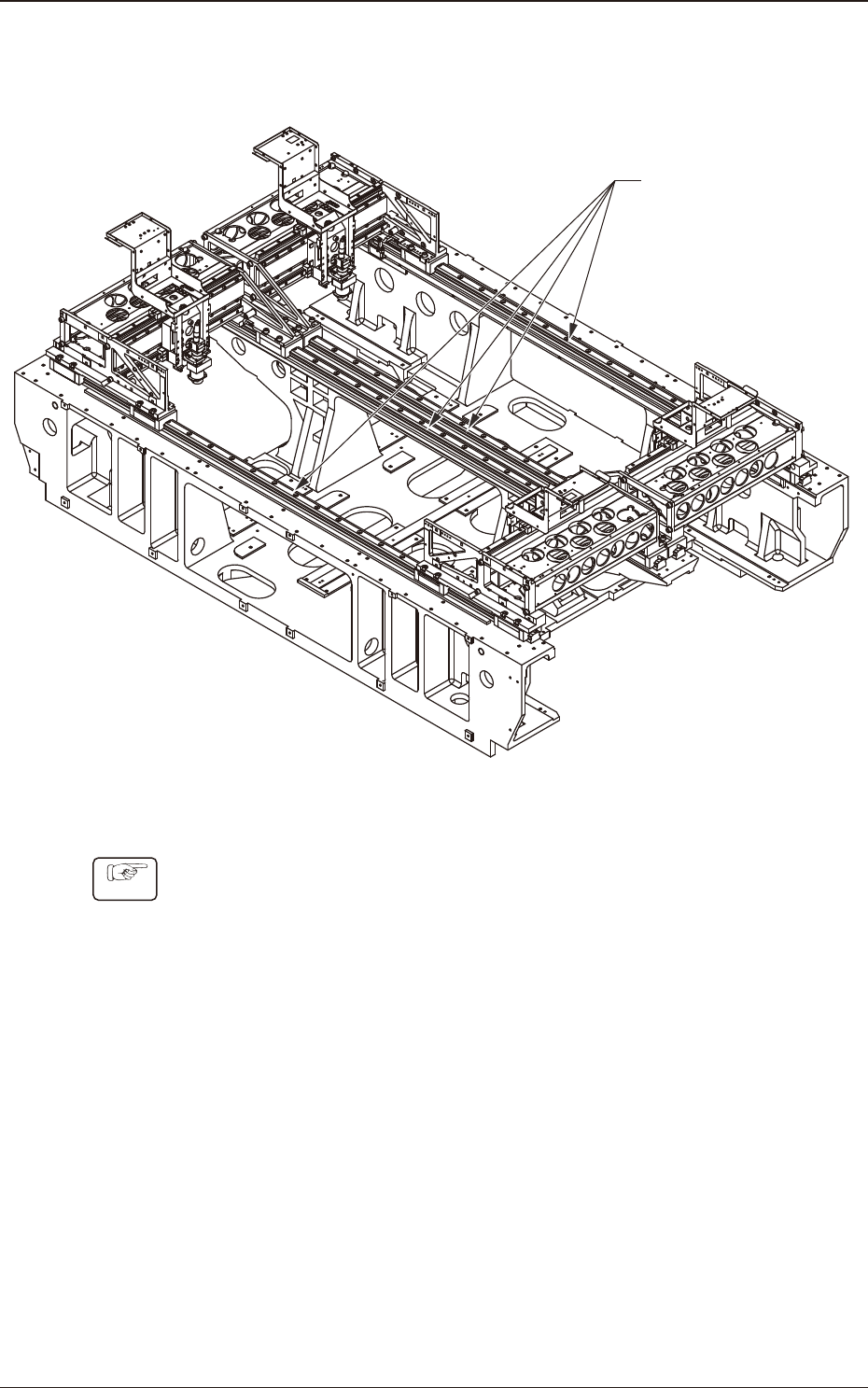

4.8.3 Y-axis Linear Guide Check

Cycle : Every Day (Required Time : 1 minute)

Y-Axis Linear Guides

Fig. 4A4-50

Procedure

Check it visually that no alien substance has been dropped. If any alien substance

has been dropped, remove it.

1211-002

4.8 X/Y Beam Section
