Safety Precautions Safe-19 1OM-1733 1208-003 5. Alert Labels T T R S R S Section View R-R Section View S-S (11) (11) Fig. X5
Safety Precautions
Safe-18
1OM-1733
1208-003
5. Alert Labels
Right Side of Machine
(9)
CAUTION
Your hand might be caught in the moving section. Do not
put your hand into the cover opening during the machine
operation.
Pay attention to the moving
mechanisms!
Fig. X3
Left Side of Machine
(9)
CAUTION
Your hand might be caught in the moving section. Do not
put your hand into the cover opening during the machine
operation.
Pay attention to the moving
mechanisms!
Fig. X4
Safety Precautions
Safe-19
1OM-1733
1208-003

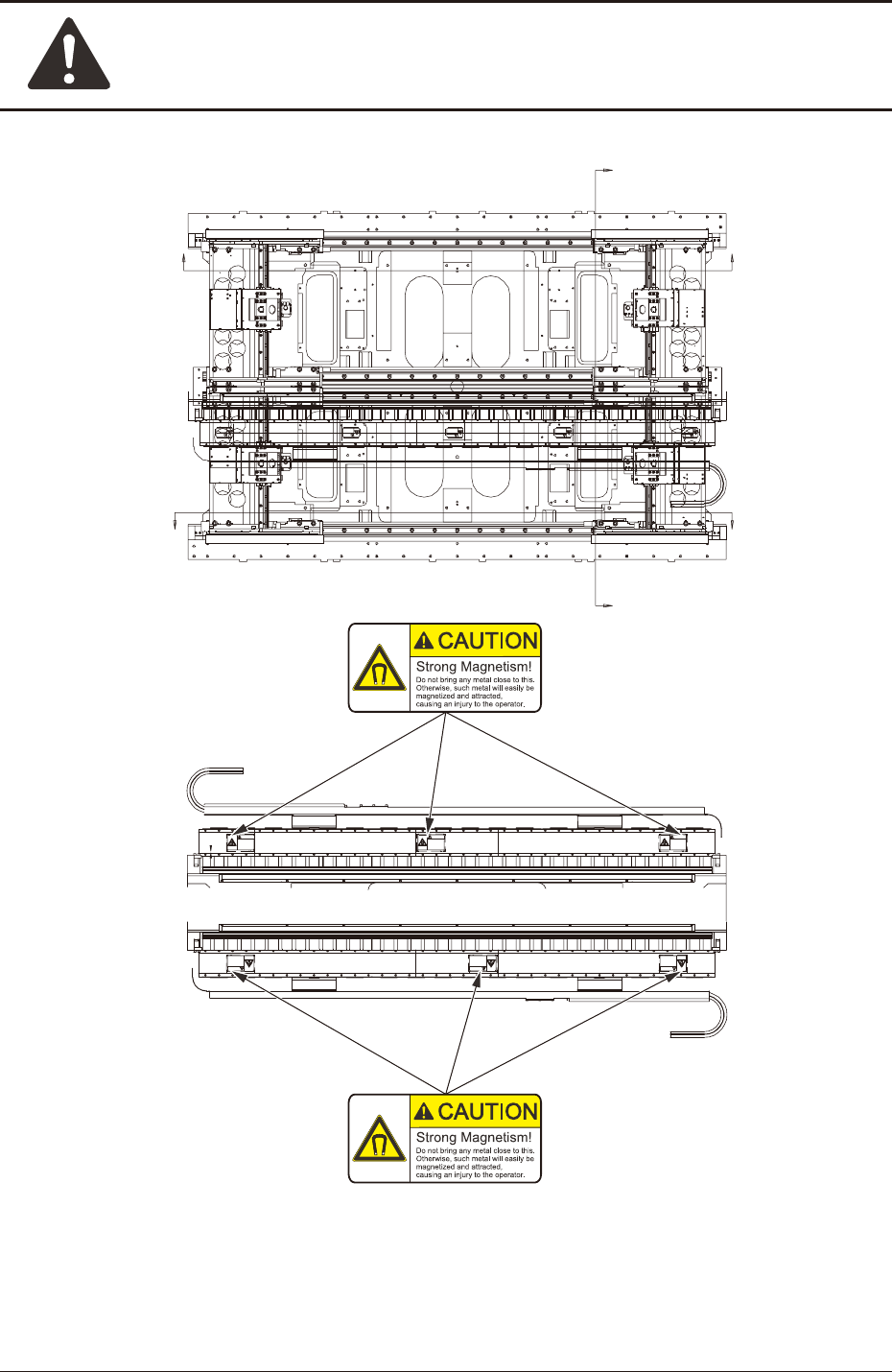

5. Alert Labels
T
T
R S
R S
Section View R-R Section View S-S
(11)
(11)
Fig. X5
Safety Precautions
Safe-20
1OM-1733
1208-001
5. Alert Labels
Rear Side of Machine
(18)
(19)
(18)
(19)
Do not touch your hand
onto the head block.
Do not touch your hand
onto the head block.
Push here when performing maintenance. Push here when performing maintenance.
Fig. X6
Front Side of Machine
(18)
(19)
(18)
(19)
Do not touch your hand
onto the head block.
Do not touch your hand
onto the head block.
Push here when performing maintenance. Push here when performing maintenance.
Fig. X7
