4OM-1733 1-1-6 Speciedlubricationtools (1) Brush Use a brush whose bristles do not come off if possible. Notice Do not use a brush for ball screws and splines. (2) Vinyl Gloves Use a pair of vinyl gloves to apply grea…
4OM-1733
1-1-5
1.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
Note
Upper part numbers in the below table are YAMAHA part numbers, lower ones
are HITACH equivalents.
SpeciedGreases
•
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
•
MOLYNOC GREASE AP1 (JX Nippon Oil & Energy)
•
BARRIERTA IEL/V (NOK Klueber CO.,Ltd.)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and oil
will decrease.
Same Types of Lubricants
•
Grease Types equivalent to DAPHNE EPONEX GREASE No. 1
(IDEMITSU KOSAN)
Table 4A1-1
Grease Names Makers
Alvania Grease No. 1 Showa Shell Sekiyu K.K
Multinoc Grease 1 JX Nippon Oil & Energy
Jomo Lisonix Grease No. 1 JX Nippon Oil & Energy
Dynamax No. 1 COSMO OIL LUBRICANTS
Lithtan 1 Exxon Mobil Corporation
MP Grease No. 1 KYGNUS
Gemico MP-1 Tonen General Sekiyu K.K
Multemp PS1 KYODOH YUSHI CO., LTD.
•
Grease Types equivalent to MOLYNOC GREASE AP1
(JX Nippon Oil & Energy)
Table 4A1-2
Grease Names Makers
DAPHINE Grease M No. 1 Idemitsu Kosan Co., Ltd.
Jomo Lisonix Grease M No. 1 JX Nippon Oil & Energy
COSMO MOLYBDEN GREASE
No. 1
COSMO OIL LUBRICANTS
BEACON Q2 Exxon Mobil Corporation
Gemico MD2 Tonen General Sekiyu K.K
M5 GREASE 1 KYGNUS
1208-002
1.2 Preparation for Maintenance
4OM-1733
1-1-6

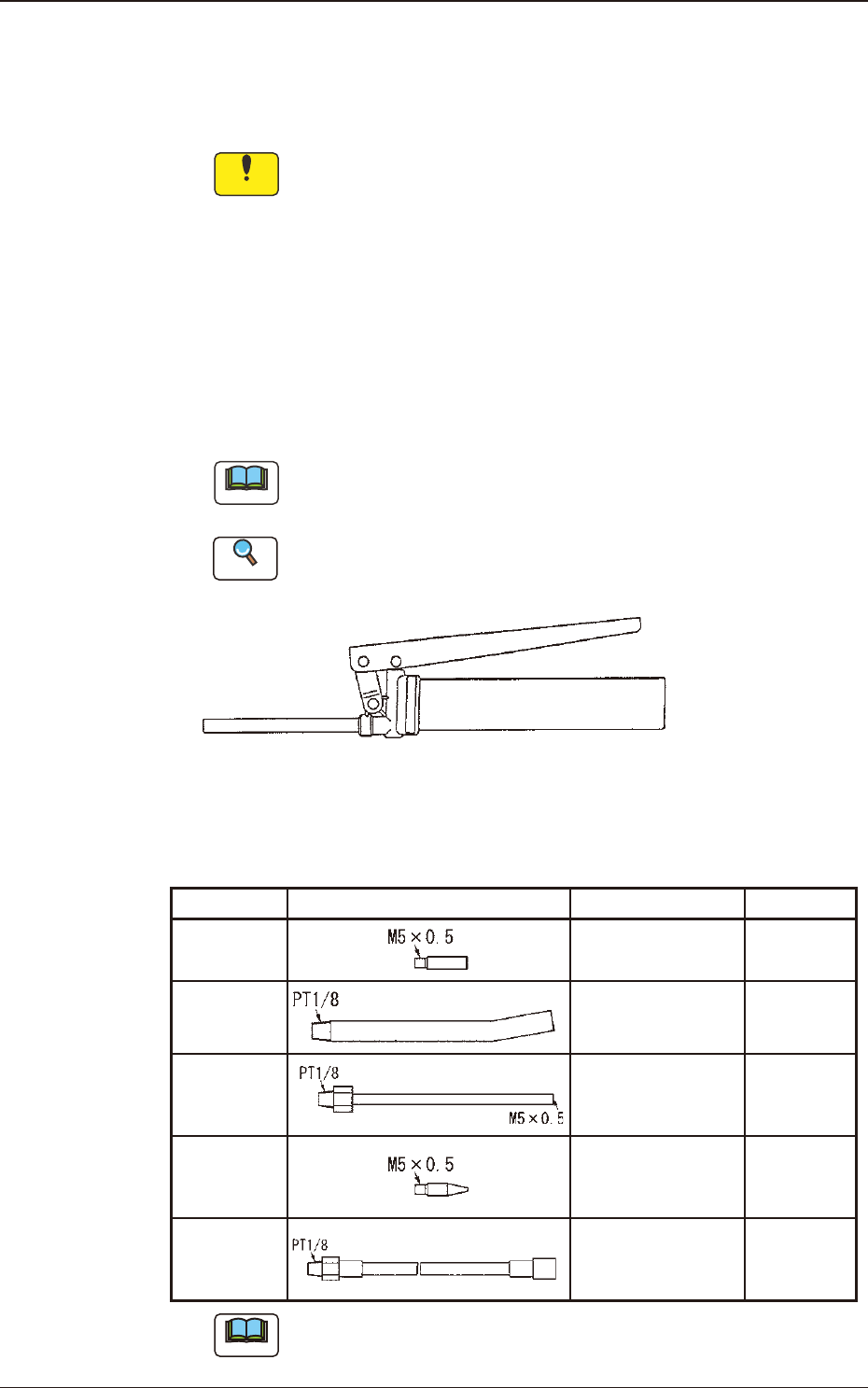

Speciedlubricationtools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(3) Hand Grease Gun
Standard
: KH-120
Part No.
: KYB-M382J-00 (228A0022)
Maker
: Yamada Corporation
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.
Fig. 4A1-4
•
Attachment for Hand Grease Gun KH-120
Table 4A1-3
Standard Shape Part No. Remarks
Type N
KYB-M382A-00
216M0440
THK
Type H
KYB-M3829-00
216M0439
THK
Type U
KYB-M3828-00
216M0438
THK
Type P
KYB-M3813-00
0920H11Q
THK
SPK-3C
KYB-M382H-00
228A0021
Yamada
Corporation
Note
It is not attached to the machine. Purchase it separately if necessary.
1208-002
1.2 Preparation for Maintenance
4OM-1733
1-1-7

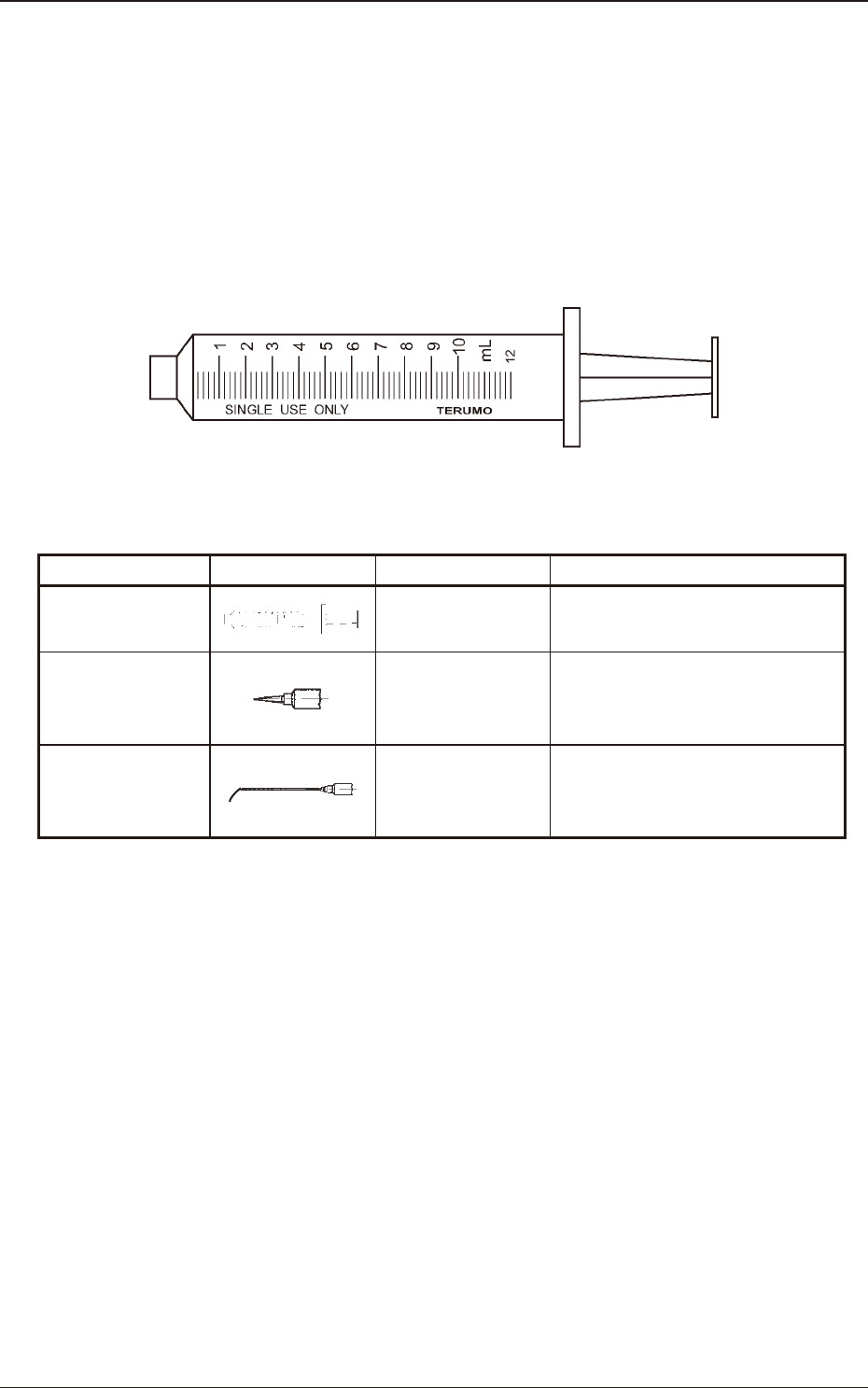

(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
Fig. 4A1-5
Table 4A1-4
Standard Shape Part No. Remarks
Syringe
KYB-M382K-00
228A0171
Maker : TERUMO
10ml SS-10-LZ
Nozzle No.18
(Color : Green)
---
216G0451
Maker : SAN-EI TECH
Inside Diameter :
f
0.84
Tapered Nozzle #5118TT-B
Nozzle No.19
(Color : Brown)
KYB-M380X-00
0916D108
Maker : NIPRO
Inside Diameter :
f
0.79
Length : 65 mm Flat End
1208-002
1.2 Preparation for Maintenance
