4OM-1733 1-4-4 4.1.3 Drain Check Cycle : Every Week (Required Time : 5 minutes) Cap Drain Fig. 4A4-4 Procedure Prepare a container and pull down the black cap each on the lter case lower section to drain. 1208-001 4.1 A…
4OM-1733
1-4-3

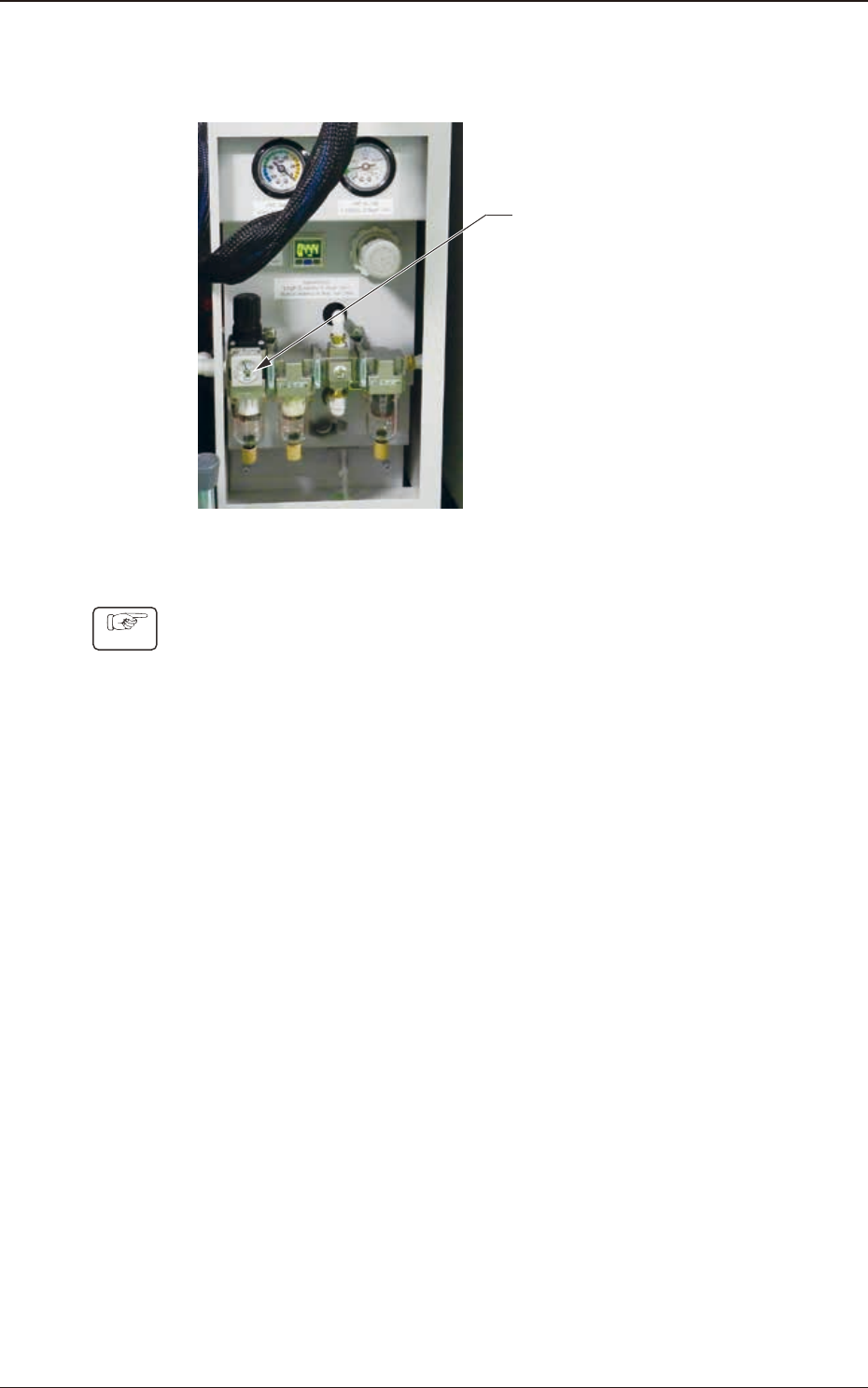

4.1.2 Main Air Pressure Check
Cycle : Every Day (Required Time : 1 minute)
Main Air Pressure
Fig. 4A4-3
Procedure
Set Air Pressure 0.45 MPa (4.6 kgf/cm
2
) Check to see that the air pressure is "Min.
0.4 MPa (4.1 kgf/cm
2
)" while the machine is running.
If not, adjust the air pressure.
1208-001
4.1 Air Source
4OM-1733
1-4-4
4.1.3 Drain Check
Cycle : Every Week (Required Time : 5 minutes)
Cap
Drain
Fig. 4A4-4
Procedure
Prepare a container and pull down the black cap each on the lter case lower
section to drain.
1208-001
4.1 Air Source
4OM-1733
1-4-5
4.1.4 Filter Cleaning
Cycle : Every 3 Months (Required Time : 5 minutes)
Filter
Fig. 4A4-5
Procedure
(1) Turn the cover unit in the direction shown in the gure, using the air-lter
case removing jig to remove the cover.
Fig. 4A4-6
1208-001
4.1 Air Source
