5.5 Cleaning of high-speed nozzle hole part with pin gauge

•

Method of cleaning high-speed nozzle hole

Procedure

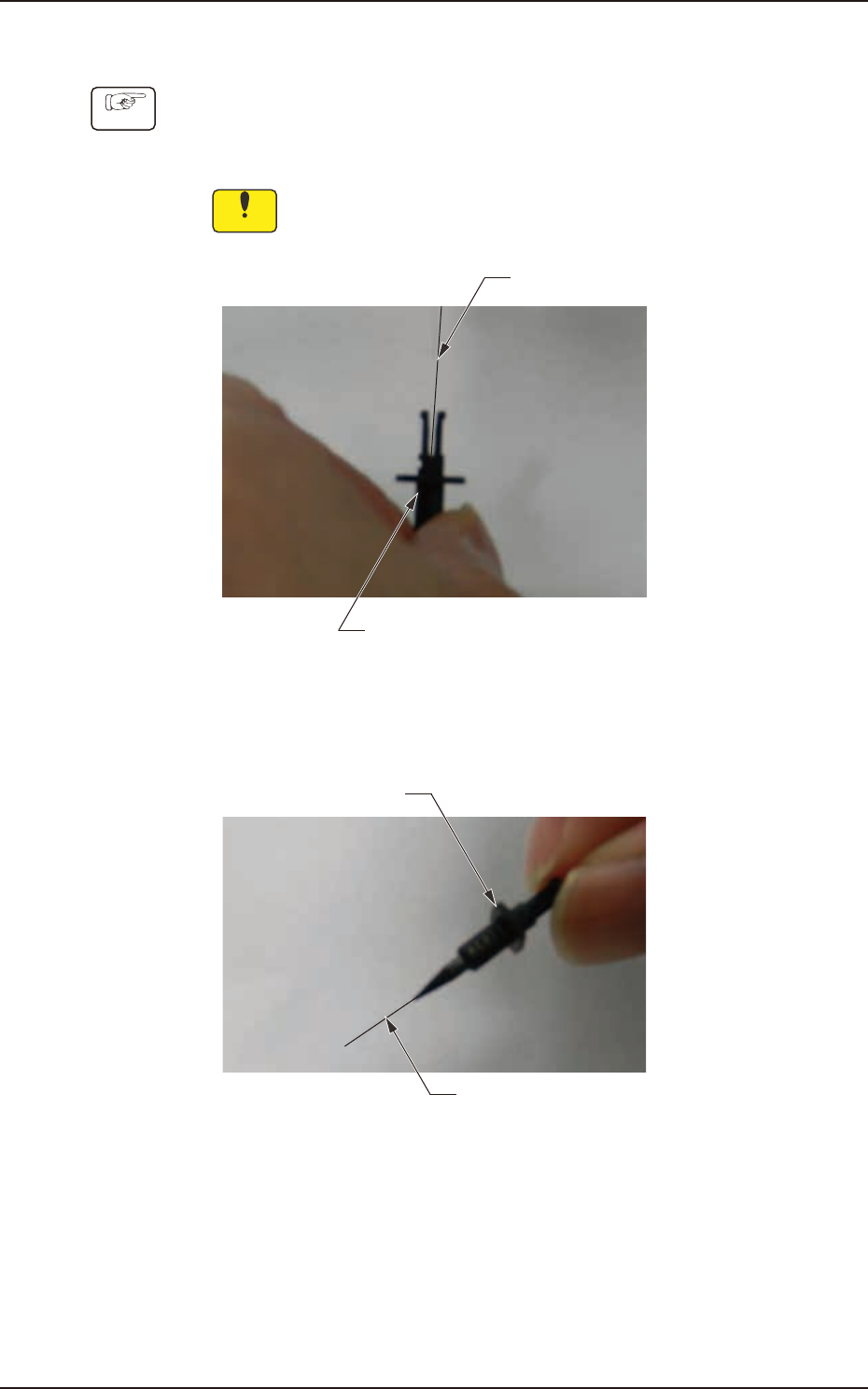

(1) Firmly have the high-speed nozzle as shown in the following photograph

and insert it while matching a pin gauge center axis to a center axis of

a high-speed nozzle.

Notice

When a center axis shifts, the head might be damaged.

Pin gauge

High-speed nozzle

Fig. 4A5-5

(2) Put out the pin gauge from the head of the high-speed nozzle.

High-speed nozzle

Pin gauge

Fig. 4A5-6

4OM-1733

1-5-8

1208-001

5.5 Cleaning of high-speed nozzle hole part with pin gauge

(3) Move the pin gauge to the direction of the length hand of pick-up hole and

remove the internal clog.

Pin gauge

High-speed nozzle

Fig. 4A5-7

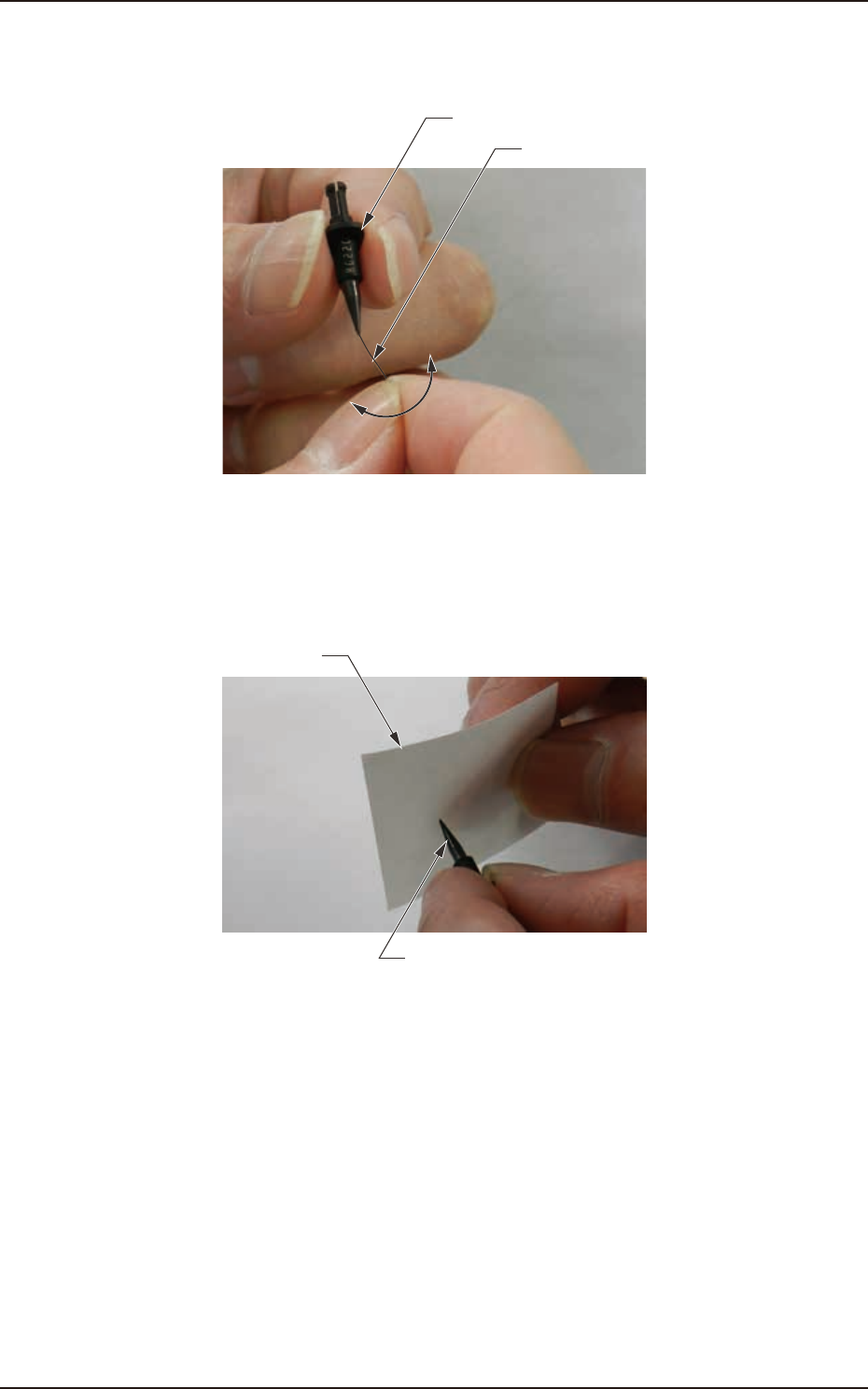

(4) Blow air and blow away removed dirt (Stick and remove the ne dirts of the

high-speed nozzle head by the masking tape).

High-speed nozzle

Masking tape

Fig. 4A5-8

4OM-1733

1-5-9

1211-002

5.6 Nozzle Filter Insertion Procedure

•

For High-Speed Nozzle

Procedure

(1) Set the nozzle lter in the hole section.

Filter

Fig. 4A5-9

(2) Set the nozzle on the hole section shown in the gure.

Note

Make sure that the nozzle orientation is correct.

Nozzle

Setting Position (Hole Section)

Fig. 4A5-10
