4OM-1733 1-6-1 1208-001 6. Use Procedure of Diffusion Plate Setup Jig 6. Use Procedure of Dif fusion Plate Setup Jig Procedure (1) Set the both inner and outer diffusion plates temporarily . Outer Diffusion Plate Inner D…

4OM-1733

1-5-12

1211-001

4OM-1733

1-6-1

1208-001

6. Use Procedure of Diffusion Plate Setup Jig

Procedure

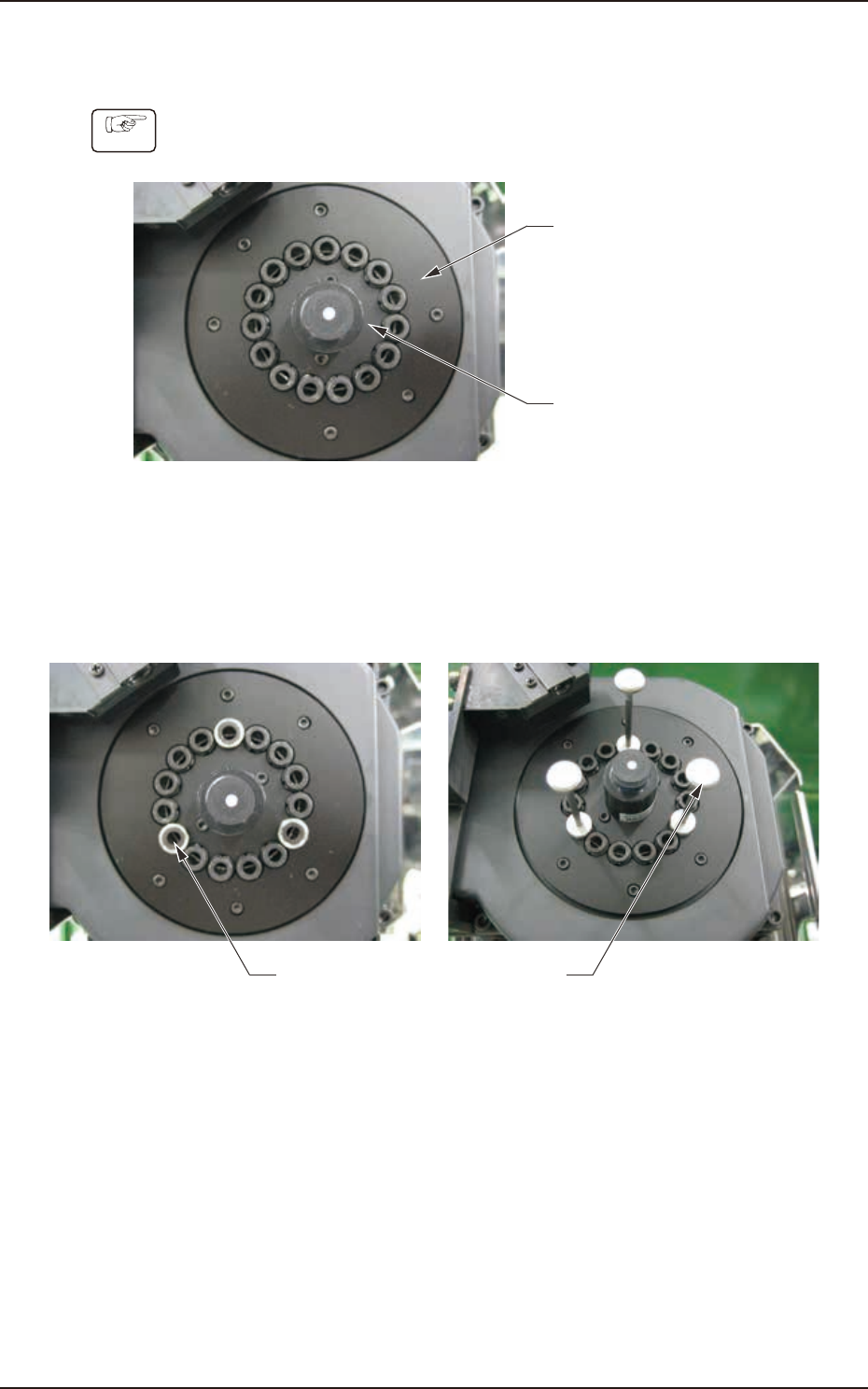

(1) Set the both inner and outer diffusion plates temporarily.

Outer Diffusion Plate

Inner Diffusion Plate

Fig. 4A6-1

(2) Attach the Jigs No. 1 and No. 2 onto the three locations as shown in the

gure.

Take care not to damage the linear measure sensor.

Jig 1 Jig 2

Fig. 4A6-2

4OM-1733

1-6-2

1208-001

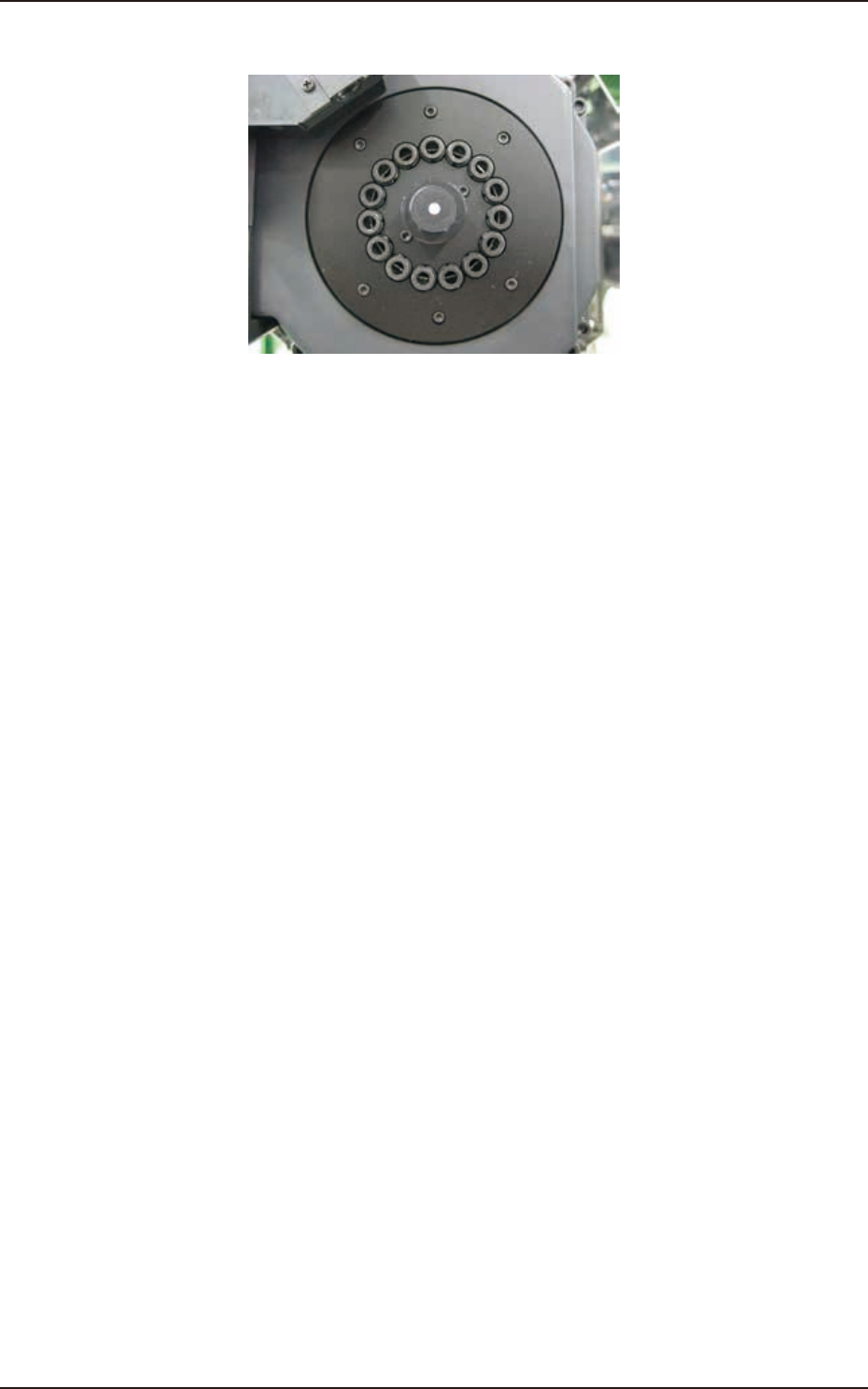

(3) After xing the diffusion plates using bolts, remove the jigs No. 1 and No. 2.

Fig. 4A6-3

6. Use Procedure of Diffusion Plate Setup Jig
