4OM-1733 1-4-47 4.10 Conveyor Section Linear Guides (3 locations) Every 3 Months Cleaning and Lubrication (DAPHNE EPONEX GREASE No. 1) Required Time: 5 minutes Support Pin Detection Sensors (2 locations) Every Week Clean…

4OM-1733

1-4-461403-004

4.9 PCB Positioning Section

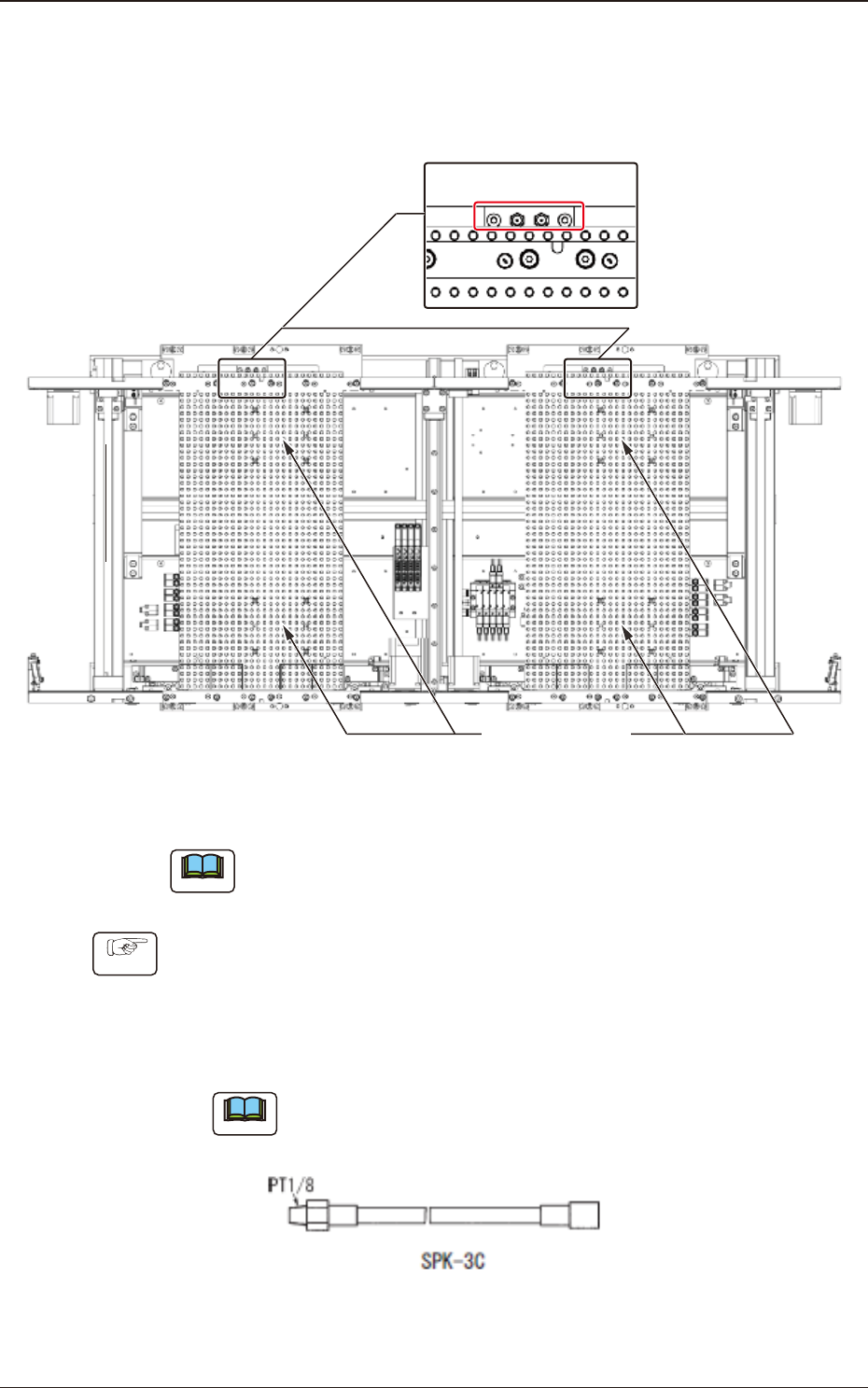

4.9.3 Ball Screw Spline Cleaning and Oiling

Cycle : Every 6 Months (Required Time : 10 minutes)

Grease : DAPHNE EPONEX GREASE No.1

Grease Nipple

Ball Screw Spline

(Under side of Backup Table)

Fig. 4A4-57-1 Y510 mm Single Transfer Unit (Option)

Note

This optional unit can be selected when the system is delivered from the factory.

Procedure

(1) Wipe out old great using a cloth.

Do not leave any ber on it.

(2) Attach the micro hose onto the hand grease gun and apply new grease from

the grease nipple.

Note

The nozzle to be used should be SPK-3C.

Fig. 4A4-57-2

4OM-1733

1-4-47

4.10 Conveyor Section

Linear Guides (3 locations)

Every 3 Months Cleaning and Lubrication

(DAPHNE EPONEX GREASE No. 1)

Required Time: 5 minutes

Support Pin Detection Sensors (2 locations)

Every Week Cleaning

Required Time: 1 minute

Fig. 4A4-58

1211-002

4.10 Conveyor Section

4OM-1733

1-4-48

PCB Detection Sensor (8 locations)

Every Week Cleaning

Required Time: 2 minutes

The light receiving section is

located inside these sections

in the figure.

Fig. 4A4-59

1211-002

4.10 Conveyor Section
