4OM-1733 1-1-5 1.2.2 Preparation for Lubrication Prepare for the specied types of grease and lubrication tools. Note Upper part numbers in the below table are Y AMAHA part numbers, lower ones are HIT ACH equivalents. Sp…

4OM-1733

1-1-4

•

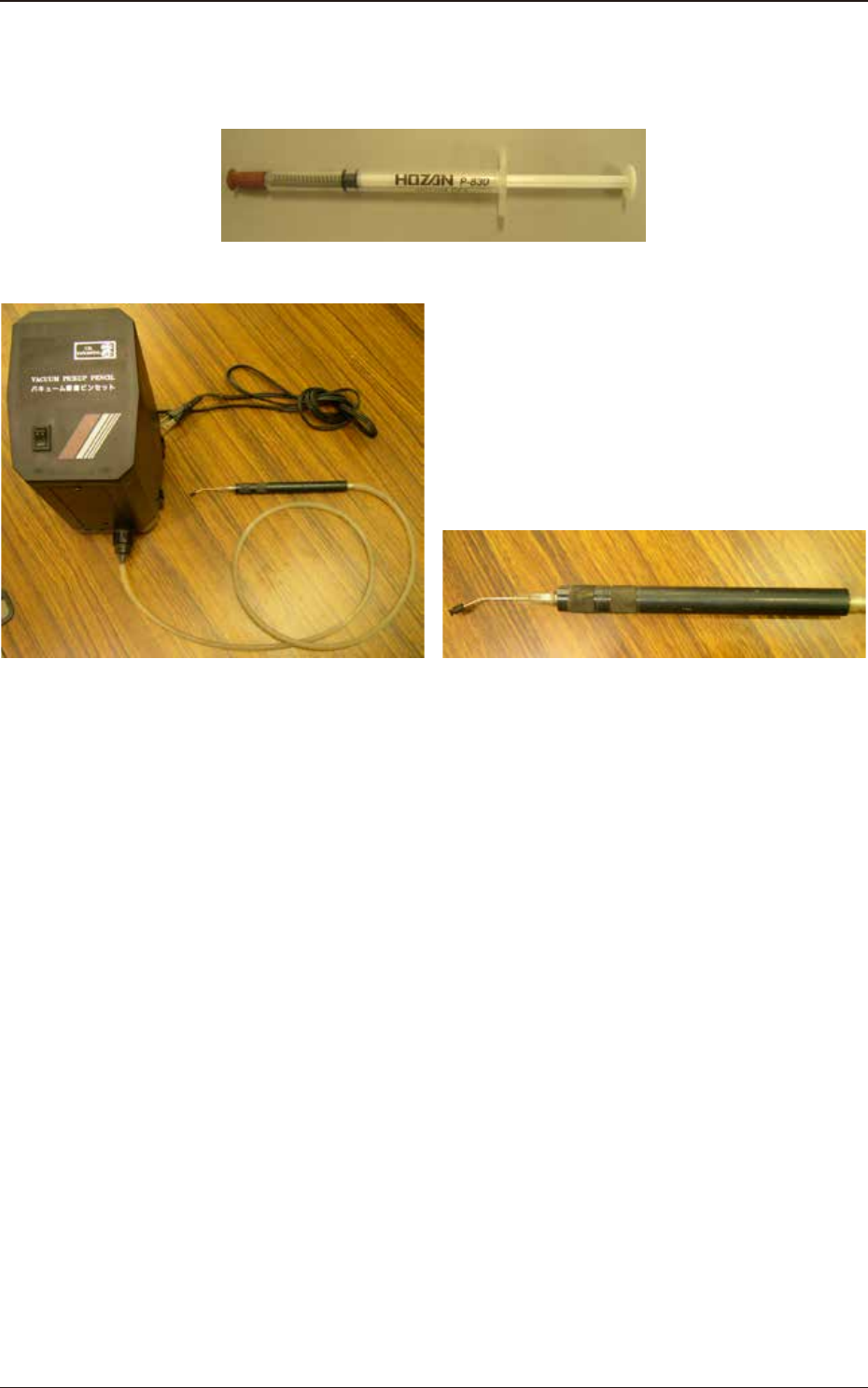

Vacuum Tweezers

Use a pair of vacuum tweezers on the market.

(Handy Type)

(Motor-Driven Type)

Various Types of Vacuum Tweezers

Fig. 4A1-3

1208-002

1.2 Preparation for Maintenance

4OM-1733

1-1-5

1.2.2 Preparation for Lubrication

Prepare for the specied types of grease and lubrication tools.

Note

Upper part numbers in the below table are YAMAHA part numbers, lower ones

are HITACH equivalents.

SpeciedGreases

•

DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)

•

MOLYNOC GREASE AP1 (JX Nippon Oil & Energy)

•

BARRIERTA IEL/V (NOK Klueber CO.,Ltd.)

Note

Before lubrication, wipe off old grease. Otherwise, the effect of grease and oil

will decrease.

Same Types of Lubricants

•

Grease Types equivalent to DAPHNE EPONEX GREASE No. 1

(IDEMITSU KOSAN)

Table 4A1-1

Grease Names Makers

Alvania Grease No. 1 Showa Shell Sekiyu K.K

Multinoc Grease 1 JX Nippon Oil & Energy

Jomo Lisonix Grease No. 1 JX Nippon Oil & Energy

Dynamax No. 1 COSMO OIL LUBRICANTS

Lithtan 1 Exxon Mobil Corporation

MP Grease No. 1 KYGNUS

Gemico MP-1 Tonen General Sekiyu K.K

Multemp PS1 KYODOH YUSHI CO., LTD.

•

Grease Types equivalent to MOLYNOC GREASE AP1

(JX Nippon Oil & Energy)

Table 4A1-2

Grease Names Makers

DAPHINE Grease M No. 1 Idemitsu Kosan Co., Ltd.

Jomo Lisonix Grease M No. 1 JX Nippon Oil & Energy

COSMO MOLYBDEN GREASE

No. 1

COSMO OIL LUBRICANTS

BEACON Q2 Exxon Mobil Corporation

Gemico MD2 Tonen General Sekiyu K.K

M5 GREASE 1 KYGNUS

1208-002

1.2 Preparation for Maintenance

4OM-1733

1-1-6

Speciedlubricationtools

(1) Brush

Use a brush whose bristles do not come off if possible.

Notice

Do not use a brush for ball screws and splines.

(2) Vinyl Gloves

Use a pair of vinyl gloves to apply grease or oil by hand.

(3) Hand Grease Gun

Standard

: KH-120

Part No.

: KYB-M382J-00 (228A0022)

Maker

: Yamada Corporation

Note

Use this gun only for DAPHNE EPONEX GREASE No. 1.

Reference

Refer to the attached instruction manuals for the hand grease gun for the

usage.

Fig. 4A1-4

•

Attachment for Hand Grease Gun KH-120

Table 4A1-3

Standard Shape Part No. Remarks

Type N

KYB-M382A-00

216M0440

THK

Type H

KYB-M3829-00

216M0439

THK

Type U

KYB-M3828-00

216M0438

THK

Type P

KYB-M3813-00

0920H11Q

THK

SPK-3C

KYB-M382H-00

228A0021

Yamada

Corporation

Note

It is not attached to the machine. Purchase it separately if necessary.
