4OM-1733 1-4-48 PCB Detection Sensor (8 locations) Every Week Cleaning Required Time: 2 minutes The light receiving section is located inside these sections in the figure. Fig. 4A4-59 121 1-002 4.10 Conveyor Section
4OM-1733
1-4-47
4.10 Conveyor Section

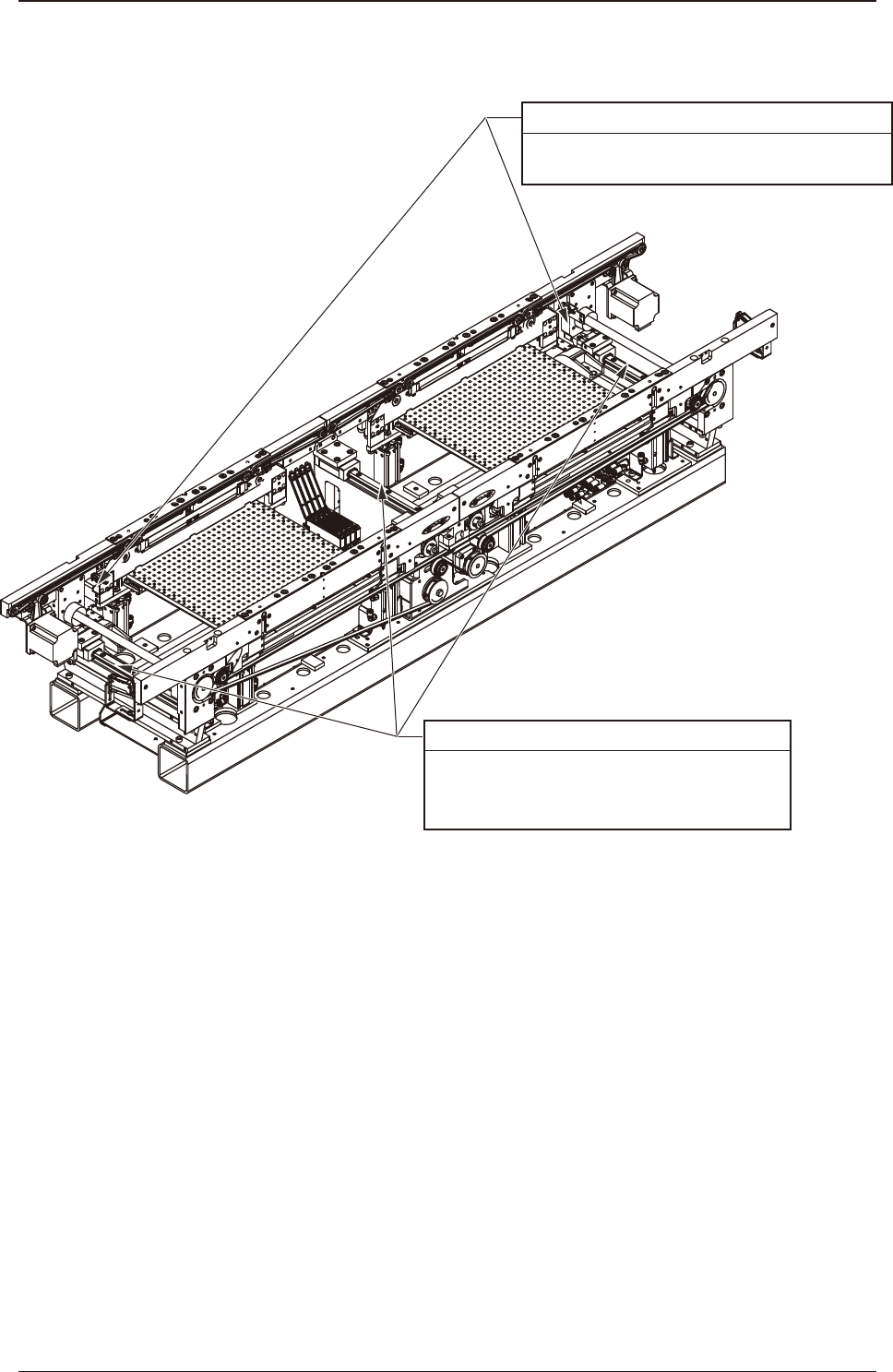

Linear Guides (3 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Support Pin Detection Sensors (2 locations)
Every Week Cleaning
Required Time: 1 minute
Fig. 4A4-58
1211-002
4.10 Conveyor Section
4OM-1733
1-4-48

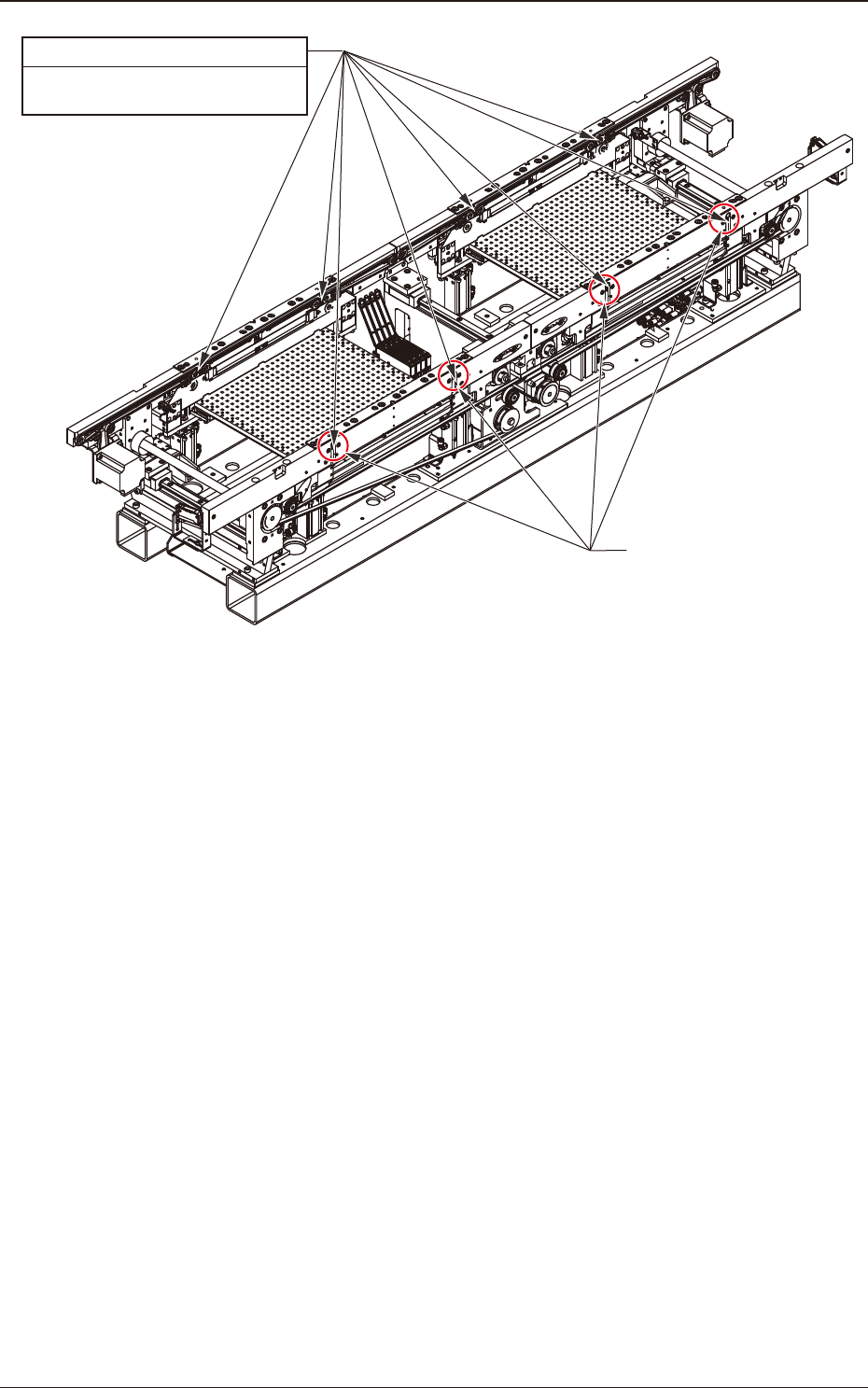

PCB Detection Sensor (8 locations)
Every Week Cleaning
Required Time: 2 minutes
The light receiving section is
located inside these sections
in the figure.
Fig. 4A4-59
1211-002
4.10 Conveyor Section
4OM-1733
1-4-49
4.10.1 Linear Guide Cleaning and Oiling
Cycle : Every 3 Months (Required Time : 5 minutes)
Grease : DAPHNE EPONEX GREASE No.1

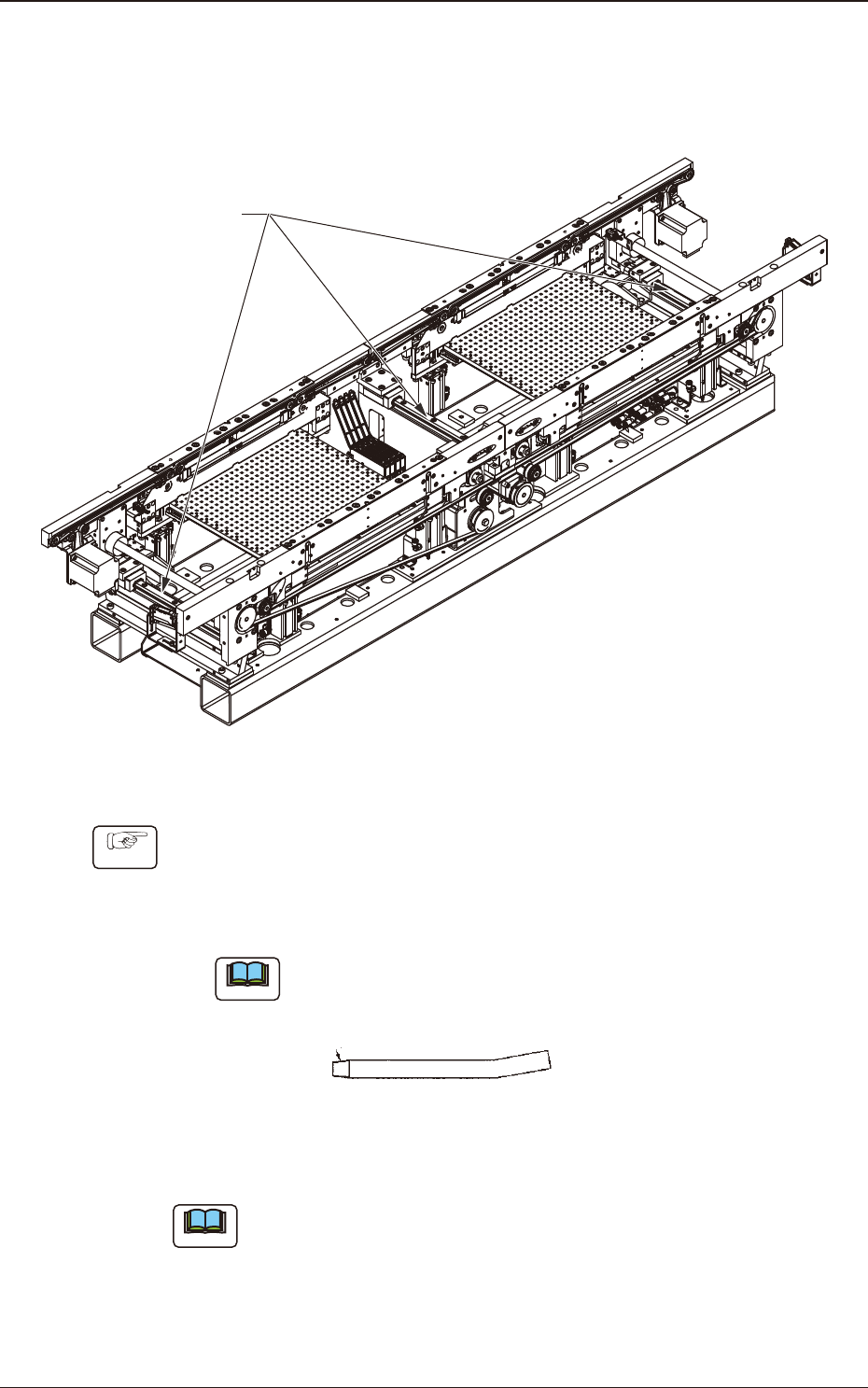

Linear Guide
Fig. 4A4-60
Procedure
(1) Wipe off old grease with an oiled rag.
(2) Attach the H-type attachments to a hand grease gun and supply new grease
to the grease nipples with the hand grease gun.
Note
Use type H nozzle.
Type H
PT1/8
Fig. 4A4-61
Note
Perform the cleaning and oiling operations using the same procedure also in the
system where the Y510 mm Single Transfer Unit (Option) has been mounted.
1403-004
4.10 Conveyor Section
