4OM-1733
1-4-8

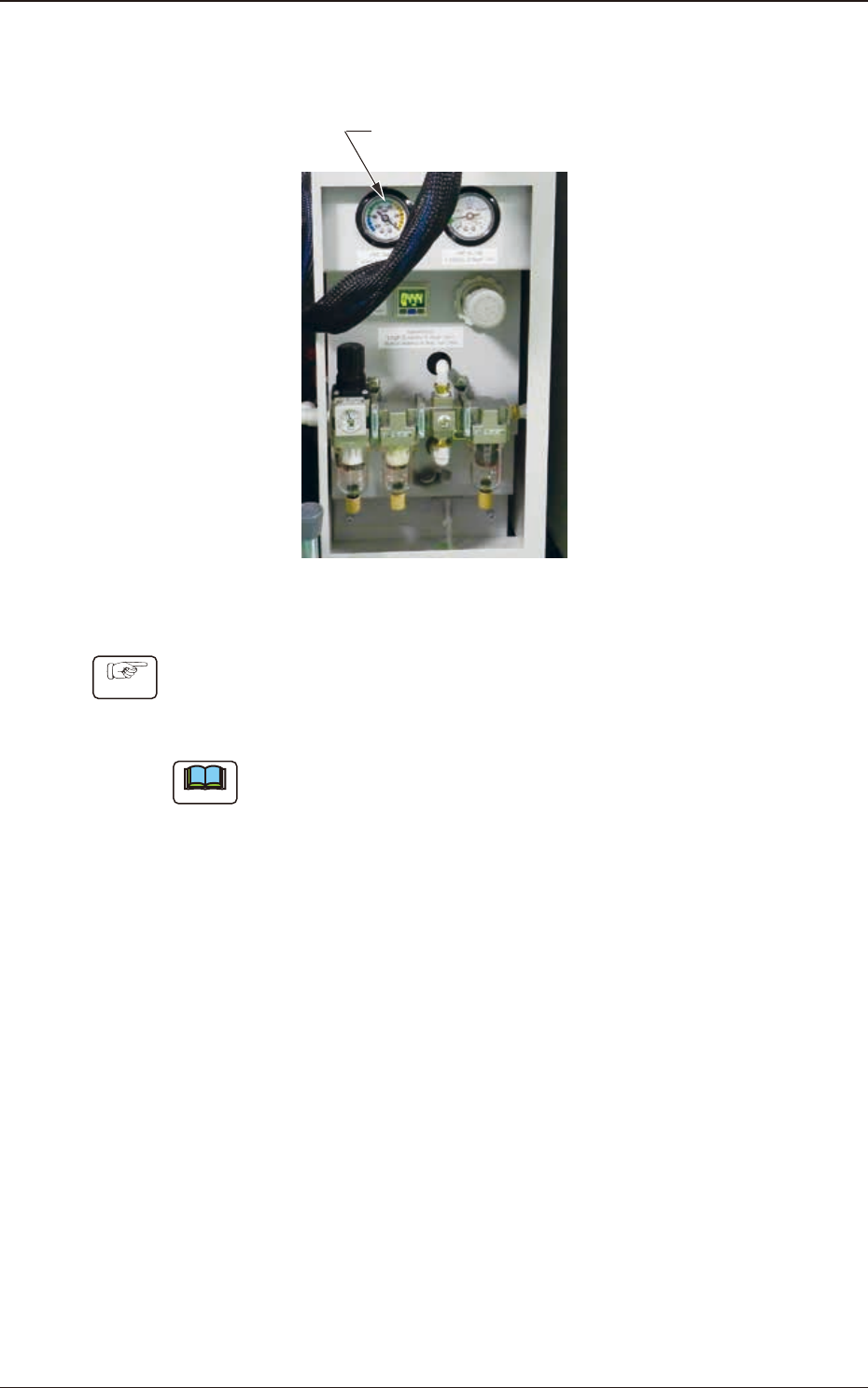

4.2.1 Vacuum Pressure Check
Cycle : Every Day (Required Time: 1 minute)
Vacuum Pressure
Fig. 4A4-9
Procedure
Check the vacuum pressure visually.
Vacuum Valve Fully Closed : Min. -93 kPa (Min. 70 cmHg) or more
Running : Min. -60 kPa (Min. 45 cmHg) or more
Note
When the vacuum pressure is insufcient, air may be leaking from the vacuum
line or the vacuum pump may have broken down.
1211-002
4.2 Vacuum System
4OM-1733
1-4-9

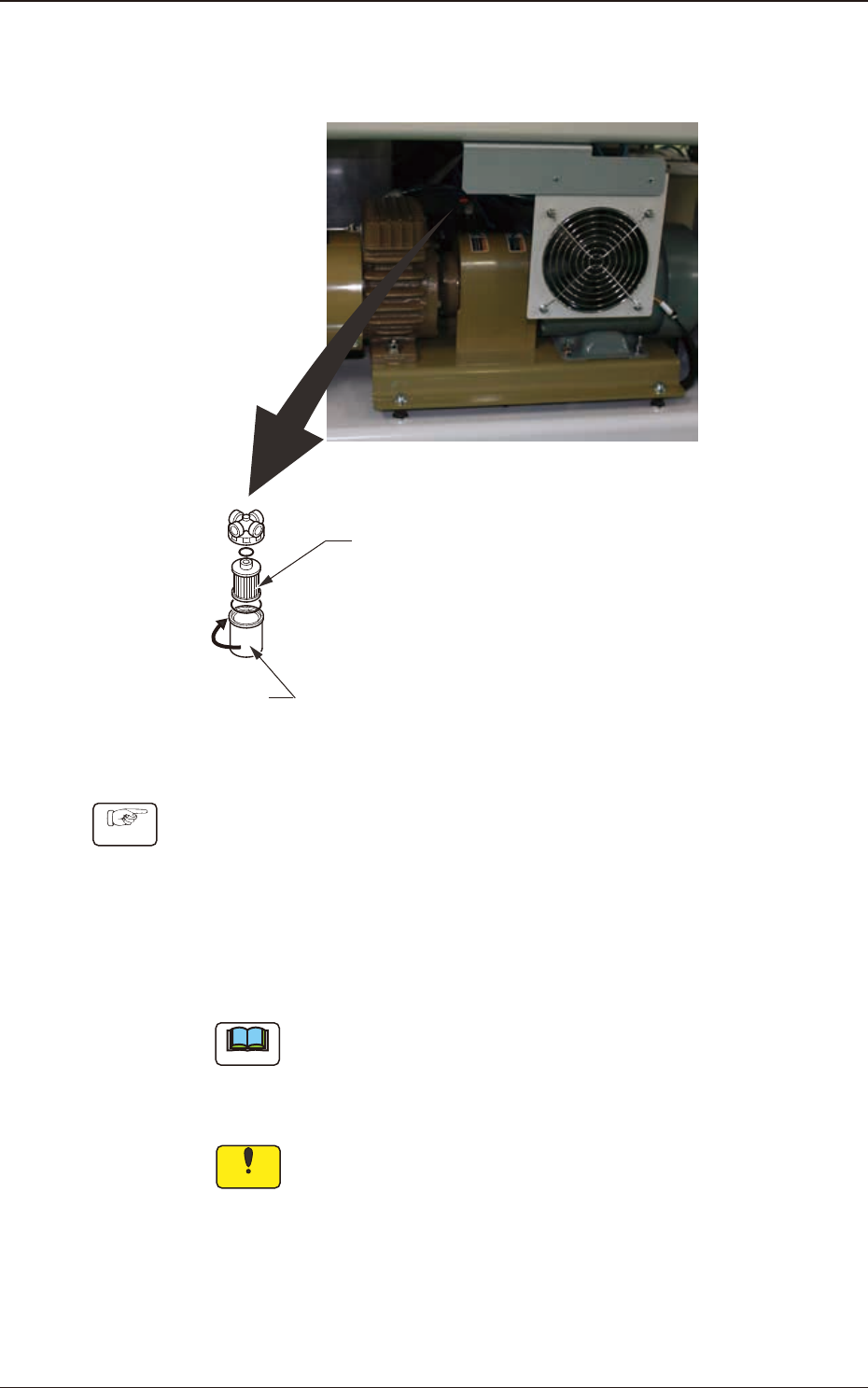

4.2.2 Filter Cleaning
Cycle : Every 3 Months (Required Time : 10 minutes)
Filter Case
C
Filter
Fig. 4A4-10
Procedure
(1) Remove four setscrews fastening the cover located at the lower area of the
front side of the machine and detach the cover.
(2) Rotate the lter case in Arrow Direction C to detach and then take out the
lter.
(3) Blow air to the lter for cleaning.
Note
When the vacuum pressure has dropped during the operation, replace the
lter with a new one.
(4) Attach the cover and tighten the setscrews.
Notice
If a clearance is left between the main machine and the cover, the
tape will pop out from the clearance during the operation, causing
the machine to breakdown or generate an error.
1211-002
4.2 Vacuum System
4OM-1733
1-4-10
4.3 Component Recognition Camera Section
NOTICE
Donotputyourhandontotheducialmarkblock.
Iftoomuchforceisgiventotheducialmarkblockit
may become deformed.
Fiducial Mark Block
Component Recognition Camera
(4 locations)
Every Day Cleaning
Required Time: 4 minutes
Fig. 4A4-11
Standard Condition
Condition where the Nozzle Stocker for Middle Size Odd Shaped Nozzle (Option),
and Rejected Component Box (Option) have been mounted onto the system
Component Storage Box
Every Day Cleaning
Required Time: 1 minute
Fiducial Marks (4 locations)
Every Week Cleaning
Required Time: 2 minutes
Fig. 4A4-12
Note
These options are selected together with the high-speed head SIGMA-F8
(HL) as a factory set when the system is delivered from the factor.
1403-005
4.3 Component Recognition Camera Section
