4OM-1733 1-4-37 4.8.1 X-axis Linear Guide Check Cycle : Every Day (Required Time : 1 minute) X-Axis Linear Guides Fig. 4A4-48 Procedure Check it visually that no alien substance has been dropped. If any alien substance h…

4OM-1733

1-4-36

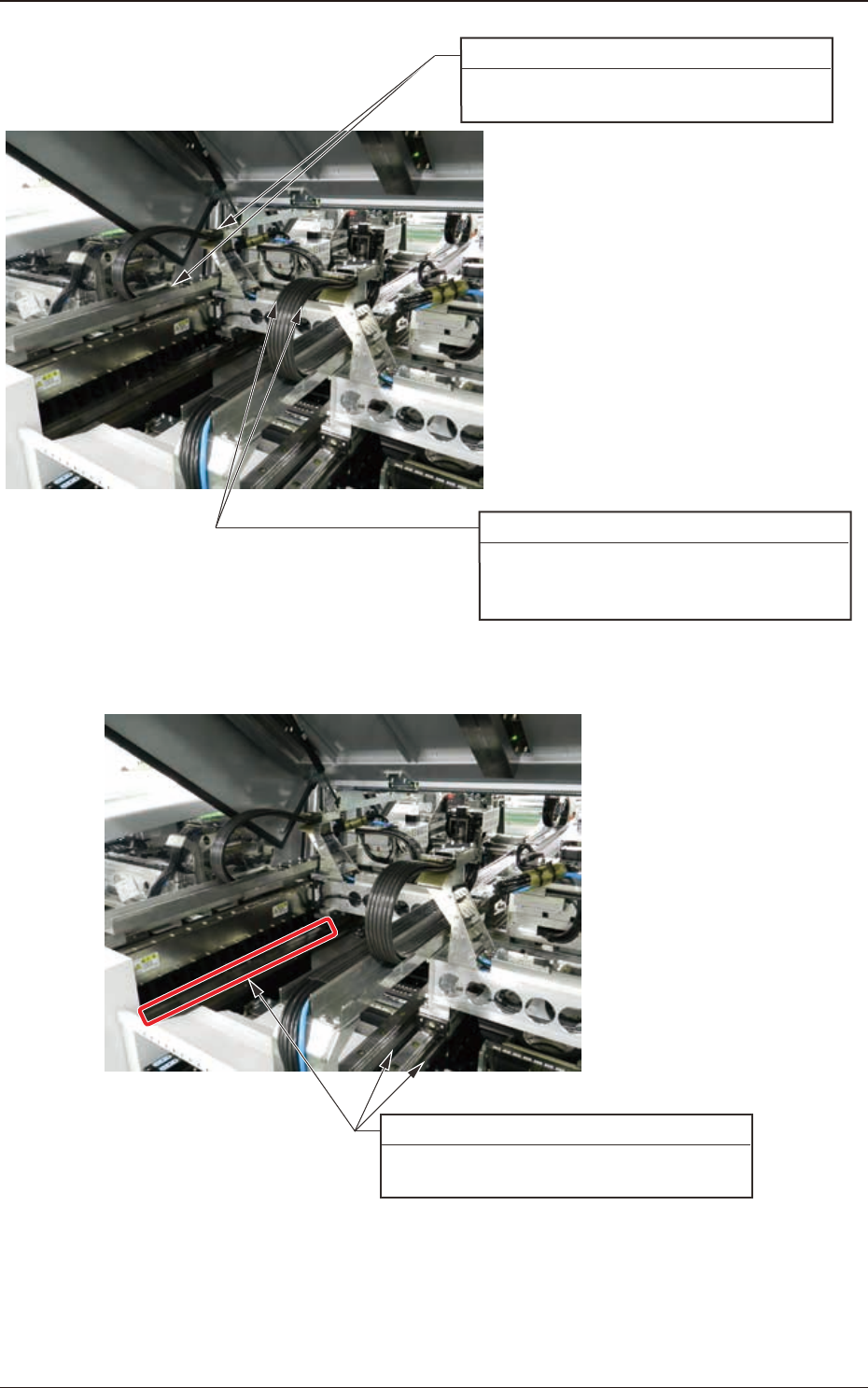

Y-Axis Cable Fixing Places

Every 6 Months Inspection

Required Time: 1 minute

Y-Axis Cable Side Faces

Every 6 Months Cleaning and Lubrication

(BARRIERTA IEL/V)

Required Time: 3 minutes

Fig. 4A4-46

Y-Axis Linear Scale

Every 6 Months Cleaning

Required Time: 5 minutes

Fig. 4A4-47

1211-002

4.8 X/Y Beam Section

4OM-1733

1-4-37

4.8.1 X-axis Linear Guide Check

Cycle : Every Day (Required Time : 1 minute)

X-Axis Linear Guides

Fig. 4A4-48

Procedure

Check it visually that no alien substance has been dropped. If any alien substance

has been dropped, remove it.

1211-002

4.8 X/Y Beam Section

4OM-1733

1-4-38

4.8.2 X-axis Linear Guide Cleaning and Oiling

Cycle : Every 3 Months (Required Time : 5 minutes)

Grease : DAPHNE EPONEX GREASE No.1

X-Axis Linear GuidesSlider

Fig. 4A4-49

Procedure

(1) Wipe old grease out using a rag.

(2) Apply new grease from the grease nipple using the hand grease gun.

Note

Grease should be applied every 3 months after the initial month.

Notice

Take ample care not to leave any waste threads after cleaning.

1211-002

4.8 X/Y Beam Section
