4OM-1733
1-4-56
4.12 Control Box Section

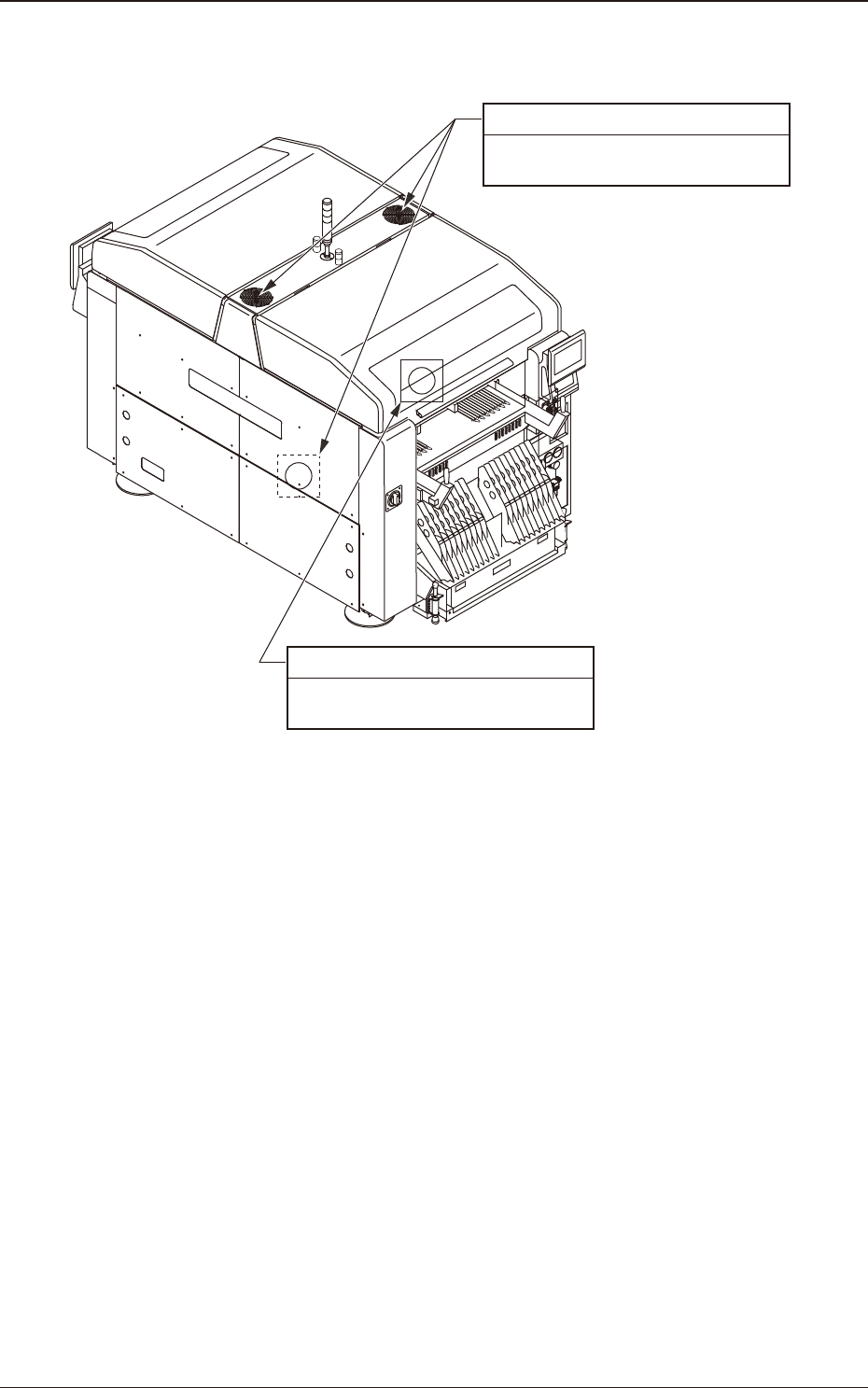

Dust Filter (1 location)
Every 3 Months Cleaning
Required Time: 4 minutes
Fig. 4A4-67
1211-002
4.12 Control Box Section
4OM-1733
1-4-57
4.12.1 Filter Cleaning
Cycle : Every 3 Months (Required Time : 4 minutes)

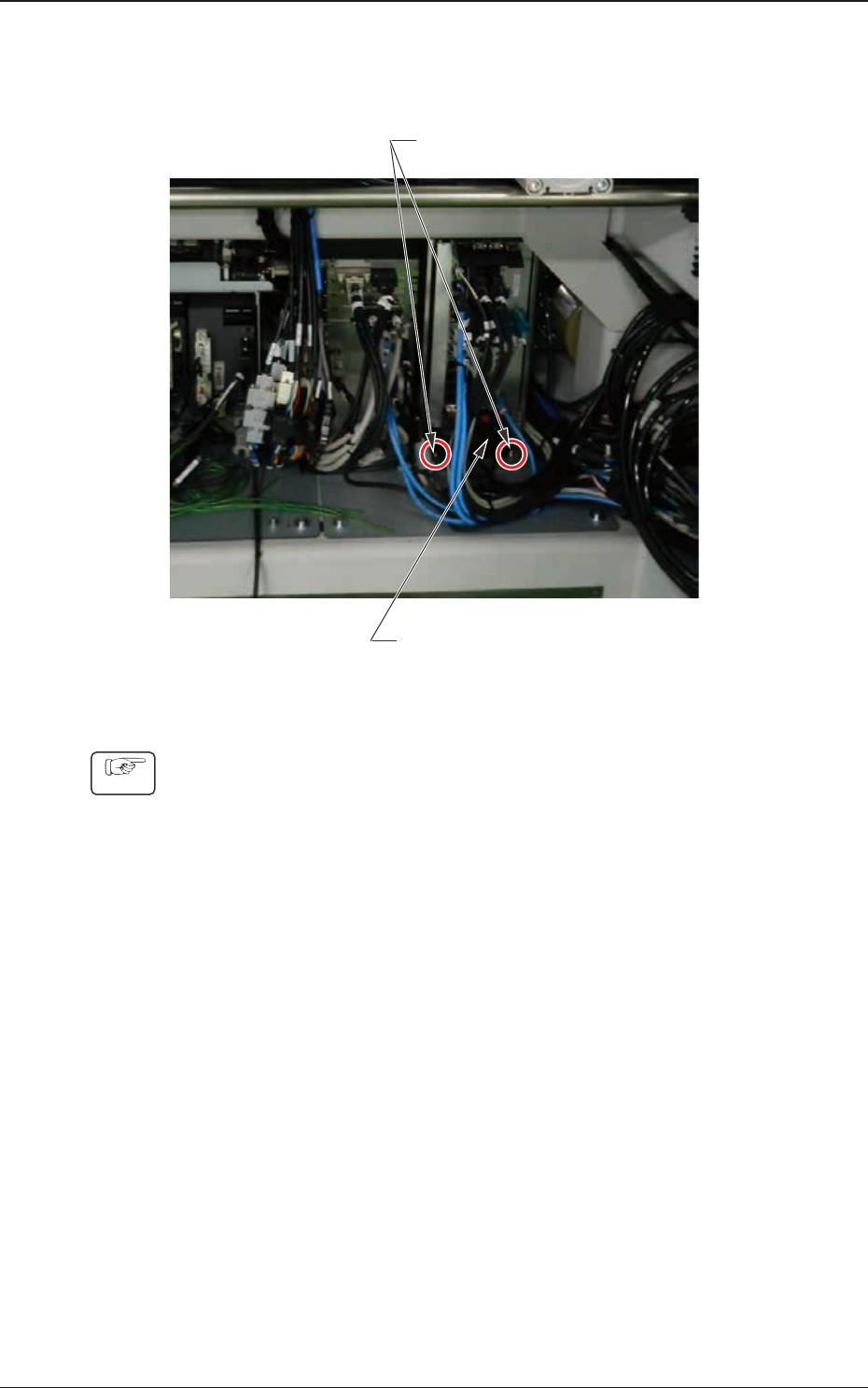

Dust Filter
Screw
Fig. 4A4-68
Procedure
(1) Remove the screws (2 locations) xing the dust lter and remove the dust
lter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust lter.
1211-002
4.12 Control Box Section
4OM-1733
1-4-58
4.13 Ventilating Fans Section
Ventilating Fan
Every 3 Months Cleaning
Required Time: 10 minutes
Ventilating Fan
Every 3 Months Cleaning
Required Time: 10 minutes
Fig. 4A4-69
1211-002
4.13 Fans Section
