4.7 Head Section

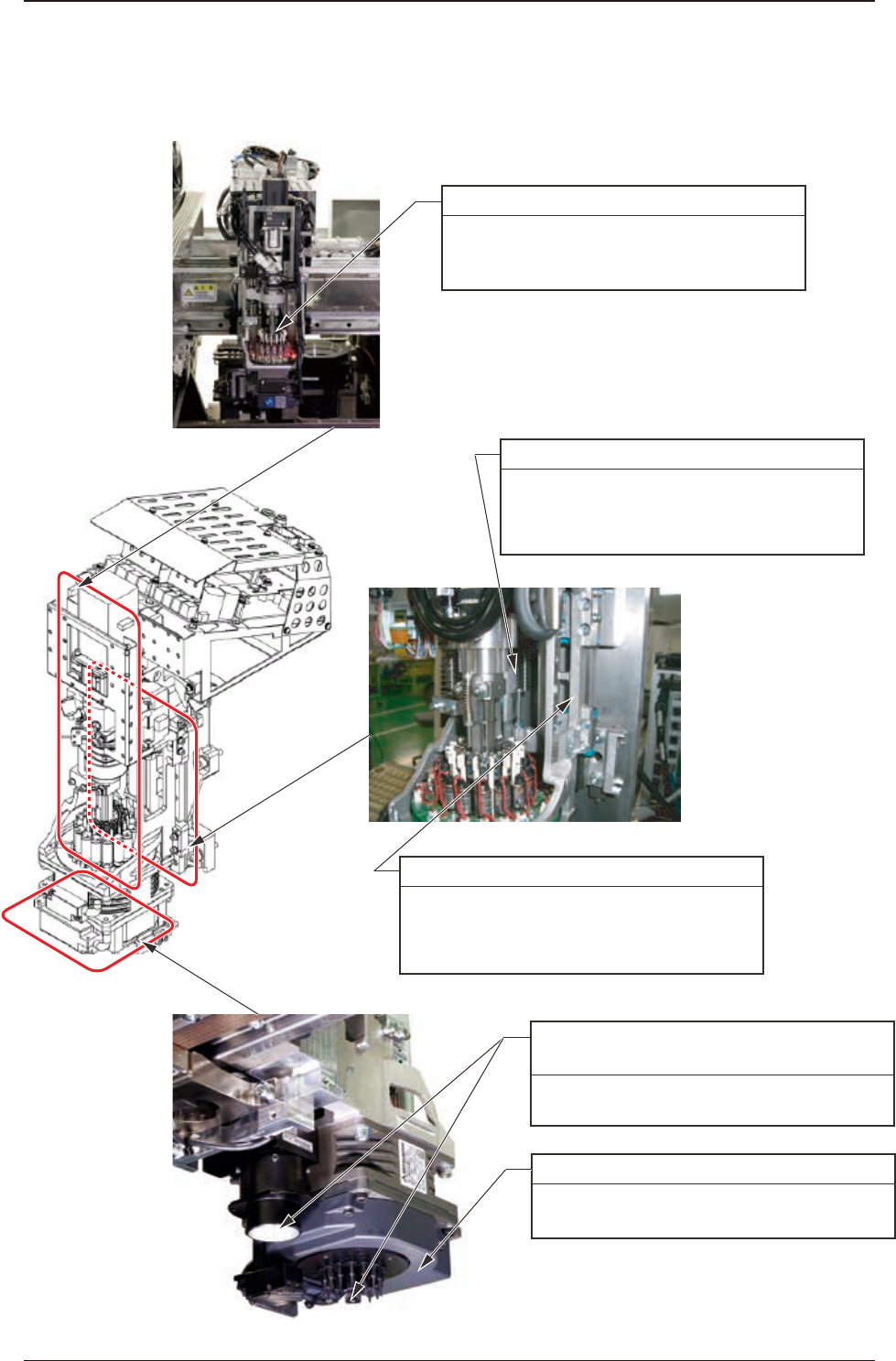

High-Speed Head
Diffusion Plate
Every Month Cleaning
Required Time: 2 minutes
Linear Measure Sensors
(Light Emitter and Receiver)
Every Day Cleaning
Required Time: 5 minutes
Nozzle U/D Ball Screw (NL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Head U/D Ball Screw (HL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Head U/D Linear Guide (HL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Fig. 4A4-30
1403-005
4.7 Head Section
4OM-1733
1-4-24
Vacuum Filters (15 locations)
Every 3 Months Replacement
Required Time: 30 minutes

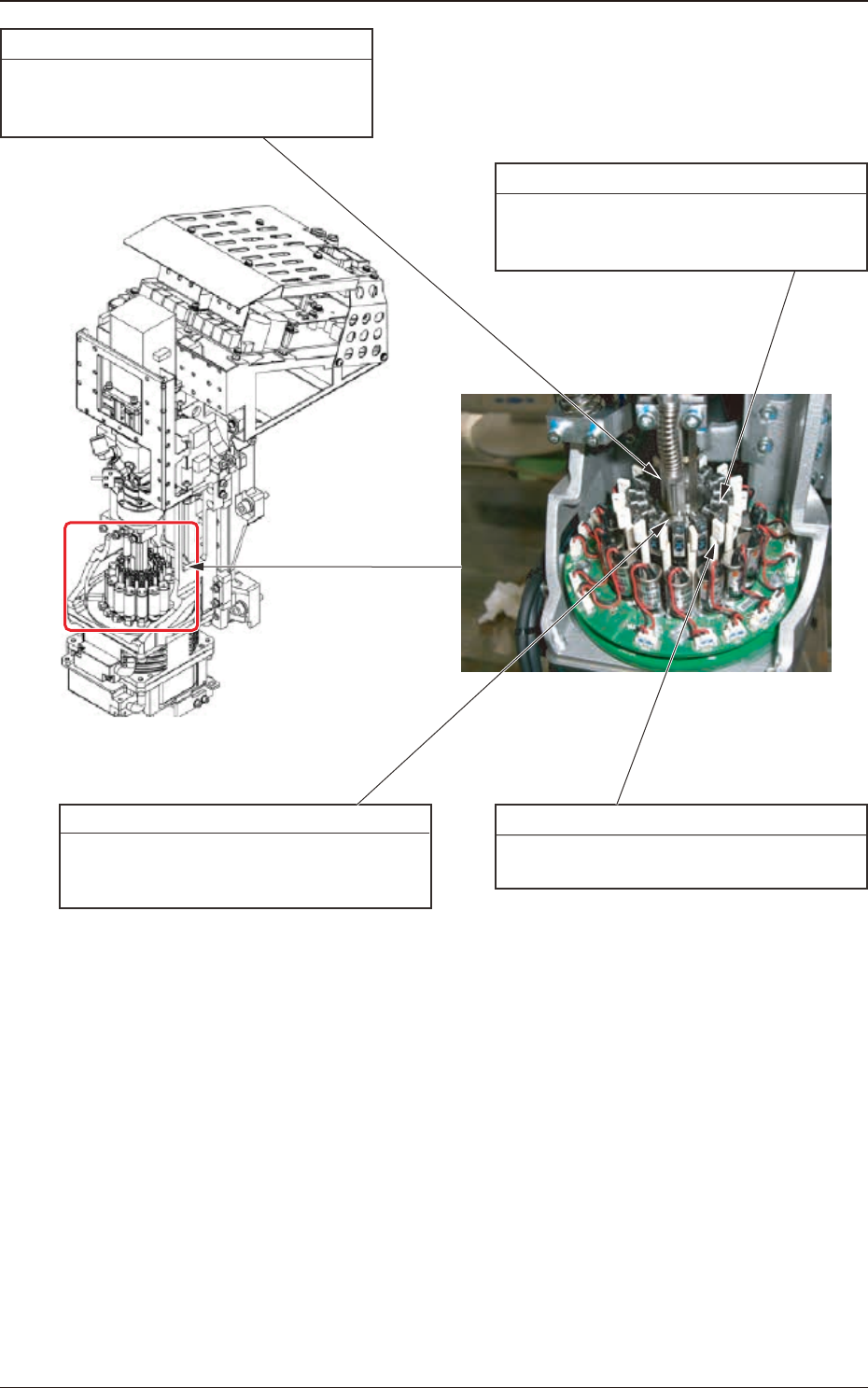

Nozzle Change Cam Face (Upper Side)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Center Spline
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 4 minutes
Cam Followers
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Fig. 4A4-31
1403-005
4.7 Head Section
4OM-1733
1-4-25
NOTICE
When the air-blowing is to be performed to the nozzle,
make sure to start it from the nozzle end section.
If the air-blowing is started from the clamp claw section, the
clamp claw might be damaged.

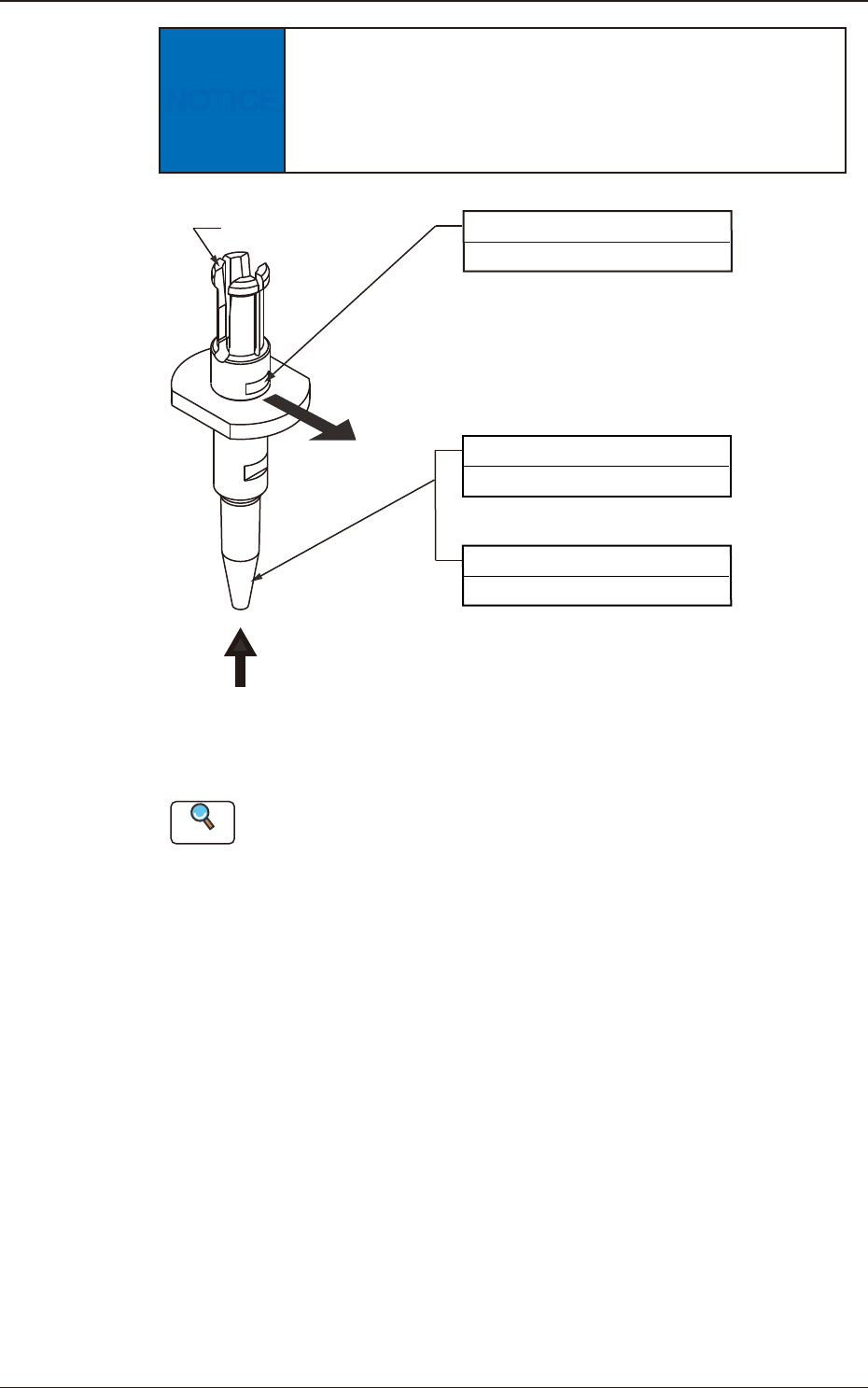

Vacuum Nozzle
Every 3 Months Inspection
Vacuum Nozzle
Every Week Cleaning
Air Blowing from the Tip
Clamp Claw
Nozzle Filter
Every Week Change
Fig. 4A4-32
Reference
Refer to "5. Vacuum Nozzle Cleaning Procedure" for the vacuum nozzle
cleaning.
1211-002
4.7 Head Section
