Page 8 Summary of Data Editing 1-2 Starting CM301 Editor T o start it, double-click on a data file displayed on file information area of Filer . 1-3 CM301 Editor Main Screen When you start the Editor , the following scre…
Page 7
301
CM
4H4C-E-PMA01-A02-00
4. Stock Data
Choose addresses (where on feeder table that the
feeders will be set).
6. Block Data
Input mounting coordinates.
7. Block Attribute Data
(Defective Block Recognition)
Input the expansion conditions of the block
data.
8. Sort
Sort the block data to create the mount data.
9. Mount Data
Confirm the sorted data.
10. Data Check
Finally, check if all the data are perfect.
Summary of Data Editing
444C-604E
433C-074E
433C-075E
433C-076E
433C-077E
4H4C-612E
Not Expanded Expanded
Undividable board
Dividable board
5. Nozzle Changer Data
Input the positions of the nozzles.
1
2
4
3
5
6
2
1
4
3
5
6
Page 8
Summary of Data Editing

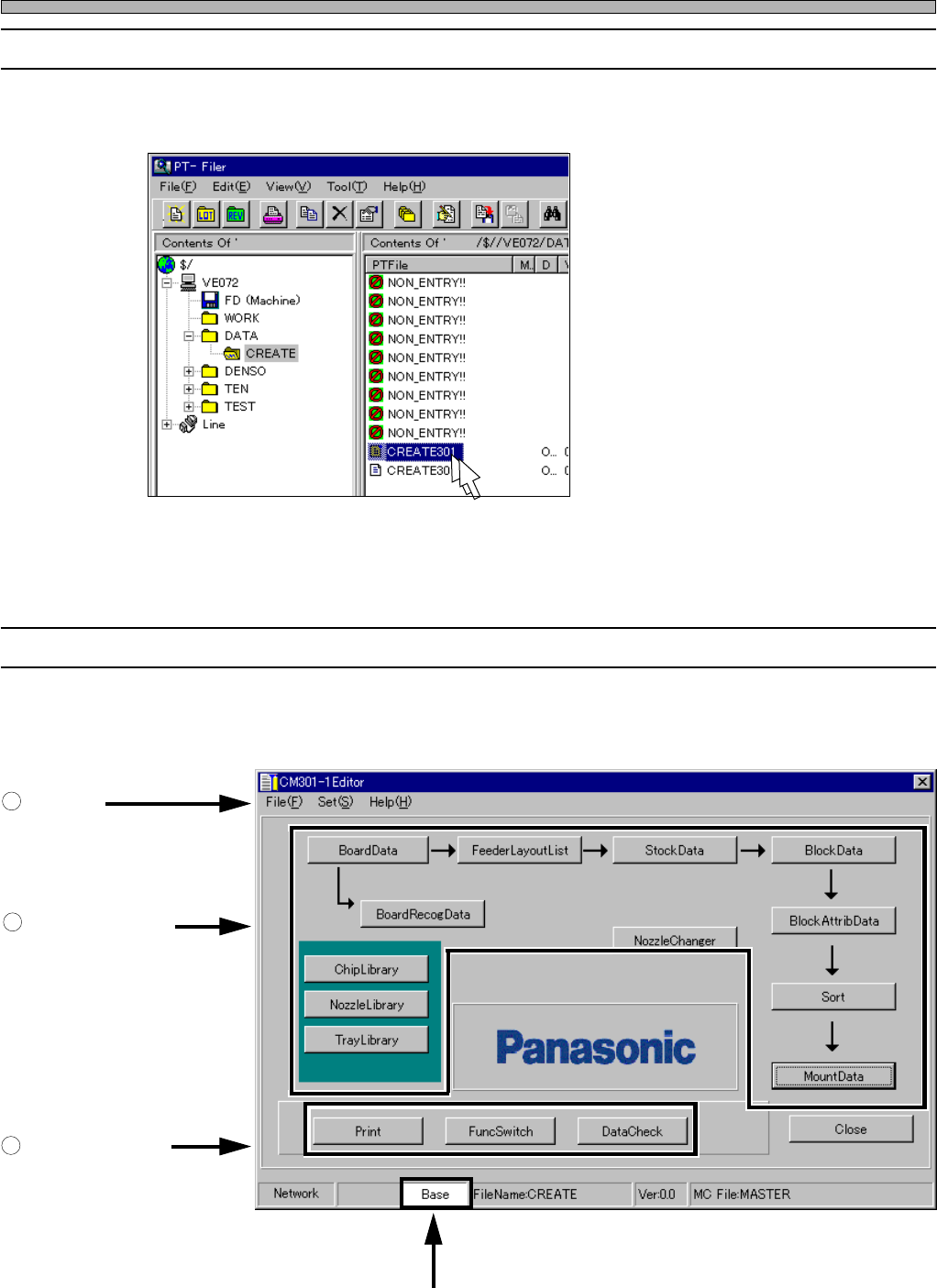

1-2 Starting CM301 Editor
To start it, double-click on a data file displayed on file information area of Filer.
1-3 CM301 Editor Main Screen
When you start the Editor, the following screen is displayed.
4H4C-E-PMA01-A02-01
1
Menu Bar
2
Switches for Each
Data Edit
3
Switches for Each
Function
Display Mode
4H4C-EPt-Ed-001
4H4C-EPt-Fi-001
Page 9
301
CM
Summary of Data Editing

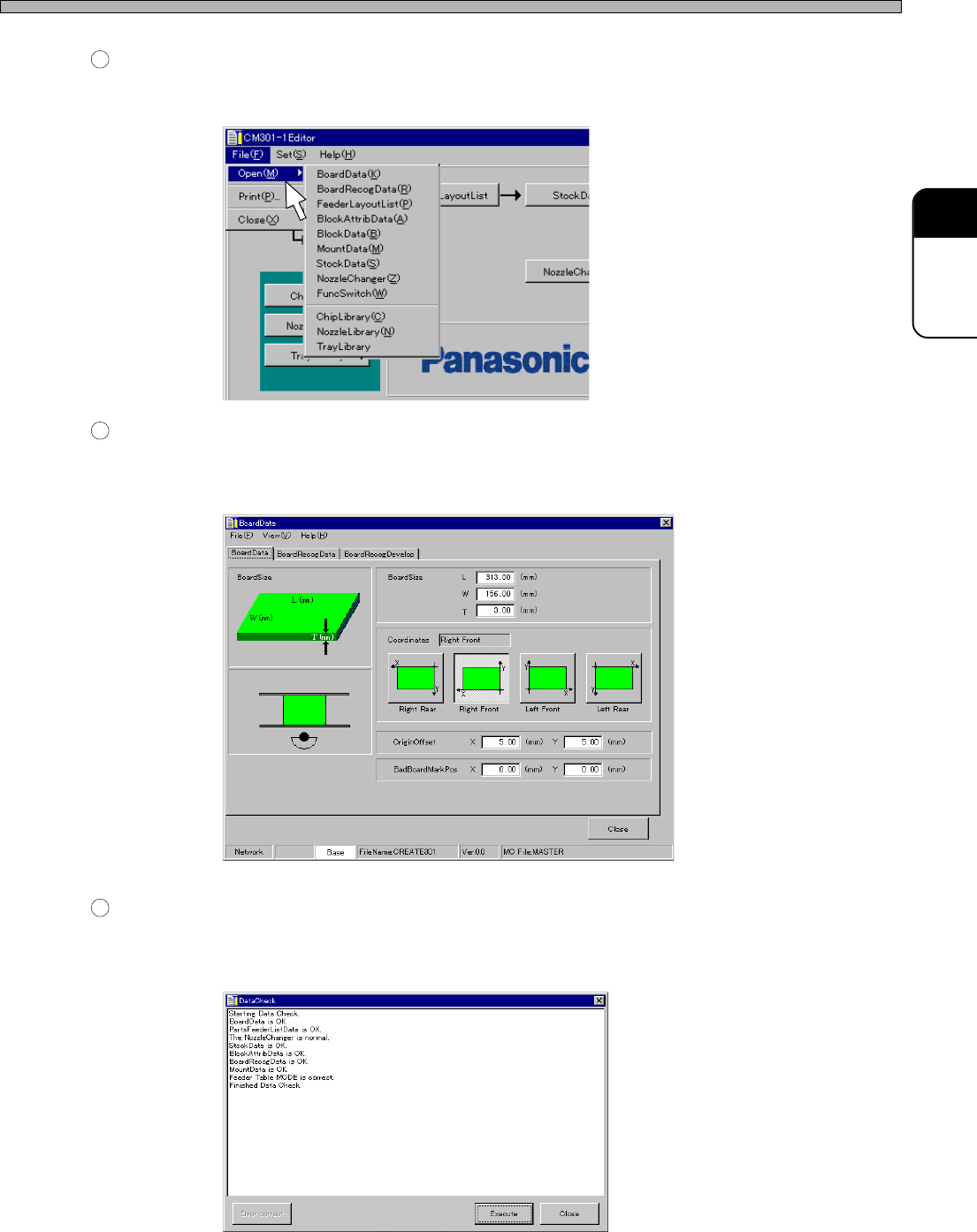

1
Menu Bar
When you place a pointer on a menu name and click on it, its command menu opens. Then drag a
mouse to choose the command. (Some menus contain sub menus.)
2
Switches for Each Data Edit
When you click on a switch, the Editor main screen closes and the screen for each data edit is
displayed.
e.g. Board data
3
Switches for Each Function
When you click on a switch, the Editor main screen closes and the screen for each function (func-
tion setup) is displayed.
e.g. Data check
4H4C-E-PMA01-A02-01
4H4C-EPt-Ed-002
444C-EPt-EdBd-001
4H4C-EPt-EdDc-001
