301
CM
4H4C-E-PMA01-A03-02
8. Tray Type
The name of the tray that the chips are supplied to is displayed. You can choose the tray from
among the ones input in the custom tray library.
9. Tray Layout
This indicates the position of the tray on the pallet.
Up to two trays can be set on the pallet. To set two trays, the optional clamp (option) is required.
When the distance (in the X direction) between the pick-up point on the tray and the origin is under
12 mm, the pallet offset block (option) is required. To use the offset block for pallet, you need to
input the offset of 8 mm in the tray layout.
Stock Data
Pick-up Possible Range Offset Block for Pallet
Optional ClampTray Max. 230 mm
Tray Setting Reference
(Tray Origin)
Pick-up Position
(Chip Center)
325 mm Pick-up Area
Tray Max. 335 mm
4H4C-616E
4H4C-617E
206 mm 12 mm
Page 50
9-2 Editing Stock Data
1. Click on StockData .
• [StockData] window opens.
2. Click on Feeder Table Mode .
3. Set the feeder table mode.
• When you select ReserveMode or
ChangeMode, click on the feeder table to use.
• When mode setting is complete, click on OK .
∗ When you do not use the table for mounting,
click on the radio button of “Pass”.
4H4C-E-PMA01-A03-02
Stock Data
To the next page
4H4C-EPt-Ed-001
4H4C-EPt-EdSd-001
4H4C-EPt-EdSd-002
Page 51
301
CM

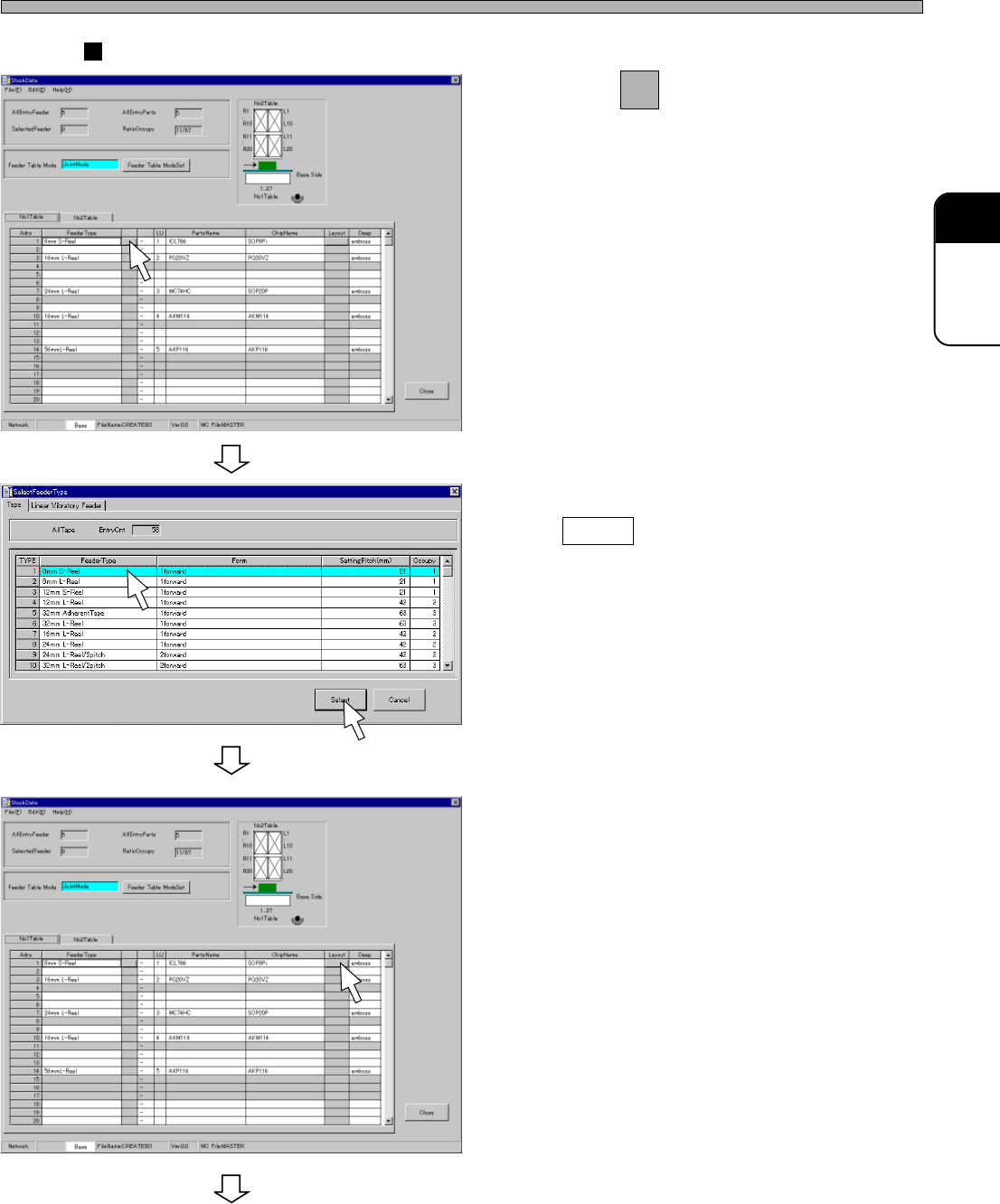

Case of Tape Feeder
4. Click on next to FeederType field.
• [SelectFeederType] window opens.
5. Choose the type of feeder, and click
on Select .
6. Click on a Layout field of the address
where you will set the chip.
• [SelectFeederLayoutList] window opens.
4H4C-E-PMA01-A03-01
Stock Data
To the next page
4H4C-EPt-EdSd-001
4H4C-EPt-EdSd-006
4H4C-EPt-EdSd-004
