Page 45
301
CM
4H4C-E-PMA01-A03-02
Feeder Layout List

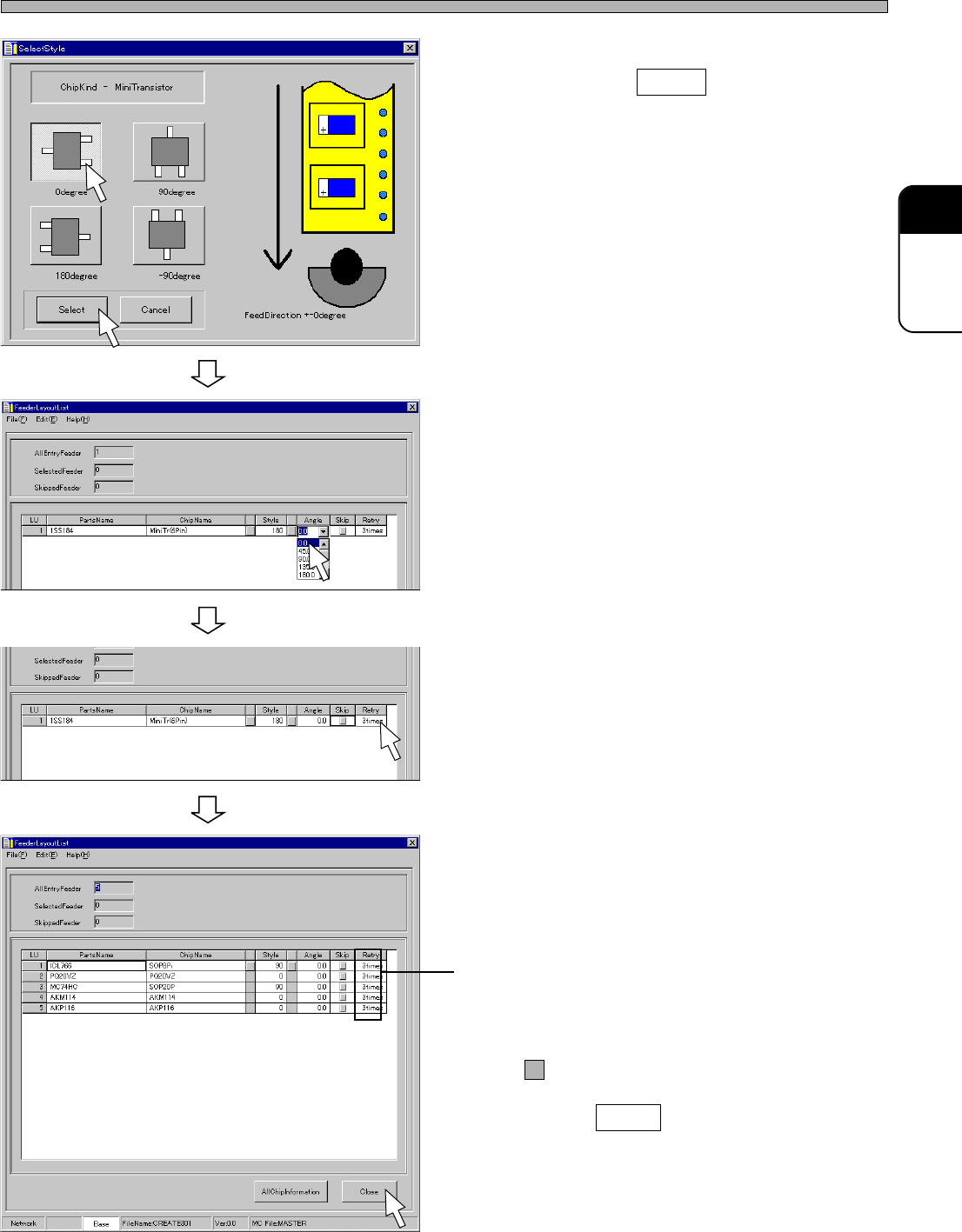

8. Choose the packing form of the chip,
and click on Select .
• [SelectStyle] window closes, and the chosen
packing form is set.
∗ Illustrations of the select button varies accord-
ing to the shape of chip.
9. Choose Angle.
10. Select the number of times of retry.
11. Register all the chips to use in the
feeder layout list by repeating the
steps from 2. to 10.
12. Confirm the settings of Skip and
Rcvry.
• If you do not use the feeder temporarily, tick off
by clicking.
13. Click on Close .
• The main menu is displayed.
4H4C-EPt-EdPl-003
4H4C-EPt-EdPl-006
4H4C-EPt-EdPl-005
4H4C-EPt-EdPl-001
Page 46
4H4C-E-PMA01-A03-01

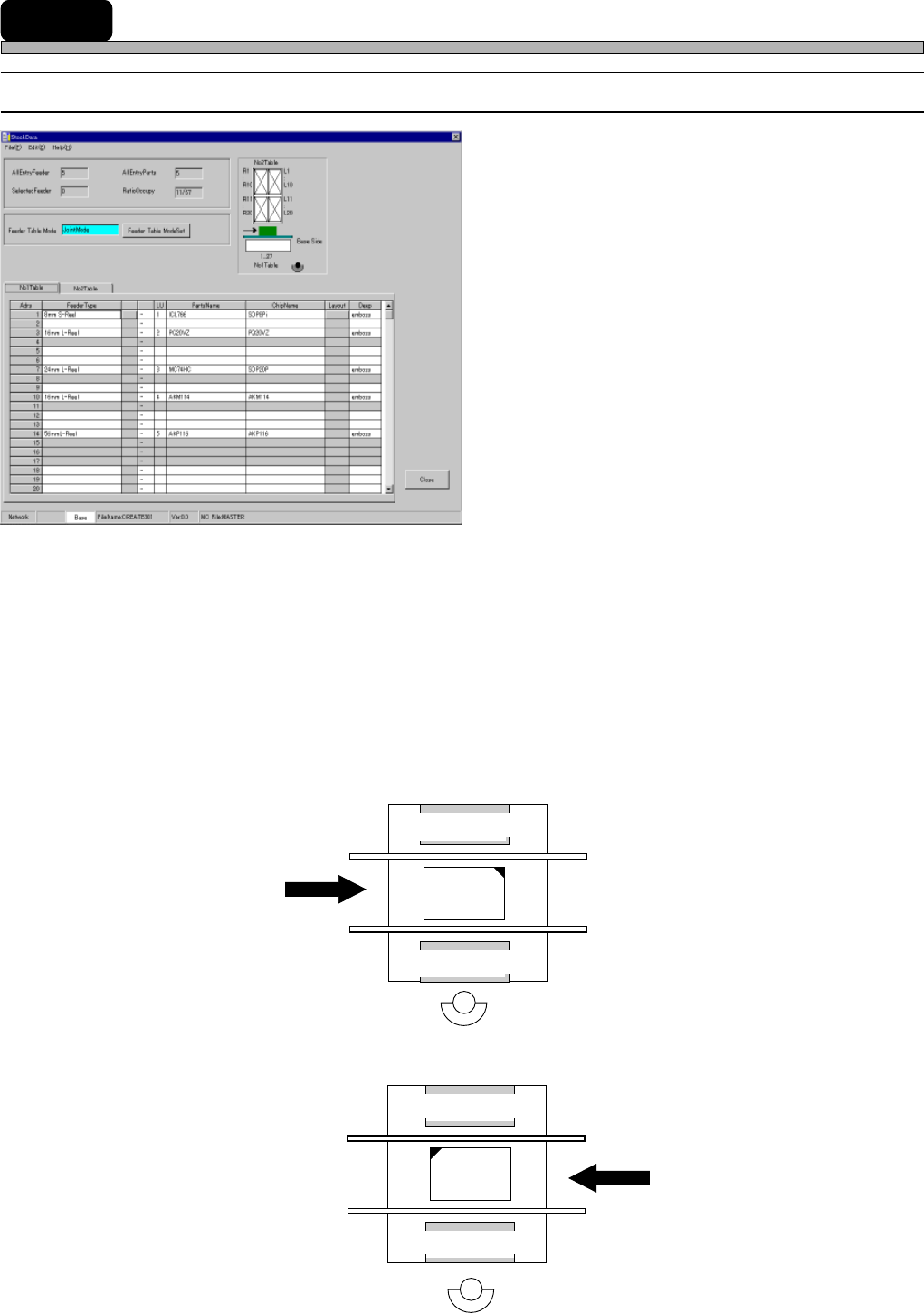

9 Stock Data
9-1 Stock Data
1. Table No.
2. Adrs
3. FeederType
4. PartsName
5. ChipName
6. Deep
7. Feeder Table Mode
8. Tray Type
9. Tray Layout
The description are as follows.
1. Table No.
The part where tape feeders will be set is referred to as the feeder table.
∗ The feeder table on the front side is called Table No. 1 and that on the rear side is called Table
No. 2.
(E.g. 1)
Right-Rear Reference
Table No. 2
Table No. 1
(E.g. 2)
Left-Rear Reference
Table No. 2
Table No. 1
4H4C-603E
4H4C-602E
4H4C-EPt-EdSd-001
Page 47
301
CM

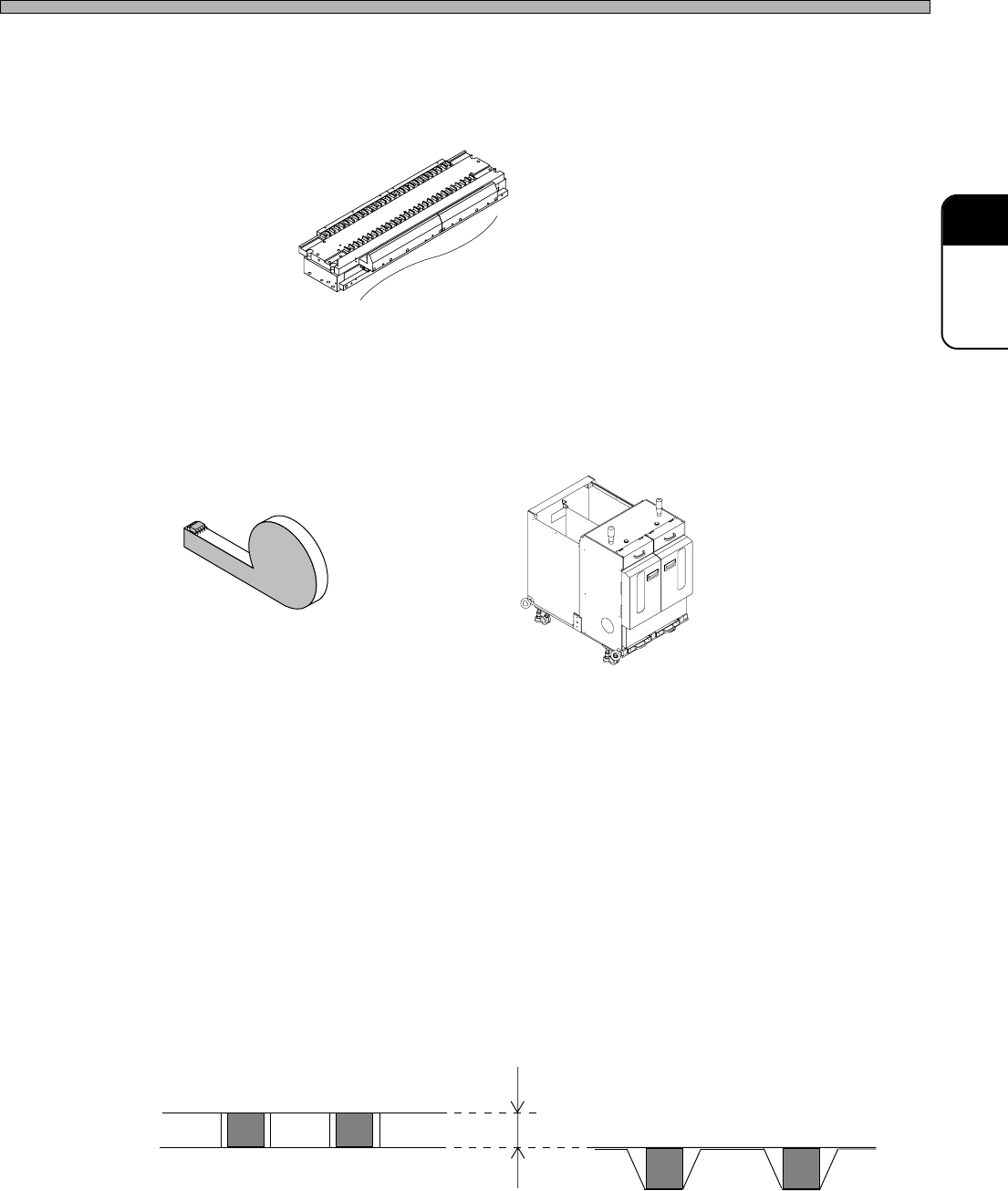

2. Adrs
This shows the position where a feeder will be set.
Table No. 1 has addresses No. 1 to 27. Table No. 2 has addresses L1 to L20 and R1 to R20
(when the optional tray is used). There are 67 addresses in all. (When the optional tray is not used,
there are 47 addresses.)
∗ Table No. 2 can support not only tray feeders but also the feeder table or the manual tray
(option). When the feeder is set, addresses No. 1 to 27 will be made.
3. FeederType
The motion of the machine varies according to the feeder types. Specify the type in this field.
4. PartsName
PartsName registered in the feeder layout list is displayed.
5. ChipName
ChipName registered in the feeder layout list is displayed.
6. Deep (For tape feeders only)
Choose the type of tape that is packing chips.
This data is necessary because the height that chips are picked up varies according to the packing
type of chips.
• Emboss Chips are picked up at the height that they are fed by the feeder.
• Paper Chips are picked up at the height that they are fed by the feeder adding the height of
the chip thickness.
4H4C-E-PMA01-A03-01
Stock Data
1
27
4H4C-604E
Tape Feeder
Tray Feeder
444C-623E
002UC0AA
Paper
Difference of Pickup Height
Emboss
