Page 55
301
CM
4H4C-E-PMA01-A03-00
Stock Data
12. Click on the “Layout” field of the
address that the chip is set.
• [SelectFeederLayoutList] window opens.
13. Select a chip to input, and then click
on Select .
• [SelectFeederLayoutList] window closes, and
the selected chip is set.
14. Input all the chips to mount into the
stock data by repeating steps 4 to 13.
15. Click on Close .
• The screen returns to the main menu.
4H4C-EPt-EdSd-009
4H4C-EPt-EdSd-014
4H4C-EPt-EdSd-015
Page 56
10 Nozzle Changer Data
10-1 Nozzle Changer Data
CM301 is equipped with one nozzle changer for each table.
Nozzle changer data shows the order of nozzles arranged in the nozzle changer. Nozzle setting
position is specified by the changer No. (11 to 43).
When the chip to mount is changed, CM301 changes nozzles on the basis of the nozzle changer
data.
Therefore, this data must completely agree with the actual arrangement.
10-2 Editing Nozzle Changer Data
1. Click on NozzleChanger .
• [NozzleChanger] window opens.
To the next page
4H4C-E-PMA01-A04-02
4H4C-EPt-EdNs-001
4H4C-EPt-Ed-001
Page 57
301
CM

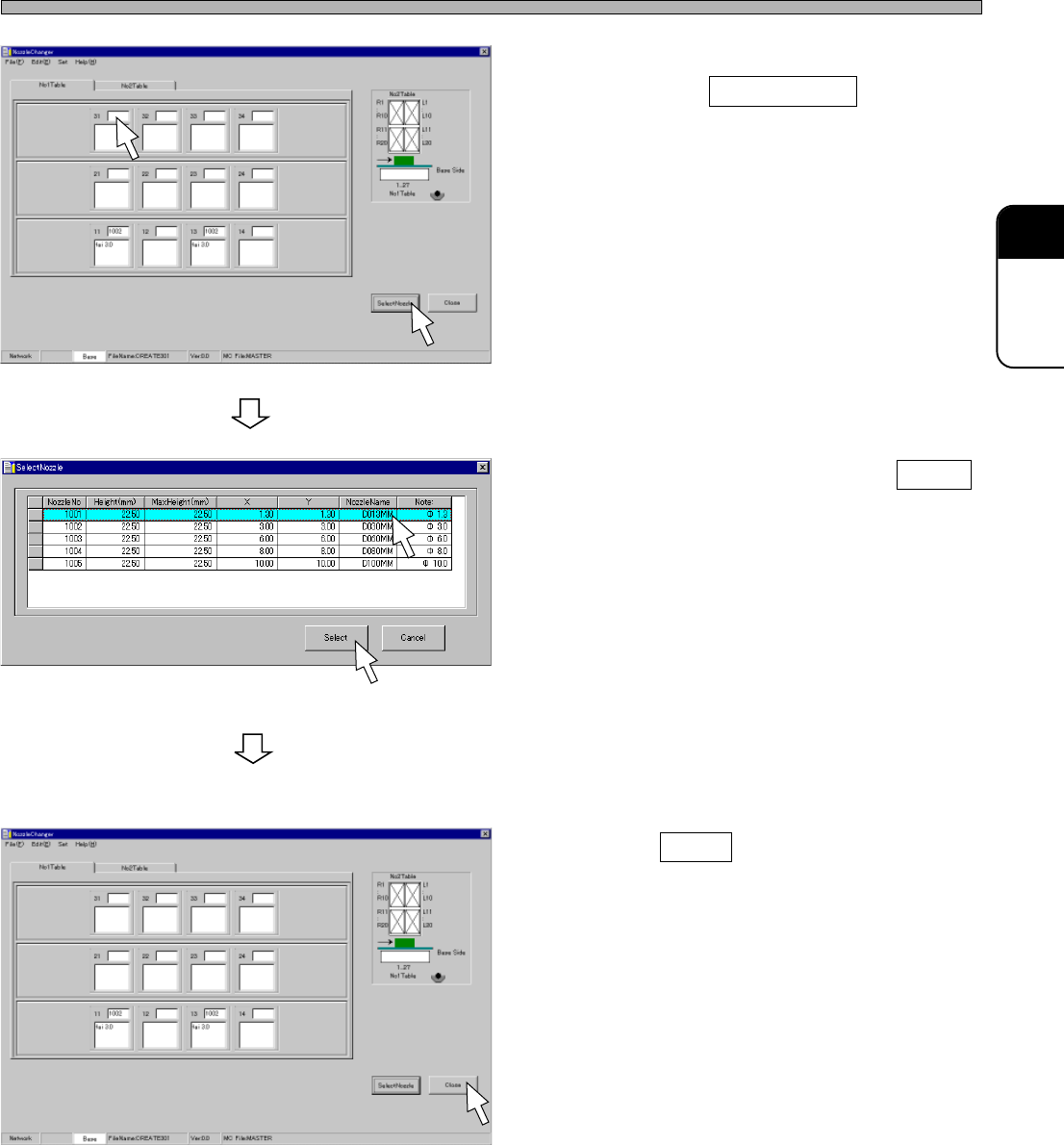

2. Choose a table No. and a nozzle No.,
then click on SelectNozzle .
• [SelectNozzle] window opens.
3. Choose a nozzle, and click on Select .
• The nozzle is registered.
4. Register all nozzles by repeating the
steps from 2. to 3.
5. Click on Close .
• The main menu is displayed.
Nozzle Changer Data
4H4C-E-PMA01-A04-02
4H4C-EPt-EdNs-001
4H4C-EPt-EdNs-002
4H4C-EPt-EdNs-003
