Page 62 4H4C-E-PMA01-A04-01 12 Block Attribute Data 12-1 Block Attribute Data 1. BL (Block No.) 2. BAD (Defective Block) 3. OX, OY (Block Origin) 4. BX, BY (Defective Block Mark) 5. ROT (Block Rotation) The descriptions …
Page 61
301
CM
4H4C-E-PMA01-A04-02
Block Data
4. Click on next to PartsName field.
• [SelectFeederLayoutList] window opens.
5. Choose a chip, and click on Select .
• [SelectFeederLayoutList] window closes, and
the chosen PartsName is set.
6. Enter a comment.
7. Set the order of priority.
• Select “Middle”, “High” or “Low”.
8. Enter all coordinates and all
PartsNames in block data by repeat-
ing the steps from 2. to 7.
9. Click on Close .
• The main menu is displayed.
4H4C-EPt-EdBl-004
4H4C-EPt-EdBl-005
4H4C-EPt-EdBl-006
4H4C-EPt-EdBl-001
Page 62
4H4C-E-PMA01-A04-01
12 Block Attribute Data
12-1 Block Attribute Data
1. BL (Block No.)
2. BAD (Defective Block)
3. OX, OY (Block Origin)
4. BX, BY (Defective Block Mark)
5. ROT (Block Rotation)
The descriptions are as follows.
1. BL (Block No.)
This shows block No.
2. BAD (Defective Block)
When you have fourd a defective block in advance, you can prohibit the block from being mounted
by checking off the check box in BAD field. When the problem is solved, you can withdraw the
prohibition only by removing the check in the box. You do not need to sort data again.
To prohibit mounting, check off the check box.
To withdraw the prohibition, remove the check.
444C-EPt-EdBa-001
Page 63
301
CM
4H4C-E-PMA01-A04-01
Block Attribute Data
3. OX, OY (Block Origin)
The block origin is the data that is used to position blocks. Enter the coordinates of each block
origin in OX and OY fields. The coordinates are represented on the basis of Coordinates and Origin
Offset in board data.
4. BX, BY (Defective Block Mark)
BX and BY show the coordinates of the defective block mark,which is marked to prohibit mounting
of the block judged as defective at the previous processes.
The coordinates of each defective block mark are represented on the basis of Coordinates and
Origin Offset in board data, not on the basis of the block origin.
To use this function, you need to turn ON “DetectBadBlockMark” in Function Switches.

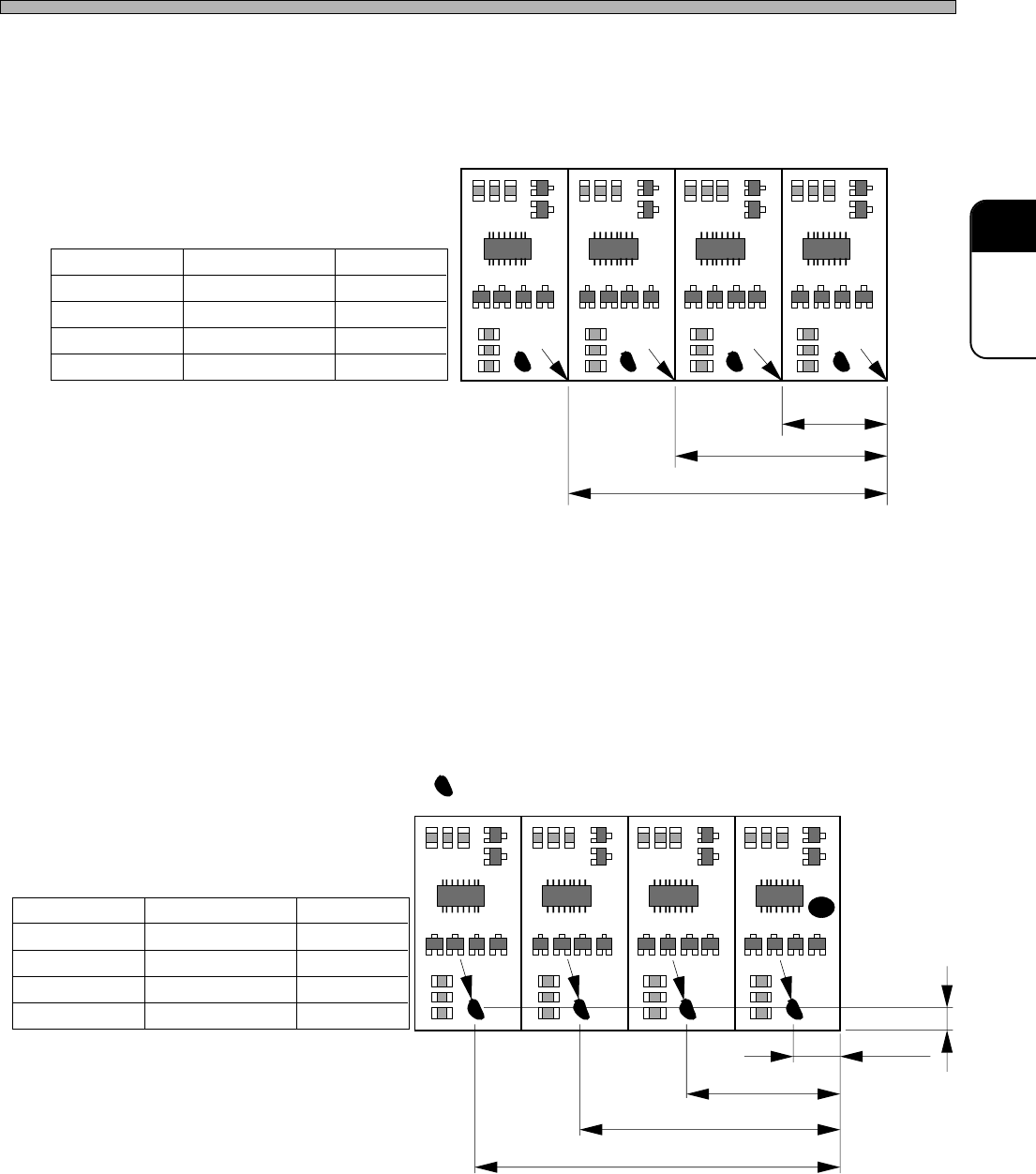

4th Block 3rd Block 2nd Block 1st Block
ORG.X2
ORG.X3
ORG.X4
1st Block
2nd Block
3rd Block
4th Block
OX
0
ORG.X2
ORG.X3
ORG.X4
OY
0
0
0
0
3Y3C-080E
: Defective Block Mark
1st Block
2nd Block
3rd Block
4th Block
BX
BAD.X1
BAD.X2
BAD.X3
BAD.X4
BY
BAD.Y
BAD.Y
BAD.Y
BAD.Y
BAD.Y
BAD.X1
BAD.X2
BAD.X3
BAD.X4
3Y3C-081E
