Page 60 1 1-2 Editing Block Data 1. Click on BlockData . • [BlockData] window opens. 2. Choose “AddNewLine” from “Edit” on menu bar . • A new row is created. 3. Enter the coordinates (X, Y) and the mount angle (A). 4H4C-…
Page 59
301
CM
4H4C-E-PMA01-A04-02
Block Data

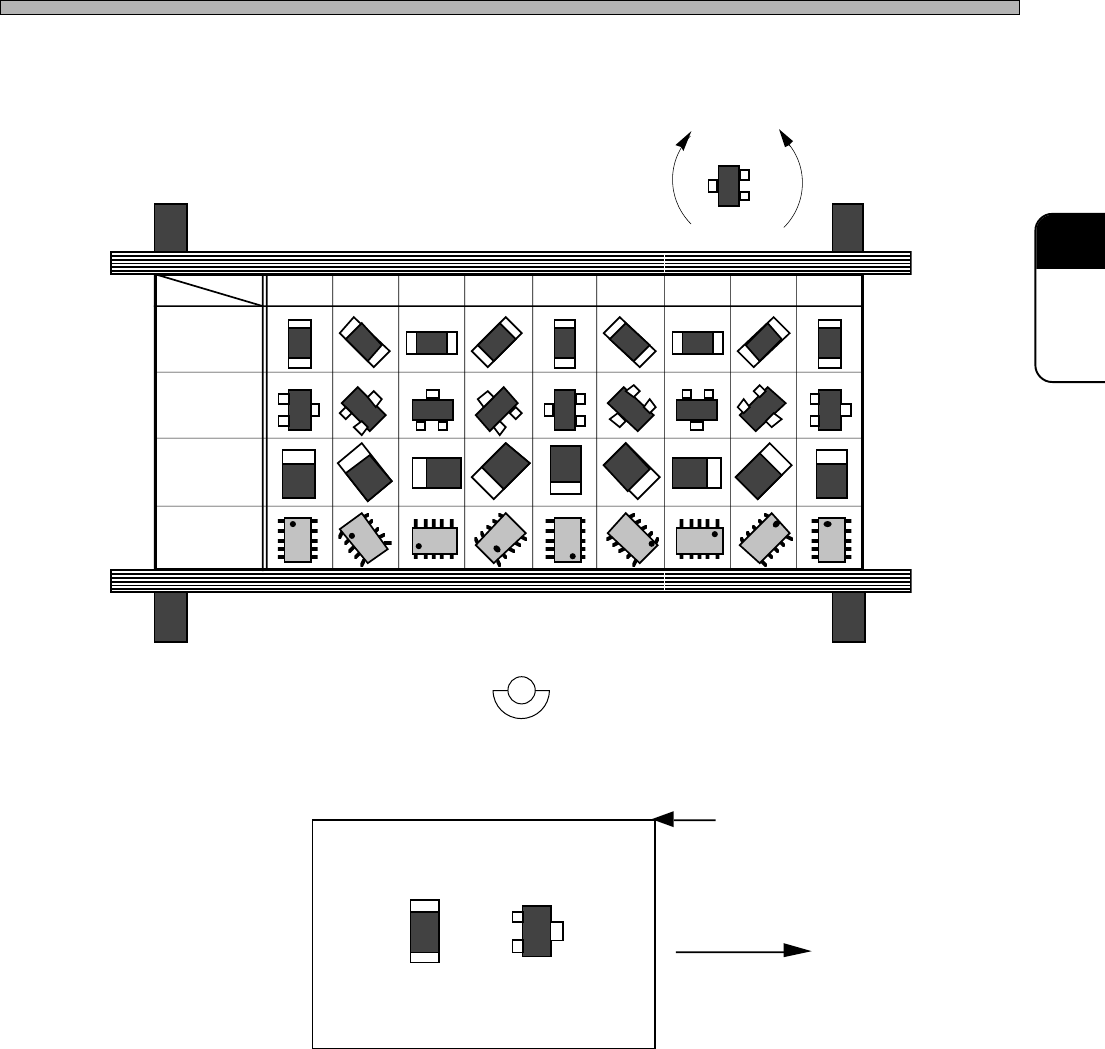

4. A(degree)
Enter the mount angle of each mount point.
5. PartsName
PartsName registered in the feeder layout list is displayed.
6. Note
You can enter the comment on each mount point. For example, when you enter the chip ID No. on
the pattern of the board, it will be easy to collate chips with the data.
7. Priority
Comparing the mount point with the other ones, you can specify whether to mount the chip at this
mount point earlier or later. For example, this is used to mount chips under the large chip.
AB
+-
180°
135°
90° 45° 0° -45° -90° -135°
-180°
+
+
+
+
+
+
+
+
+
ノズルチェンジャノズルチェンジャ
• The angle of the chip A is -180°, 0° or 180°.
• The angle of the chip B is -180° or 180°.
4H4C-614E
Flowing Direction
Origin of Mount Coordinates
Board
Non-
polarized
square chip
Transistor
Tantalum
capacitor
SOP
0.1° unit
Angle
Chip
Front Side
Page 60
11-2 Editing Block Data
1. Click on BlockData .
• [BlockData] window opens.
2. Choose “AddNewLine” from “Edit” on
menu bar.
• A new row is created.
3. Enter the coordinates (X, Y) and the
mount angle (A).
4H4C-E-PMA01-A04-02
Block Data
To the next page
4H4C-EPt-Ed-001
4H4C-EPt-EdBl-003
4H4C-EPt-EdBl-004
Page 61
301
CM
4H4C-E-PMA01-A04-02
Block Data
4. Click on next to PartsName field.
• [SelectFeederLayoutList] window opens.
5. Choose a chip, and click on Select .
• [SelectFeederLayoutList] window closes, and
the chosen PartsName is set.
6. Enter a comment.
7. Set the order of priority.
• Select “Middle”, “High” or “Low”.
8. Enter all coordinates and all
PartsNames in block data by repeat-
ing the steps from 2. to 7.
9. Click on Close .
• The main menu is displayed.
4H4C-EPt-EdBl-004
4H4C-EPt-EdBl-005
4H4C-EPt-EdBl-006
4H4C-EPt-EdBl-001
