Page 28 8. V acuum Rise Time (ms) Indicates the time until a vacuum turns ON from just before the head has finished being lowered to pick up the chip. ∗ Both the tray and the tube have a learning function. 9. V acuum Bre…

100%1 / 90
Page 27
301
CM
4 Nozzle Data

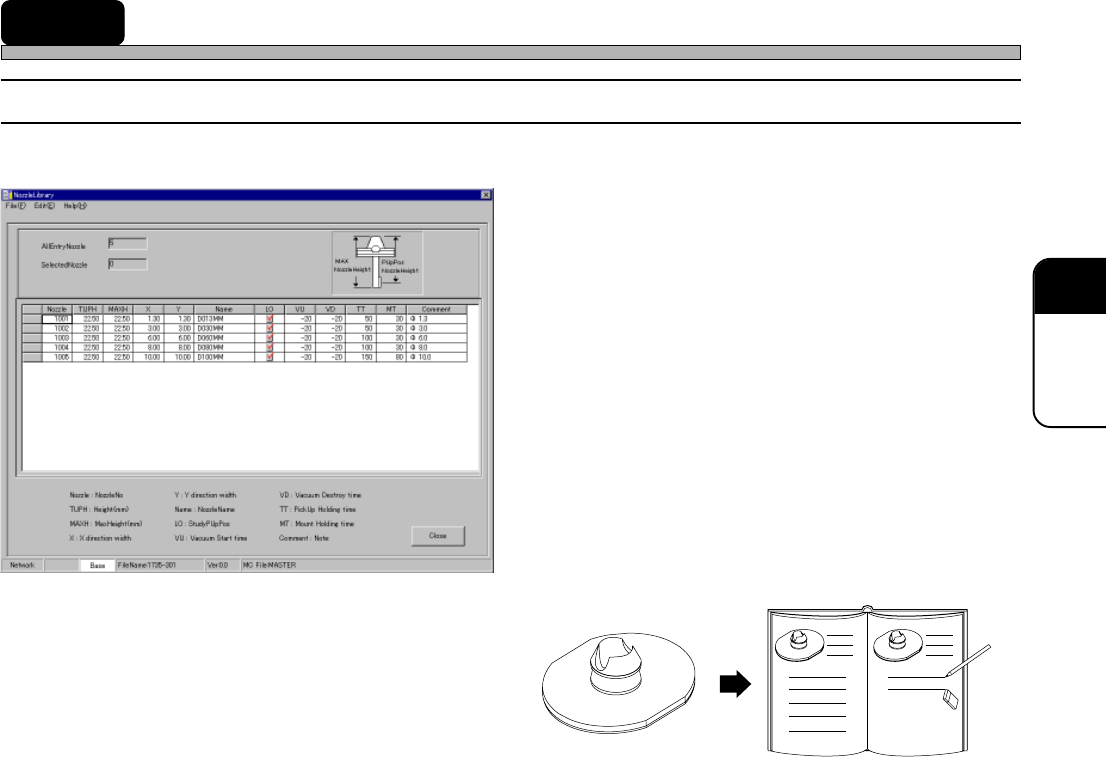

4-1 Nozzle Data
Custom nozzle library
1. Nozzle : Nozzle No.
2. TUPH : Nozzle Height (mm)
3. MAXH : Maximum Nozzle Hieght (mm)
4. X : Length in the X-axis Direction
(mm)
5. Y : Length in the Y-axis Direction
(mm)
6. Name : Nozzle Name
7. LO : Enabling/Disabling Pick-up
Position Learning
8. VU : Vacuum Rise Time (ms)
9. VD : Vacuum Break Time (ms)
10. TT : Pick-up Holding Time (ms)
11. MT : Mount Holding Time (ms)
12. Comment : Comment
1. Nozzle No.
Indicates a nozzle recognition No.
2. Nozzle Height (mm)
Indicates the height from the top of the
nozzle to a pick-up surface.
3. Maximum Nozzle Height (mm)
Indicates the overall height of the nozzle.
∗ This is supported when the tip of the nozzle is below a pick-up surface.
The maximum nozzle height of the standard nozzle is 22.5 mm. However, if the value of the pick-up
position Z becomes lower than -3.00 mm, the special nozzle is required so as not to interfere with
the adjoining feeders.
4. Length in the X -axis Direction (mm)
Indicates the length in the X-axis direction when the nozzle is seen from its top.
5. Length in the Y -axis Direction (mm)
Indicates the Iength in the Y-axis direction when the nozzle is seen from its top.
6. Nozzle Name
Indicates the name of the nozzle.
7. Enabling/Disabling Pick-up Position Learning
Indicates whether or not the pick-up position learning is performed.
444C-602E
4H4C-EPt-EdNl-001
4H4C-E-PMA01-A02-01
Page 28
8. Vacuum Rise Time (ms)
Indicates the time until a vacuum turns ON from just before the head has finished being lowered to
pick up the chip.
∗ Both the tray and the tube have a learning function.
9. Vacuum Break Time (ms)
Indicates the time until a vacuum starts to break from just before the head has finished being
lowered to mount the chip.
10. Pick-up Holding Time (ms)
Indicates the time during the head is lowered to pick up the chip.
11. Mount Holding Time (ms)
Indicates the time during the head is lowered to mount the chip.
12. Comment
4H4C-E-PMA01-A02-02
Nozzle Data
Page 29
301
CM

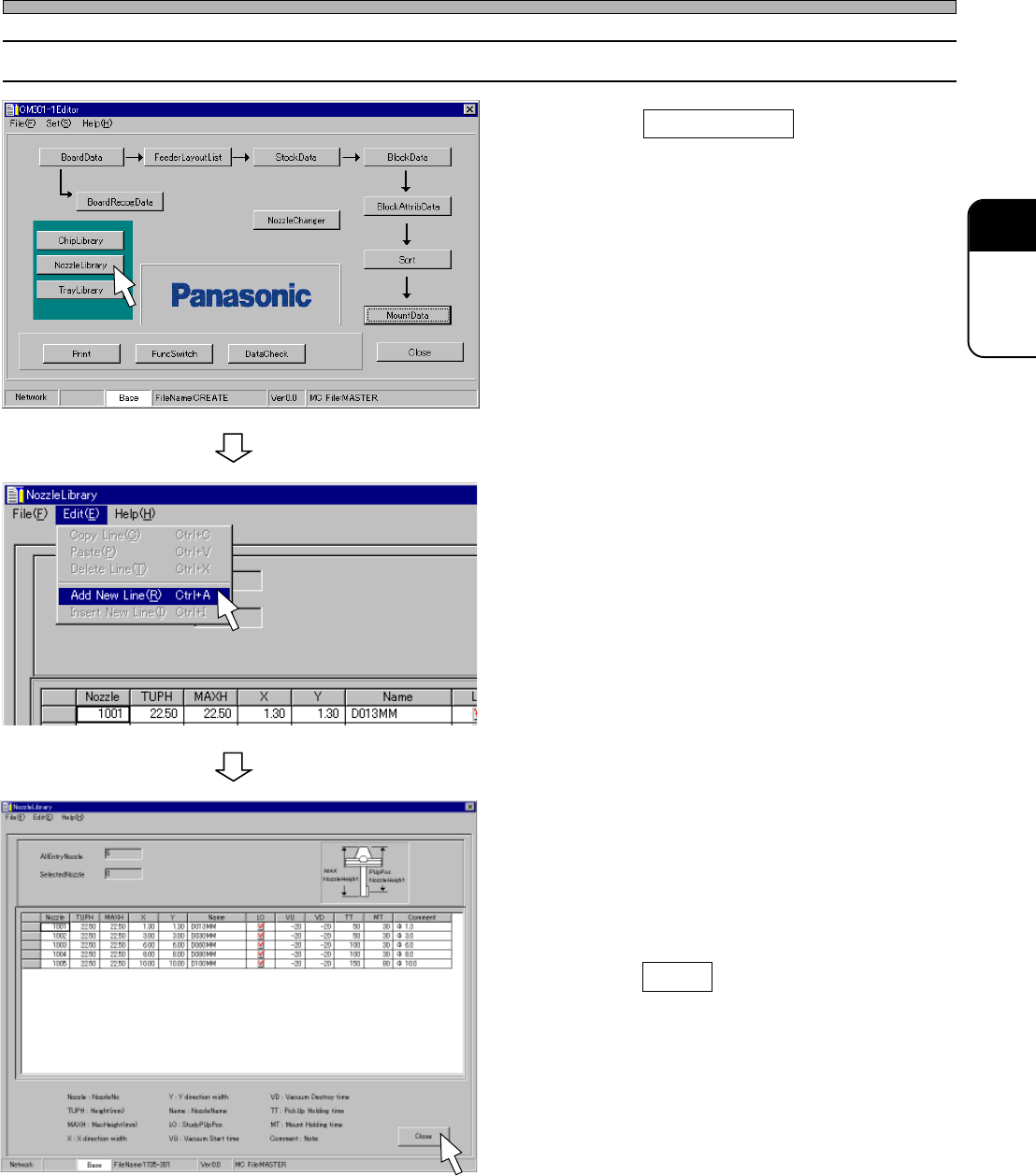

4-2 Editing Nozzle Data
1. Click on NozzleLibrary .
• [NozzleLibrary] window opens.
2. Choose “Add New Line” from “Edit”
on the menu bar.
3. Enter from NozzleNo to TargetChip in
due order.
4. Click on Close .
• The main menu is displayed.
Nozzle Data
4H4C-E-PMA01-A02-00
4H4C-EPt-Ed-001
4H4C-EPt-EdNl-002
