Page 73 301 CM 15 Checking Data 15-1 Data Check This is used to check whether there is any trouble in the data between chip data and mount data. 15-2 Executing Data Check 1. Click on DataCheck . • [DataCheck] window open…
Page 72

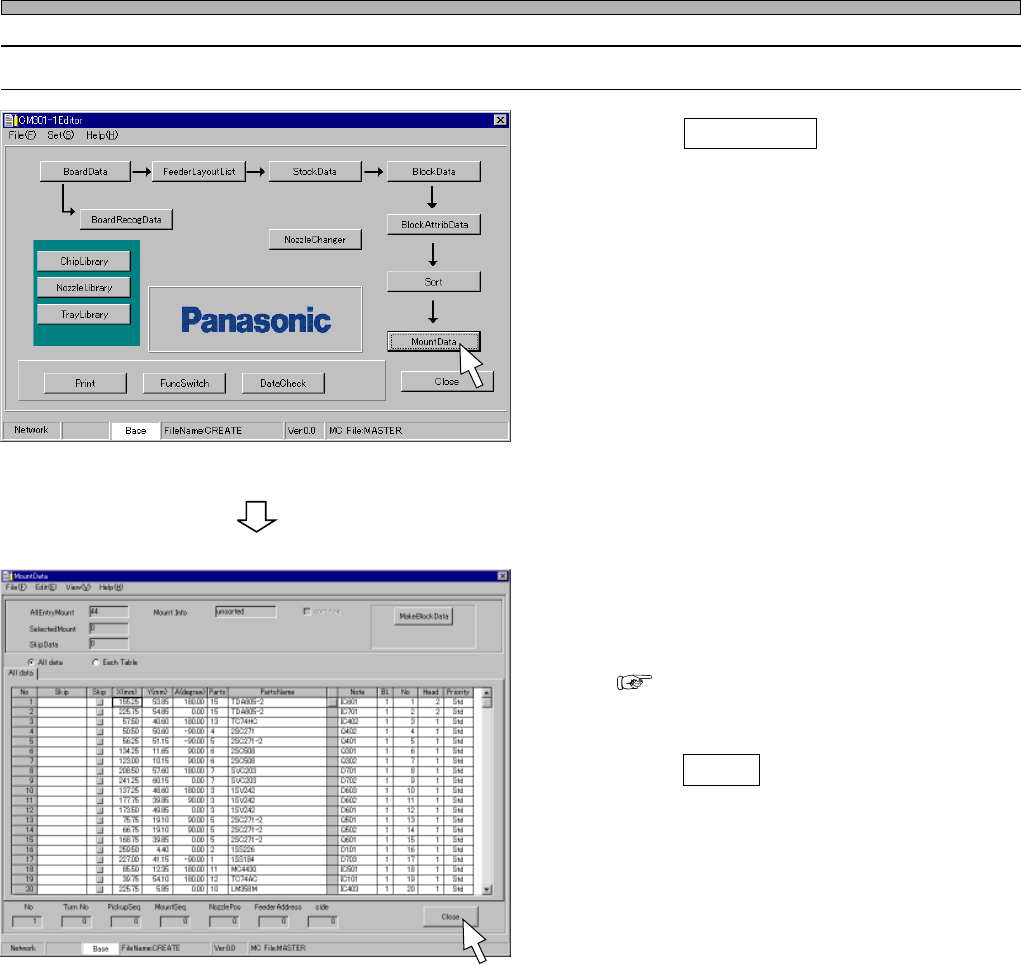

14-2 Editing Mount Data
1. Click on MountData .
• [MountData] window opens.
• When sorting has been completed, block data
have already been expanded.
2. Check and modify the data.
• Use the same steps as those for block data.
( 11-2)
3. Click on Close .
• The main menu is displayed.
Mount Data
4H4C-E-PMA01-A05-03
4H4C-EPt-Ed-001
4H4C-EPt-EdMo-001
Page 73
301
CM

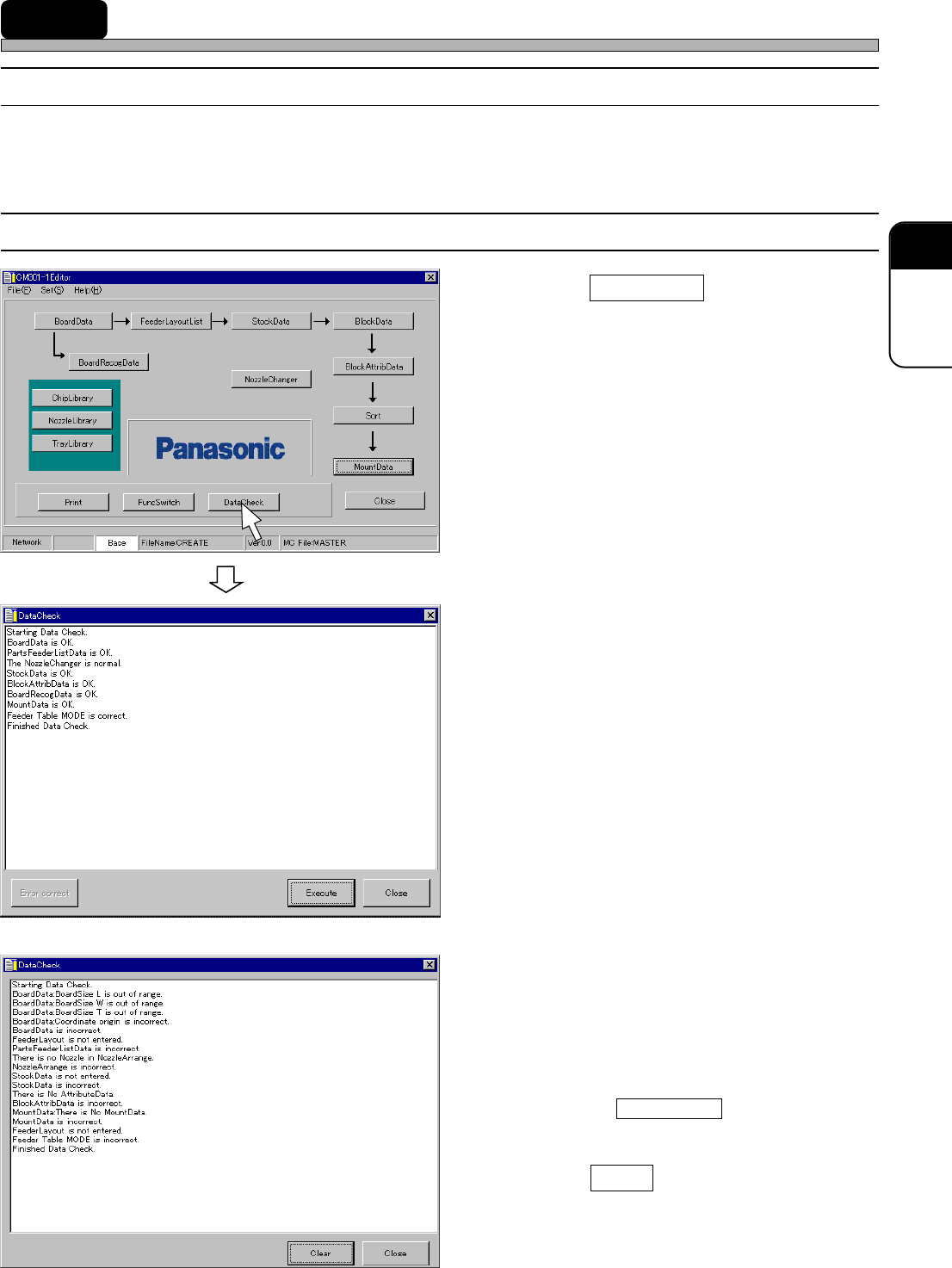

15 Checking Data
15-1 Data Check
This is used to check whether there is any trouble in the data between chip data and mount data.
15-2 Executing Data Check
1.
Click on DataCheck .
• [DataCheck] window opens, and data check
starts.
2A. Confirm the (correct) result.
• When all the data are correct, data editing is
complete.
2B. Confirm the (incorrect) result.
• If there are any errors in data, modify the data
displayed as incorrect, and then perform data
check again.
∗∗
∗∗
∗ Clicking on Error correct opens the edit
screen for the error data.
3. Click on Close .
• The main menu is displayed.
444C-EPt-EdDc-002
or
4H4C-E-PMA01-A05-02
4H4C-EPt-Ed-001
4H4C-EPt-EdDc-001
Page 74
16 Function Switches
16-1 Function Switches
4H4C-601TE
4H4C-E-PMA01-A05-02
tesebotmetItesebotmetI
tesebotmetI
tesebotmetItesebotmetI etatsdelbaneninoitcnuFetatsdelbaneninoitcnuF
etatsdelbaneninoitcnuF
etatsdelbaneninoitcnuFetatsdelbaneninoitcnuF
kraMdraoBdaBtceteD .skramdraobevitcefedtcetedottonrorehtehwyficepS
kraMkcolBdaBtceteD .skramkcolbevitcefedtcetedottonrorehtehwyficepS
goceRtnuoM )desutoN(.stnioptnuomezingocerottonrorehtehwteS
goceRdraoB.sdraobezingocerottonrorehtehwteS
rorrEpUkciPtceteD .rorrepu-kcipehttcetedottonrorehtehwyficepS
goceRnocpihC
CIrednutnuomotspihcehttonrorehtehwezingocerottonrorehtehwyficepS
)desutoN(.detnuomneebevahspihc
4H4C-EPt-EdSs-001
