2. Board Recognition Point
∗∗
∗∗
∗ Recognition Point Coordinates (X, Y)
Enter the coordinates of each board recognition point.
When entering ABC(D) points, they must be in alphabetical order and clockwise.
The coordinates are represented on the basis of Coordinates and OriginOffset.
∗∗
∗∗
∗ REF and SelectREF
REF is the No. that specifies the recognition program.
Board Recognition Data
A
B
C
Clockwise
433C-079E
Page 37
301
CM
7-2 Editing Board Recognition Data
∗ When BoardRecog is disabled in FunctionSwitches, you can not edit this data.
1. Click on BoardRecogData .
• [BoardRecogData] sheet on [BoardData]
window opens.
2. Select BoardRecogMode.
3. Enter the coordinates of
BoardRecogA point.
444C-EPt-EdBr-002
444C-EPt-EdBr-004
To the next page
4H4C-E-PMA01-A03-01
Board Recognition Data
4H4C-EPt-Ed-001
Page 38
4H4C-E-PMA01-A03-01
444C-EPt-EdBr-004
444C-EPt-EdBr-003
444C-EPt-EdBr-004
Board Recognition Data

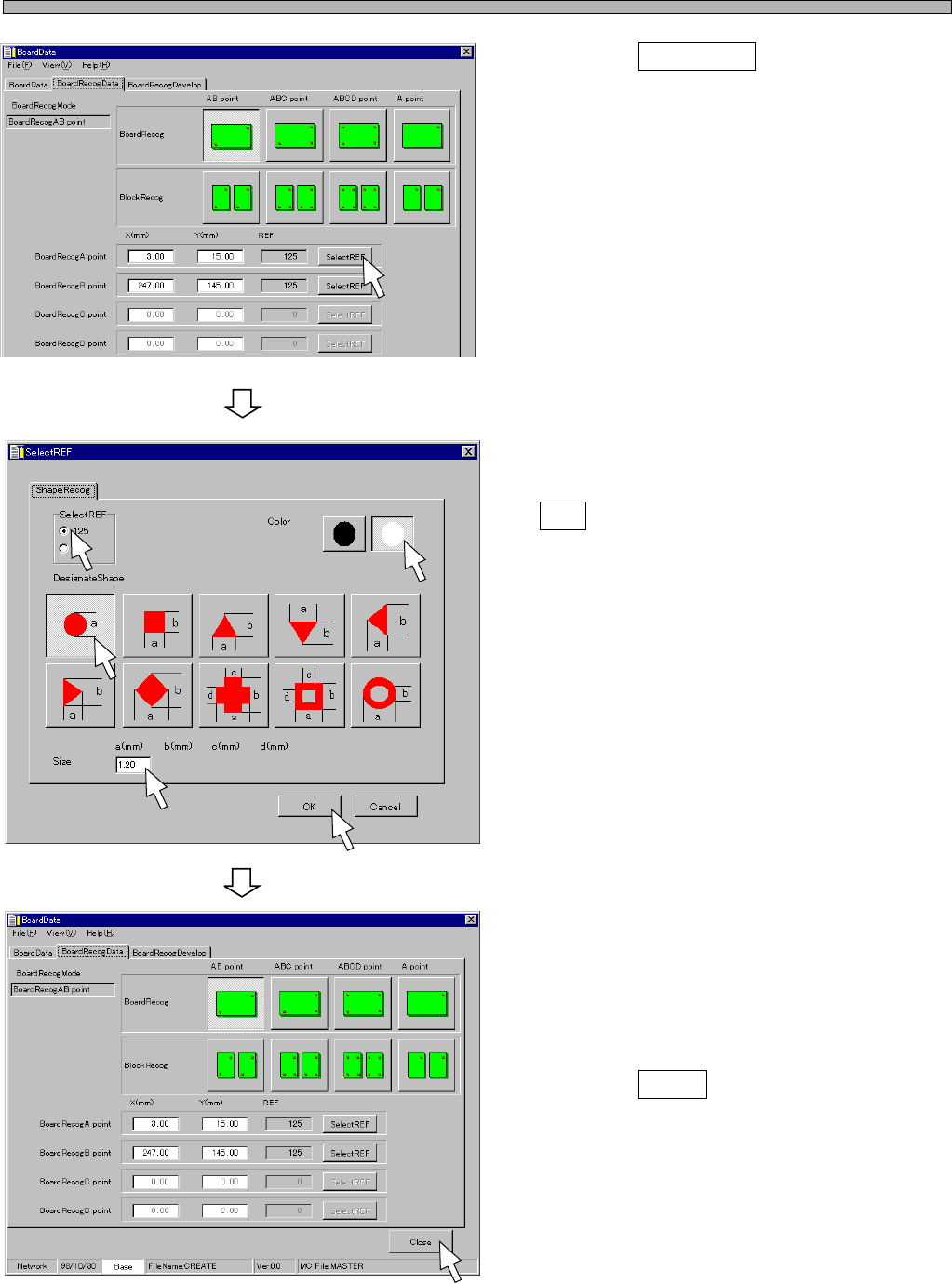

4. Click on SelectREF .
• [SetREF] window opens.
5. Choose REF No., DesignateShape
and Color, enter Size, and click on
OK .
• [SetREF] window closes.
6. Input the data of from B point onward
by repeating the steps from 3. to 5.
7. Click on Close .
• The main menu is displayed.
