Student Guide HS-50 Advanced I 06/2002 Edition

1 Safety Consideration

1.1.2 Safety instructions for changing the component table

WARNING Never reach into the gaps between the component changeover table and

the placement system frame while the machine is running (item 1 in Fig. 1.1 - 2). 1

WARNING Always check that the component table is docked on the placement sys-

tem before connecting or disconnecting the power cable for the component changeover table at

the socket on the placement system (item 2 in Fig. 1.1 - 2). 1

WARNING NEVER connect the connecting cable for the component table to the

socket on the placement system and then operate the component table outside the machine via

the compressed air control unit (item 3 in Fig. 1.1 - 2). 1

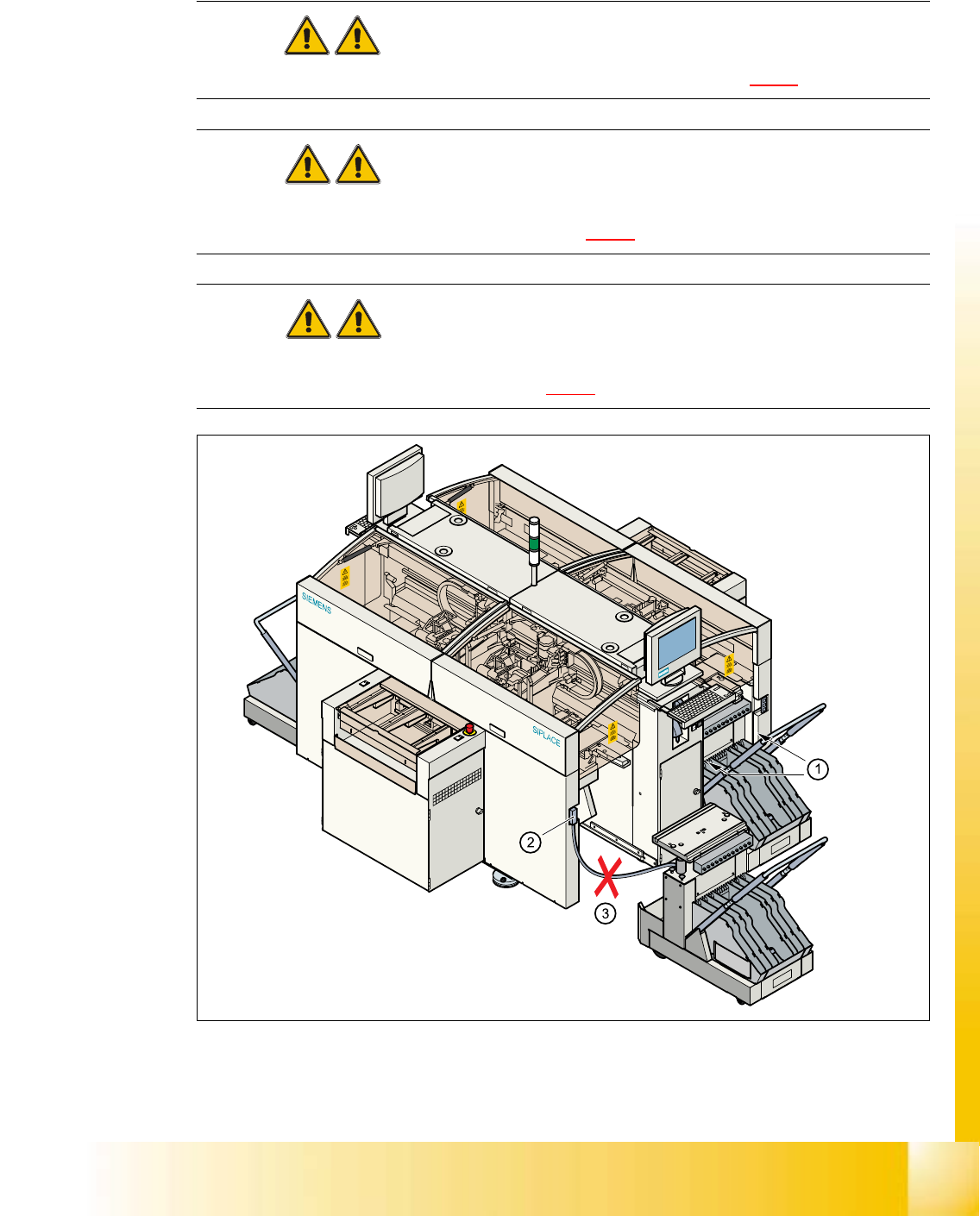

Fig. 1.1 - 2 Safety instructions for the component table

06/2002 Edition Student Guide HS-50 Advanced I

1 Safety Consideration

1.2 ESD guidelines

1.2.1 What does ESD mean?

Almost all of the modules in use today are equipped with highly integrated MOS blocks and com-

ponents. The manufacturing techniques used mean that these electronic components are ex-

tremely sensitive to overvoltage and thus to electrostatic discharge. 1

The abbreviation for such modules is 'ESD' (Electrostatic Sensitive Device). This is used interna-

tionally, although the German abbreviation 'EGB' may also be seen. 1

The following symbol on cabinet rating plates, racks or packaging indicates that components

which are sensitive to electrostatic discharge have been used and thus that the modules con-

cerned are also touch-sensitive. 1

ESDs can be destroyed by voltages and power levels that are far below the level

that can be perceived by humans. Such voltages occur if a person touches a com-

ponent or module without grounding themselves. Components that are exposed

to such overvolt-ages do not generally appear to be defective immediately - incor-

rect behavior starts after the component or module has been in operation for some time. 1

1.2.2 Important measures to protect against static charging

➠ Most plastics can easily become charged and must therefore be kept away from at-risk com-

ponents.

➠ Always ensure that people, the workplace and packaging are safely grounded when handling

electrostatic sensitive components.

1.2.3 Handling ESD modules

Do not touch electronic modules unless it is absolutely essential to do so in order to carry out other

work. If it is necessary, make sure that you do not touch the pins or printed conductors when you

pick up flat modules. 1

Do not touch components unless 1

➠ you are constantly grounded by an ESD wrist strap or

➠ you are wearing ESD shoes or ESD shoe grounding strips on an ESD floor.

Always discharge yourself before you touch an electronic module. To do this, simply touch a con-

ductive and grounded object immediately before you touch the module (such as unpainted parts

of a switch cabinet, a water pipe, etc.). 1

Do not allow modules with chargeable and highly insulating materials to touch one another, e.g.

plastic films, insulating table surfaces or items of clothing made from synthetic fibers. 1

Student Guide HS-50 Advanced I 06/2002 Edition

1 Safety Consideration

Always place the modules on a conductive surface (table with an ESD coating, conductive ESD

foam, ESD bag or container). 1

Do not bring modules near visual display units, monitors or televisions. Keep them at least 10 cm

away from the screen. 1

1.2.4 Measurements and modifications to ESD modules

Do not take measurements on such modules unless

➠ the measuring device is grounded (e.g. via PE conductors) or

➠ you discharge the measuring head just before taking measurements with a potential-free mea-

suring device (e.g. by touching an unpainted metal part of the controller casing).

➠ Always use an grounded soldering iron if you carry out any soldering work.

1.2.5 Shipping ESD modules

➠ Always store modules and components in conductive packaging (e.g. metallized plastic bags

or metal sleeves) and ship them in conductive packaging.

If the packaging is not conductive, place the modules in a conductive envelope before pack-

aging. (Use ESD bags, domestic aluminum foil or paper, for example. NEVER use plastic bags

or film). 1

➠ If the module has integral batteries, ensure that the conductive packaging does not touch or

short-circuit the battery terminals and, if necessary, first cover the terminals with insulating tape

or material.
