10 COT Insert
10.6 Replacing the Empty Tape Duct Assembly [03052576-xx]
244 Service Manual SIPLACE TX Series 06/2017
DIP switch S2 [03059783-04]
Switch Status Signal Name Description
S2.1 ON/OFF FCU_ENV3 ON: test mode for reject box switched off
OFF: test mode for reject box switched on
S2.2 OFF FCU_ENV2 40-fold FCU
S2.3 ON/OFF FCU_ENV1 ON: without insert control, with virtual but-
ton
OFF: with insert control, without virtual but-
ton
S2.4 ON/OFF FCU_ENV0 ON: with tape cutter and with nozzle
changer functionality
OFF: without tape cutter and without nozzle
changer functionality
If an "X-FCU / X-Series" [03059623-xx] is fitted as replacement for an "FCU X-Series" [03020068-
xx] in the "COT insert X-Series" or at the "Docking station for component trolley SIPLACE X", you
need to set the DIP switch as follows:
Switch Status Comment
S2.1 ON Test mode for reject bin switched off
S2.2 OFF FCU for 40 feed tracks
S2.3 OFF COT insert control with pushbutton / without button GUI (vir-
tual).
S2.4 OFF "HW version 6" meaning without tape cutter and nozzle
changer functionality
10.6 Replacing the Empty Tape Duct Assembly [03052576-xx]
Parts, equipment and tools
Select the required spare part:
●
Empty-tape duct assembly standard TX assembly [03121375-xx]
●
Empty-tape duct, short TX assembly [03121376-xx]
Overview

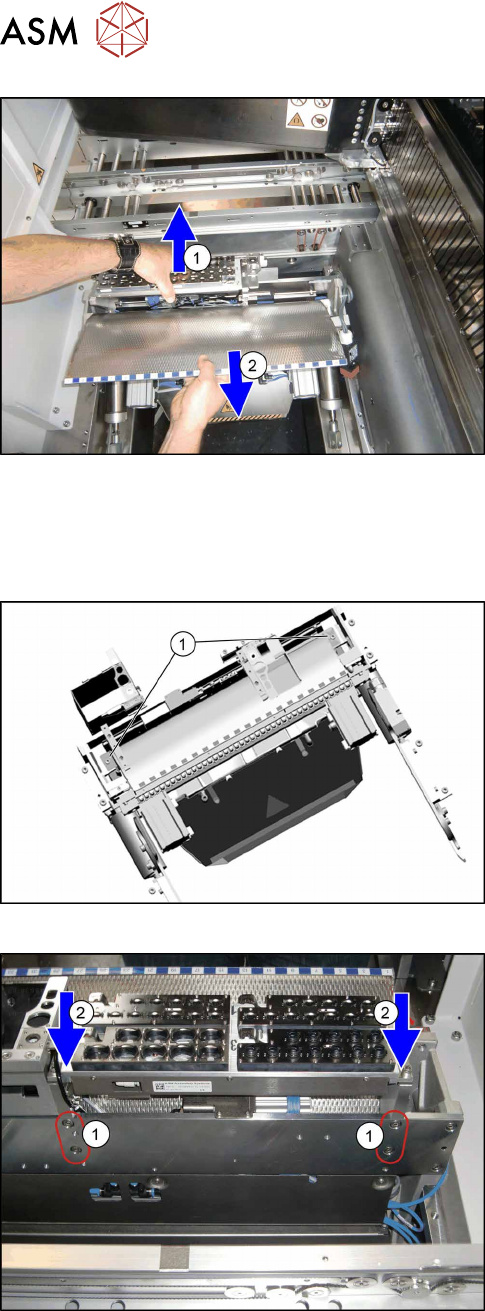

Fig.334: Empty tape duct assembly
1. Empty tape duct assembly
10 COT Insert
10.6 Replacing the Empty Tape Duct Assembly [03052576-xx]
Service Manual SIPLACE TX Series 06/2017 245
CAUTION
Risk of cutting
The cutter is located under the tape channel. The blades have very sharp edges.
► Do not reach into the cutter and make sure that it is never left unmonitored or freely
accessible.
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}15].
► Move out the COTi central unit from the machine about 50mm (see 10.3 "Replacing the COTi
Central Unit and Lifting Mechanics" [}235]).
Fig.335: Removing nozzle changer
► Remove the four screws(1) fastening the nozzle
changer carrier to the back of the COTi.
Fig.336: Empty tape duct fastening screws
► Remove the two screws(1) fastening the empty
tape duct assembly.
10 COT Insert
10.6 Replacing the Empty Tape Duct Assembly [03052576-xx]
246 Service Manual SIPLACE TX Series 06/2017
Fig.337: Removing empty tape duct
► Carefully lift the nozzle changer carrier(1) and
the empty tape duct assembly(2)off.
Pay attention to all the wires and cables leading
from the nozzle changer.
Installation
► Follow the removal instructions in reverse order for further installation. Also observe the fol-
lowing instructions:
Fig.338: Fixing empty tape duct
► Fix the new empty tape duct assembly with two
screws(1).
Fig.339: Refitting the nozzle changer
► Fasten the nozzle changer carrier from the back.
Press the nozzle changer carrier downwards(2),
while you tighten the four screws(1).
► Reassemble the complete COT central unit (see 10.3 "Replacing the COTi Central Unit and
Lifting Mechanics" [}235]).
► Check the nozzle changer height (see 9.2.1 "Setting the Nozzle Changer Height" [}228]) and
recalibrate the nozzle changer.
► Perform necessary calibrations for the location.
