Setting up and Commissioning
Configuration of JEDEC Tray Feeders in SIPLACE Pro 4.3.5 Configuration of the Setup – Setup Tree View
100 JEDEC Tray Feeder (JTF-ML)
4.3.5
4.3.5 Configuration of the Setup – Setup Tree View
Configuration of the Setup – Setup Tree View
4.3.5.1
4.3.5.1 Head Configurations on the SIPLACE TX 1 and TX2
Head Configurations on the SIPLACE TX 1 and TX2
The SIPLACE JTF-ML feeder may only be configured at location 1, with the following heads:
1. CPP_H
2. TwinHead
You can perform the table configuration if one of these heads is configured.
4.3.5.2
4.3.5.2 Table Configuration
Table Configuration
After you have configured one of the heads mentioned in Head Configurations SX1, SX2, X Series S
and X4i S, select the necessary table type that is the prerequisite for setting up a JEDEC tray feeder.
The table types are:
▪ SIPLACE SX1 and SIPLACE SX2 : MTF table 60 X
▪ SIPLACE X-Series S and SIPLACE TX-Series: MTF table 40 X
SIPLACE Pro table configurations (example of SIPLACE SX1/SX2)
Example:
► (1) Head type: CPP 12 2xxx
► (2) Head height: Due to selection of CPP 12 2xxx, select High.
► (3) Table type: Change Table
► (4) Confirm the selection of each table type and click on OK.
After the relevant table type has been selected, the options in the Camera and Nozzle Changer fields
are automatically disabled. For design reasons, these configuration options are no longer available after
the table type has been selected.
All cameras and nozzle changer configurations that are selectable are displayed as active.
Setting up and Commissioning
4.3.5 Configuration of the Setup – Setup Tree View Configuration of JEDEC Tray Feeders in SIPLACE Pro
JEDEC Tray Feeder (JTF-ML) 101
4.3.5.3
4.3.5.3 Configuring the JEDEC Tray Feeder on the Table
Configuring the JEDEC Tray Feeder on the Table

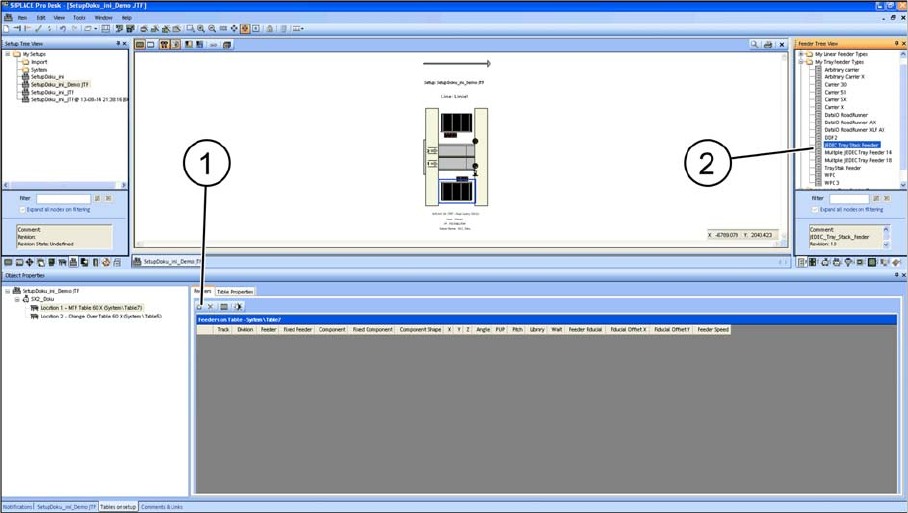

There are two ways to set up the JEDEC tray feeder on the table:
▪ Manually dragging the JTEDEC tray feeder onto the table (2).
▪ By selecting the Insert a new item into the collection (1) menu option.
Configuring the JEDEC Tray Feeder
The JEDEC tray feeder is always set on the track that is allowed for the machine.
This track cannot be changed.
▪ SIPLACE SX1/SX2: tracks 11 - 26
▪ SIPLACE X-Series S, location 3: tracks 1 – 15
▪ SIPLACE X-Series S, location 2: tracks 27 – 40
▪ SIPLACE TX-Series: tracks 29 – 40 (SIPLACE JTF-ML FDK)
Setting up and Commissioning
Configuration of JEDEC Tray Feeders in SIPLACE Pro 4.3.5 Configuration of the Setup – Setup Tree View
102 JEDEC Tray Feeder (JTF-ML)

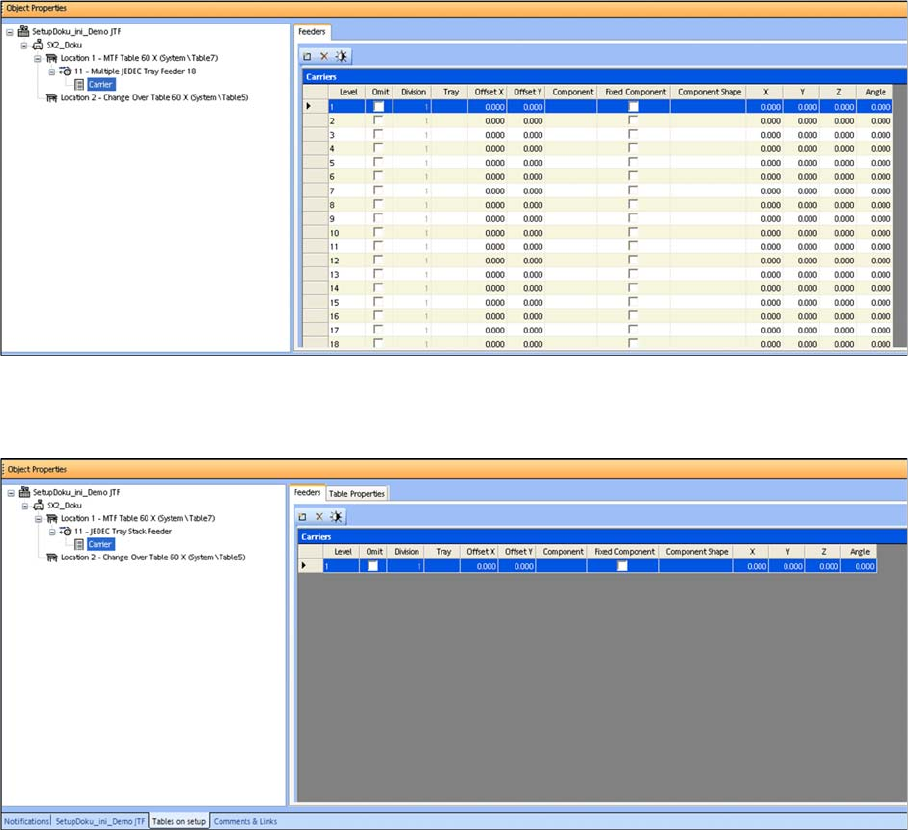

JEDEC Tray Feeder – Carrier Level
If a Multiple JEDEC tray feeder 18 (SIPLACE JTF-M/JTF-ML for thin trays) was selected, "Carrier" will
list the number of trays (18) as well as their settings and their component occupancy (per tray).
Only 14 trays are displayed for a Multiple JEDEC tray feeder 14 (SIPLACE JTF-M/JTF-ML for thick
trays).
Carrier Level SIPLACE JTF-M/JTF-ML
For a JEDEC tray stack feeder (SIPLACE JTF-S), Carrier shows only one tray, as all trays that are set
up in the JEDEC tray stack feeder must have the same components.
Carrier Level SIPLACE JTF-S
