Appendix
Excerpts from the Service Manual 7.1.2 Nozzle Changer Setting
122 JEDEC Tray Feeder (JTF-ML)
7.1.2.3
7.1.2.3 Jumpers on the Nozzle Changer
Jumpers on the Nozzle Changer
Overview
Preparation
Setting
► Set the correct value on the jumper for your head type, software and control method.

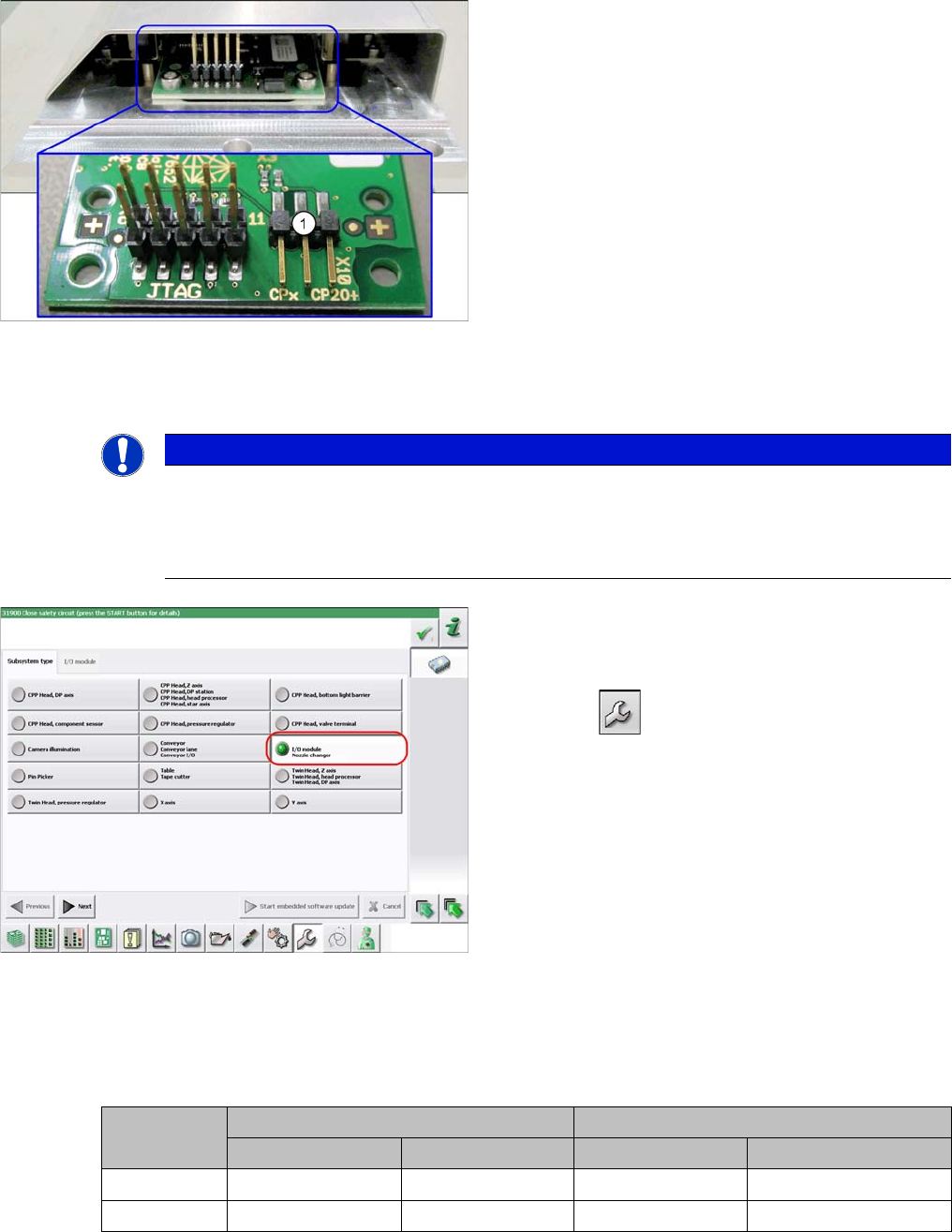

Nozzle Changer CP20P - Jumper X10
Jumper X10
Jumpers on the Nozzle Changer
1. Jumper X10
The jumper X10 needs to be set at the following nozzle
changers:
▪ Nozzle changer basic structure CPx/all assembly -
short [03103649-xx]
▪ Nozzle changer basic structure CPx/all assembly -
long [03103514-xx]
NOTICE
Before installation
Due to the design, this setting must be performed before installation in the machine.
► If the new nozzle changer is being fitted as a spare part in a machine with I/O module con-
trol, you will need to reconnect the jumper to pin 1-2.
Checking the I/A module control
To check whether the machine has I/O module control,
proceed as follows:
► Switch over to the operator level Service.
► Select the button.
► Select the button Embedded Software.
► Select the button Update Subsystem.
► If I/O module control is present, you will see the entry
Nozzle Changer at I/O Module.
Head SW <= 706.x SW >= 707.x
I/O controller XFCU I/O controller XFCU
CPx, DLM 1-2 1-2 1-2 2-3
C&P20 P --- --- --- 2-3 (factory settings)
