Setting up and Commissioning

4.2.6 Converting the Machine Protective Features Retrofitting in the SIPLACE TX-Series

JEDEC Tray Feeder (JTF-ML) 89

4.2.6

4.2.6 Converting the Machine Protective Features

Converting the Machine Protective Features

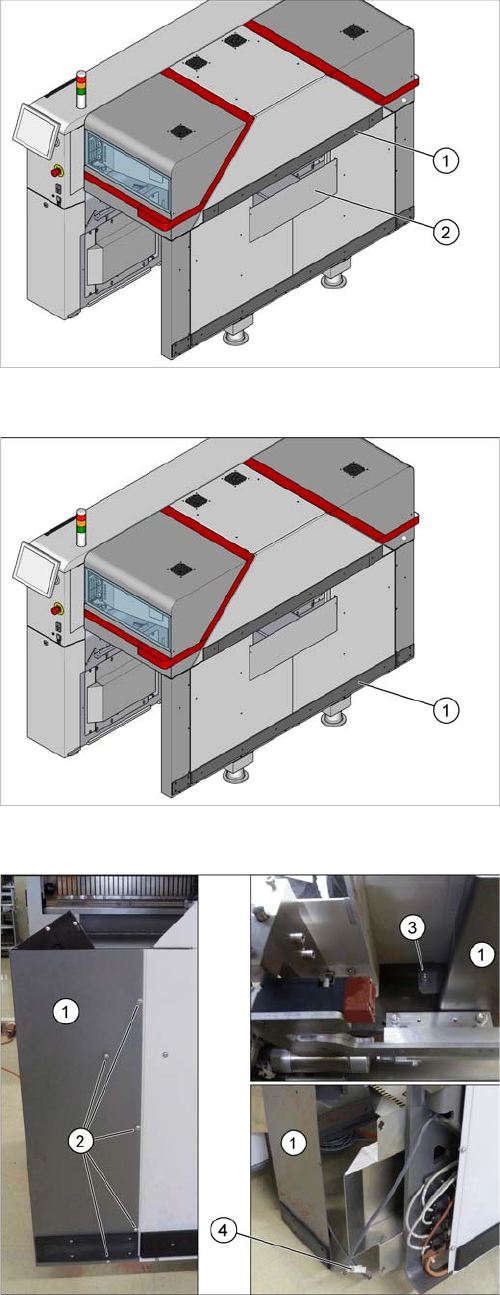

Removing the hand guard

1. Top rail with top hand guard below it

2. Bottom hand guard

► For removal of the following parts, read the relevant

section in the Assembly Instructions "Input and Out-

put Conveyor Extension SIPLACE TX"

[00198141-xx]

Removing the bottom rail

► Remove the bottom rail (1).

Removing the corner cover

Remove the corner cover (1). Proceed as follows:

► Remove the screws (2) on the outer side.

► Remove the screw (3) on the inner side.

Hold the corner cover firmly while doing this, so that

it does not accidentally fall down.

► Loosen the connector (4) and place the corner cover

to one side.

Setting up and Commissioning

Retrofitting in the SIPLACE TX-Series 4.2.6 Converting the Machine Protective Features

90 JEDEC Tray Feeder (JTF-ML)

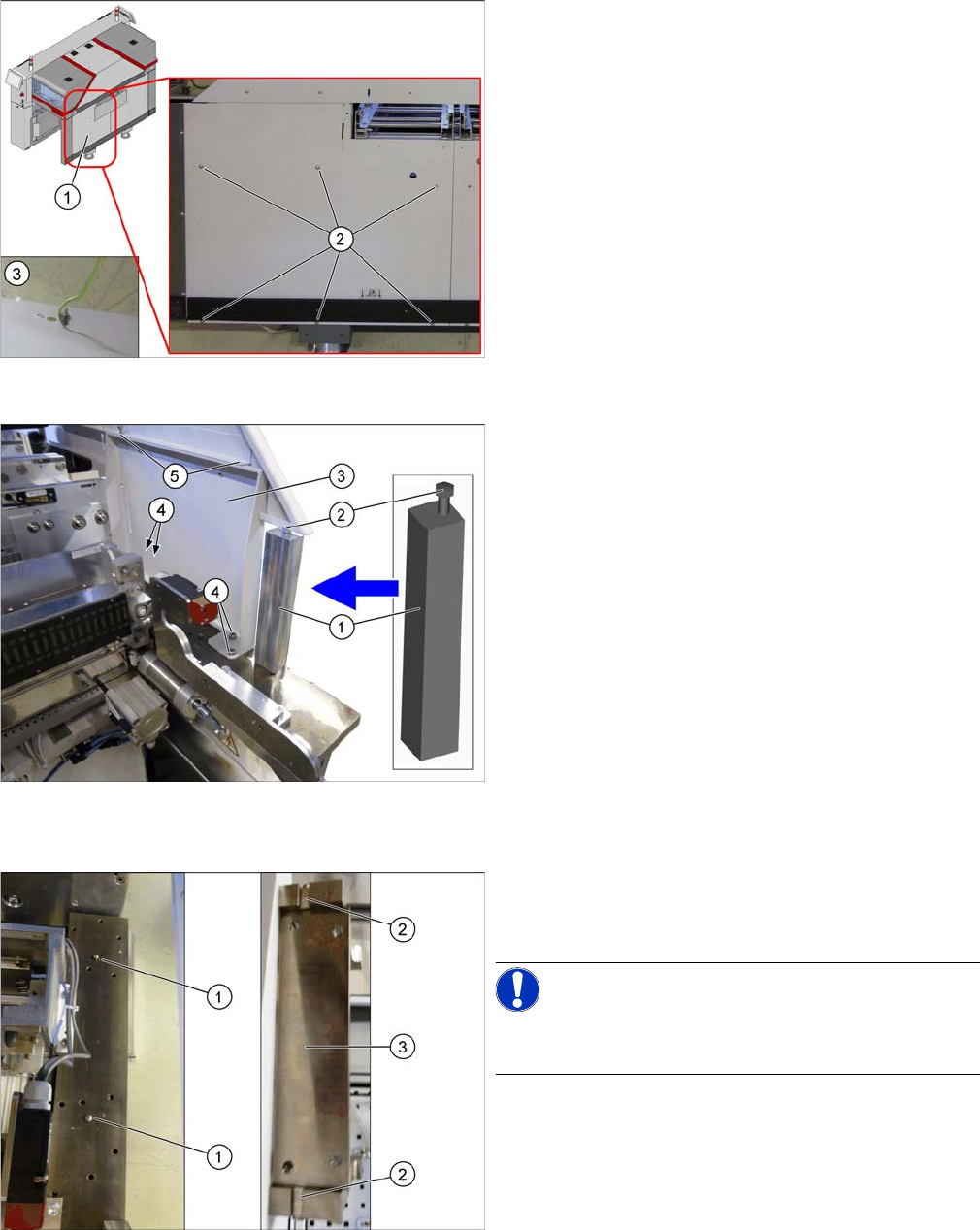

Removing the standard side cover

► Remove the six screws (2) fastening the standard

side cover (1).

Hold the standard side cover firmly while doing this,

so that it does not accidentally fall down.

► Loosen the ground cable (3) on the back of the stand-

ard side cover and place it to one side.

Inserting the support and remove the standard support

frame

► Insert the support [03136824-xx] (1) between the top

side cover and the machine frame.

► Tighten the screw (2) until the support is clamped

firmly into place.

► Remove the top two screws (5) fastening the stand-

ard support frame (3).

► Remove the bottom four screws (4) fastening the

standard support frame.

► Carefully remove the standard support frame from

the machine.

Knocking in the bolt

► Knock in the two centering pins [03015816-xx] (1).

These should protrude out of the base plate by

5mm+/- 0.5 mm.

NOTICE!

The cavities (2) on the JTF support frame (3) are 6 mm

deep.

Setting up and Commissioning

4.2.7 Fitting the SIPLACE JTF Adapter Retrofitting in the SIPLACE TX-Series

JEDEC Tray Feeder (JTF-ML) 91

4.2.7

4.2.7 Fitting the SIPLACE JTF Adapter

Fitting the SIPLACE JTF Adapter

4.2.8

4.2.8 Mounting the Output Conveyor Extension

Mounting the Output Conveyor Extension

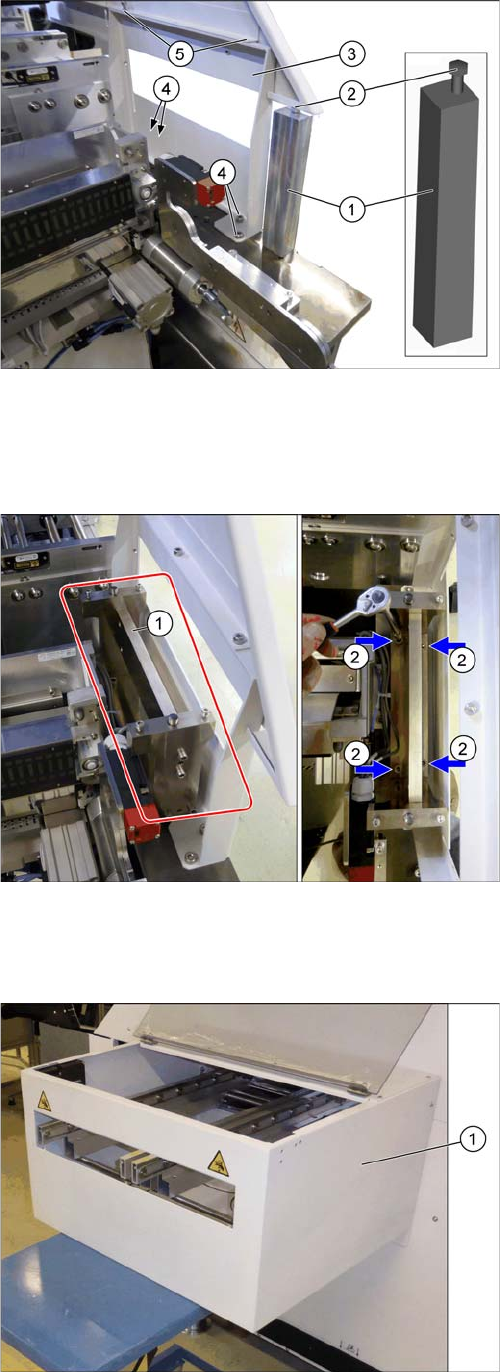

Fitting the SIPLACE JTF support frame and removing the

support

► Insert the SIPLACE JTF support frame (3) into the

machine.

► Fasten the SIPLACE JTF support frame at the bottom

with four ISO4762-M8x12-A2-70 [03042583-xx] (4)

screws.

► Fasten the SIPLACE JTF support frame at the top

with two ISO4762-M6x8-A2-70 [03043124-xx] (5)

screws.

► Loosen the screw (2) on the top end of the

support (1) and remove the support from the ma-

chine.

Mounting the SIPLACE JTF adapter

► Insert the SIPLACE JTF adapter (1) into the machine.

► Fasten the SIPLACE JTF adapter with four ISO4762-

M8x35-A2-70 [03042588-xx] (2) screws.

Use a suitable extension for this.

Mounting the output conveyor extension

► Fit the complete output conveyor extension. To do

this, read the assembly instructions "Input and Output

Conveyor Extension SIPLACE TX" [00198141-xx].
