Operational Safety
2.1.4 Warning Labels Safety information
JEDEC Tray Feeder (JTF-ML) 73
2.1.3.3
2.1.3.3 Safety of Plant and Equipment
Safety of Plant and Equipment
► Never make changes, however minor, unless you are totally aware of the effect they will have on the
overall functioning of the module and system!
► The modules must always be set up, retooled and maintained by appropriately trained personnel.
► Do not make modifications to the safety equipment. In particular, NEVER deactivate circuit-breakers
or remove safety devices.
2.1.4
2.1.4 Warning Labels
Warning Labels
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant to water
and weathering.
2.1.4.1
2.1.4.1 Warning Labels on the SIPLACE JTF-ML
Warning Labels on the SIPLACE JTF-ML
2.1.4.2
2.1.4.2 Warning, Prohibition and Cautionary Labels
Warning, Prohibition and Cautionary Labels
Terminal
1. Lemosa socket
Warning Labels on the SIPLACE JTF-ML
There are two warning labels on the sides of the
SIPLACE JTF-ML
CAUTION
Danger of crushing
Reaching in here can lead to injuries to the arms and hands.
► Do not reach into the module while it is running.
WARNING
Damage to warning labels
Incorrect cleaning can damage the warning labels.
➢ Using the correct cleaning agents.
► Do not use abrasive cleaners or solvents for cleaning warning labels.
► Replace any damaged or illegible warning labels.
► Check that the warning labels are positioned correctly.
Operational Safety
Safety information 2.1.5 Danger of Crushing at the SIPLACE JTF-ML
74 JEDEC Tray Feeder (JTF-ML)
2.1.5
2.1.5 Danger of Crushing at the SIPLACE JTF-ML
Danger of Crushing at the SIPLACE JTF-ML

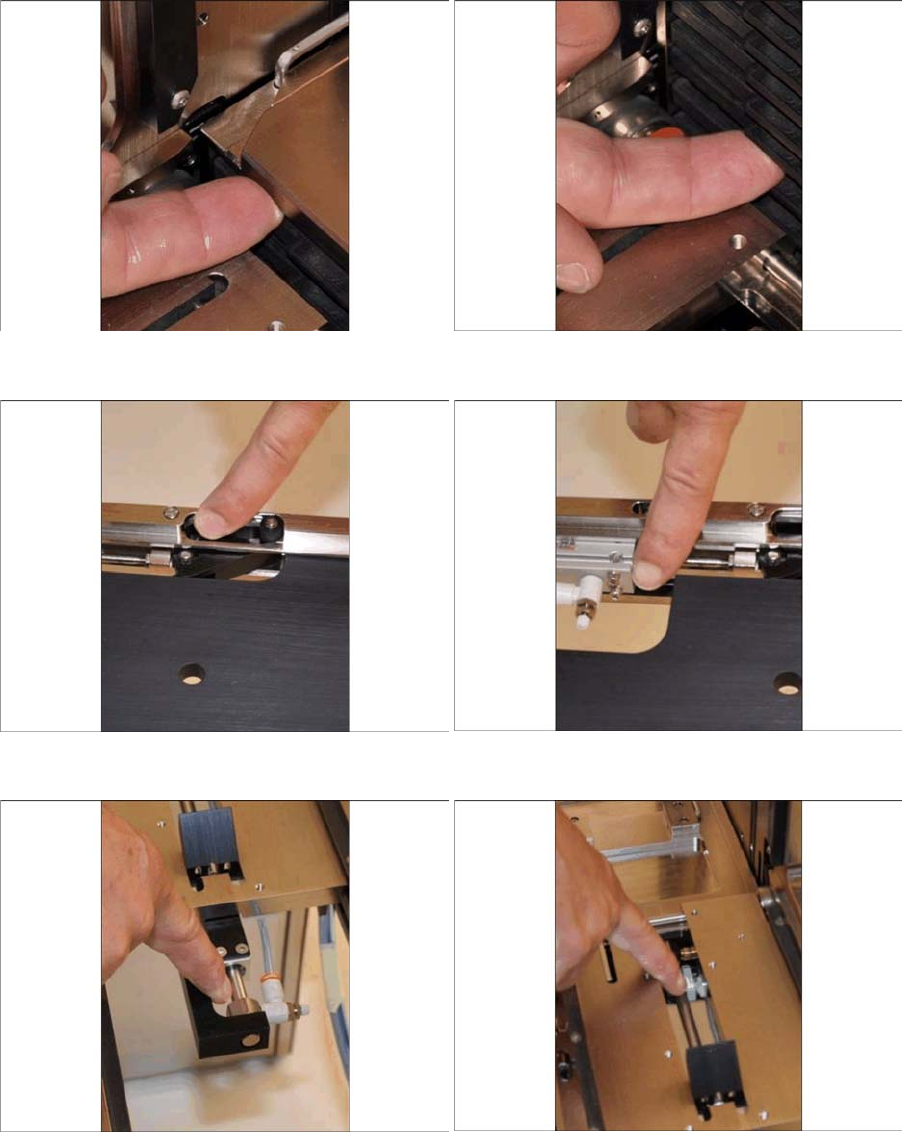

Areas of the SIPLACE JTF-ML at which there is a danger of crushing
Stop button
The SIPLACE JTF-ML (JEDEC tray stack feeder)
stops when the stop button (1) is pressed or if the
door is unintentionally opened.
DANGER
Danger of crushing
There is a risk of injuries by pinch points or a risk of crushing by reaching into the feeder or from
loose clothing which could get into the feeder during operation.
► Observe correct handling and the safety instructions.
► Do not reach into the feeder while it is running.
► Maintain an adequate safety distance.
Magazine and pusher assembly
Belt pulley
Operational Safety
2.1.5 Danger of Crushing at the SIPLACE JTF-ML Safety information
JEDEC Tray Feeder (JTF-ML) 75
Moving magazine
Moving trays
Tray clamp
Cylinder for tray clamp
Tray return assembly 1
Tray return assembly 2
