Tasks on the Machine
Operating the JEDEC Tray Feeder in the Station Software 5.3.5 JEDEC Tray Feeder Settings – Functions
116 JEDEC Tray Feeder (JTF-ML)
Multiple Selection of Trays
The Selection button provides the following quick selection types:
1. Selected Trays: xx: Indicates the number of selected trays.
2. Select empty trays: All empty trays in the setup are selected.
3. Select trays deactivated automatically: All automatically deactivated trays are selected.
4. Select trays deactivated by operator: All trays that have been manually deactivated by the operator
are selected.
5. Select trays not used by setup: All trays that are not used in the current setup are selected.
6. Select all: All trays are selected regardless of their state.
7. Deselect all: Each previous selection is discarded.

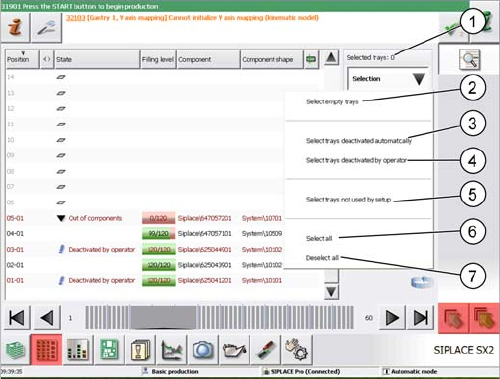

Multiple selection
(example of SIPLACE SX2 V2)
Use the key combination Shift+Alt to select several trays.
The selected trays are then highlighted in blue color.
If trays have been deactivated manually or automatically
before or if the state has been changed, you can now
easily select these trays with the Selection button.
The selected trays are then displayed as Selected Trays:
xx.
Manufacturing Engineering
Consumables
JEDEC Tray Feeder (JTF-ML) 117
6
6 Manufacturing Engineering
Manufacturing Engineering
All the ball bearings used in the feeders are sealed and they do not require any separate lubrication.
The magazine is operated via dry-running chains and therefore may not be greased.
6.1
6.1 Consumables
Consumables
CAUTION
Observe the maintenance instructions
► During these tasks, also observe the preventive maintenance manual for your machine.
Interval Maintenance task
Weekly ► Check whether the parts on the feeder are damaged.
► Check whether the conveyor belts are clean and whether they have any dam-
age.
► Replace any damaged parts.
Monthly ► Clean the feeder.
► Clean the conveyor belts and the tray platform with oil-free alcohol.
► Check whether the rubber on the tray clamps is worn or damaged. Replace it if
necessary.
Consumables Item No.
Cotton gloves 00359087-xx
Protective latex gloves 00372972-xx
Lint-free cleaning cloths 03082092-xx
Ethanol
Isopropanol – IPA can be used as an alternative.
Tools Item No.
Set of Allen keys 00376492-xx
Set of Phillips screwdrivers 00319064- xx
Vacuum cleaner
Waste bin
NOTICE
Additionally required documentation
Depending on the hardware in use, you may need additional documents.
Manufacturing Engineering
Consumables
118 JEDEC Tray Feeder (JTF-ML)
