Setting up and Commissioning
4.2.7 Fitting the SIPLACE JTF Adapter Retrofitting in the SIPLACE TX-Series
JEDEC Tray Feeder (JTF-ML) 91
4.2.7
4.2.7 Fitting the SIPLACE JTF Adapter
Fitting the SIPLACE JTF Adapter
4.2.8
4.2.8 Mounting the Output Conveyor Extension
Mounting the Output Conveyor Extension
Fitting the SIPLACE JTF support frame and removing the
support
► Insert the SIPLACE JTF support frame (3) into the
machine.
► Fasten the SIPLACE JTF support frame at the bottom
with four ISO4762-M8x12-A2-70 [03042583-xx] (4)
screws.
► Fasten the SIPLACE JTF support frame at the top
with two ISO4762-M6x8-A2-70 [03043124-xx] (5)
screws.
► Loosen the screw (2) on the top end of the
support (1) and remove the support from the ma-
chine.
Mounting the SIPLACE JTF adapter
► Insert the SIPLACE JTF adapter (1) into the machine.
► Fasten the SIPLACE JTF adapter with four ISO4762-
M8x35-A2-70 [03042588-xx] (2) screws.
Use a suitable extension for this.
Mounting the output conveyor extension
► Fit the complete output conveyor extension. To do
this, read the assembly instructions "Input and Output
Conveyor Extension SIPLACE TX" [00198141-xx].
Setting up and Commissioning
Retrofitting in the SIPLACE TX-Series 4.2.9 Fitting the Machine Protective Features
92 JEDEC Tray Feeder (JTF-ML)
4.2.9
4.2.9 Fitting the Machine Protective Features
Fitting the Machine Protective Features

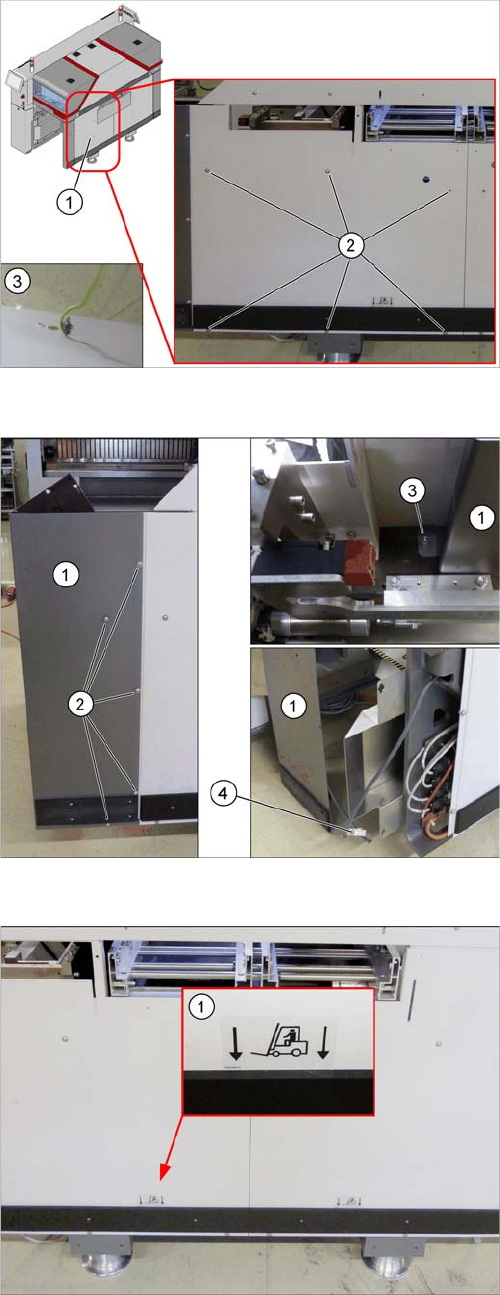

Fitting the side cover
► Fasten the ground cable (3).
► Fasten the JTF side cover (1) with six ISO7380-
2M6x8-A2-70 [03099592-xx] (2) screws.
Fitting the corner cover
► Connect the connector (4) with the machine.
► Fasten the corner cover (1) on the outside with
five (2) and on the inside with one ISO7380-2M6x8-
A2-70 [03099592-xx] (3) screw.
Attaching the label
► If not present: attach the fork lift label (1)
[03051260-xx] to the side cover.
Setting up and Commissioning
4.2.10 Fitting the SIPLACE JTF-ML Adapter Retrofitting in the SIPLACE TX-Series
JEDEC Tray Feeder (JTF-ML) 93
4.2.10
4.2.10 Fitting the SIPLACE JTF-ML Adapter
Fitting the SIPLACE JTF-ML Adapter
WARNING
Second person
We highly recommend that you enlist the help of a second person when fitting the SIPLACE
JTF-ML to the machine.
Underside of the SIPLACE JTF-ML
CAUTION!
The light barriers and other sensitive components are lo-
cated on the underside of the SIPLACE JTF-ML.
Make sure you do not damage these!

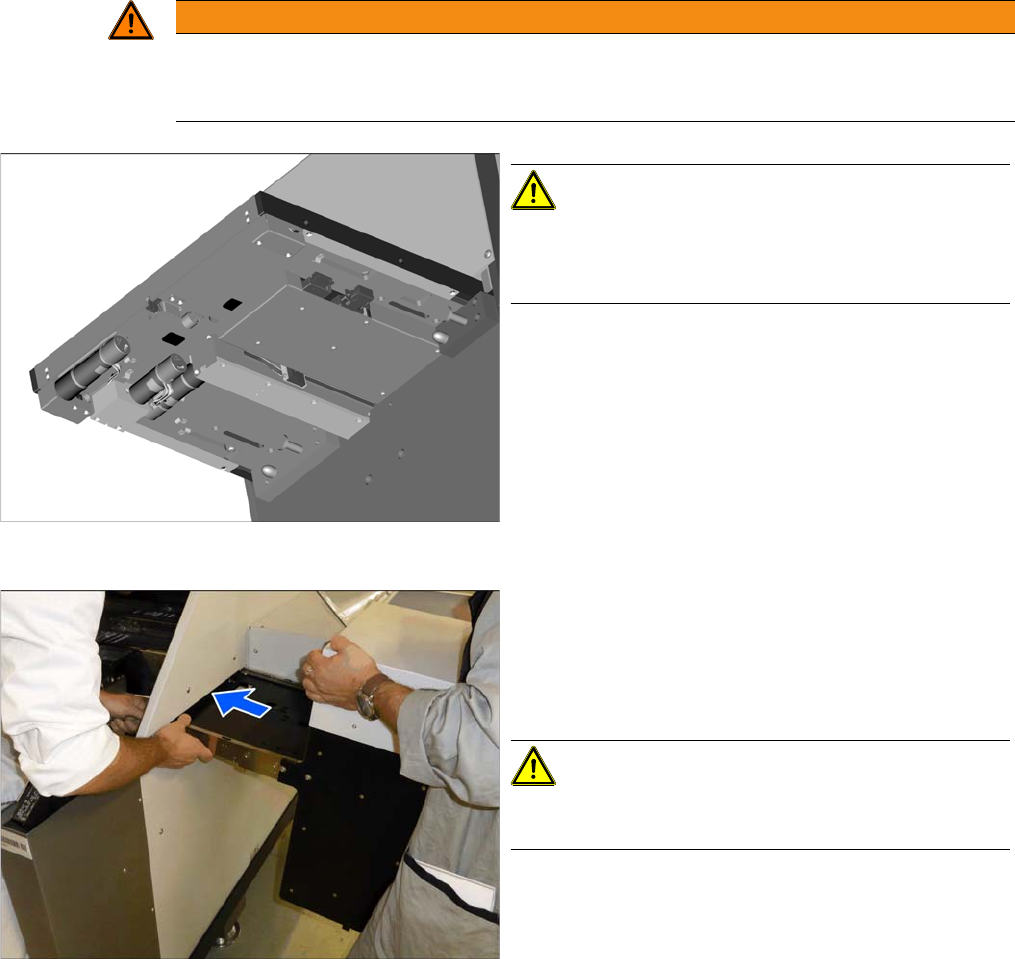

Inserting the SIPLACE JTF-ML
► Hold the SIPLACE JTF-ML as shown.
► Insert the SIPLACE JTF-ML into the machine. While
threading it through, make sure that you do not dam-
age the components on the underside of the
SIPLACE JTF-ML.
CAUTION!
Do not let go of the SIPLACE JTF-ML until it has been
fastened firmly to the holder (see next step).
