Overview – SIPLACE JTF-ML in the TX-Series

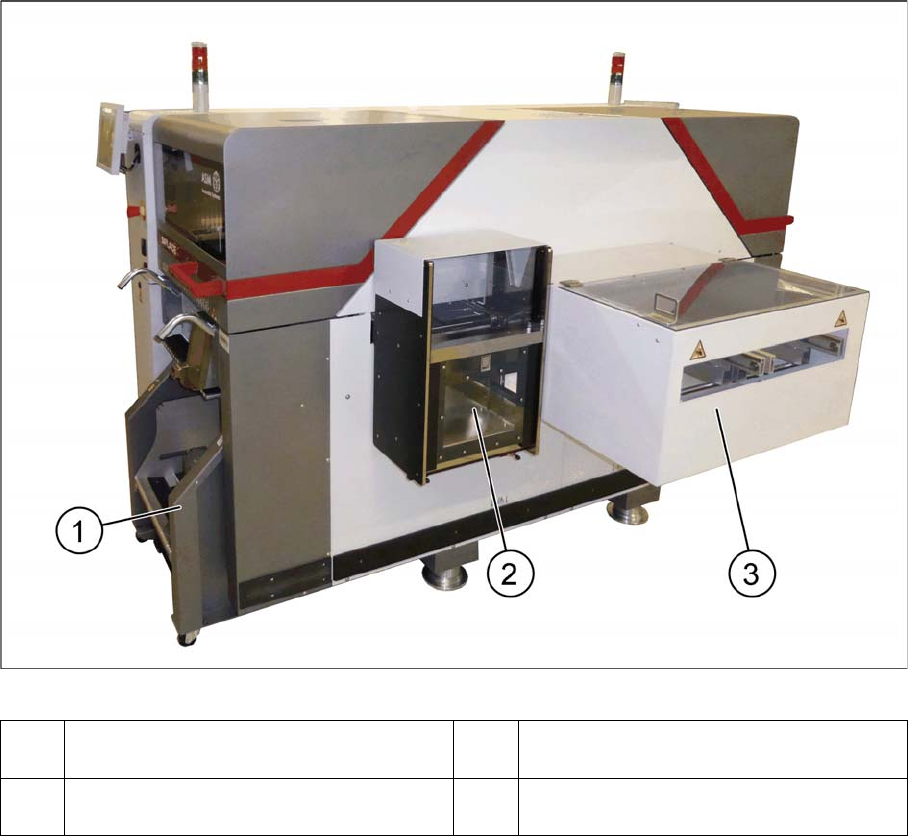

JEDEC waffle pack trays can be made available using the SIPLACE JTF-ML for SIPLACE TX1 and
SIPLACE TX2 option.

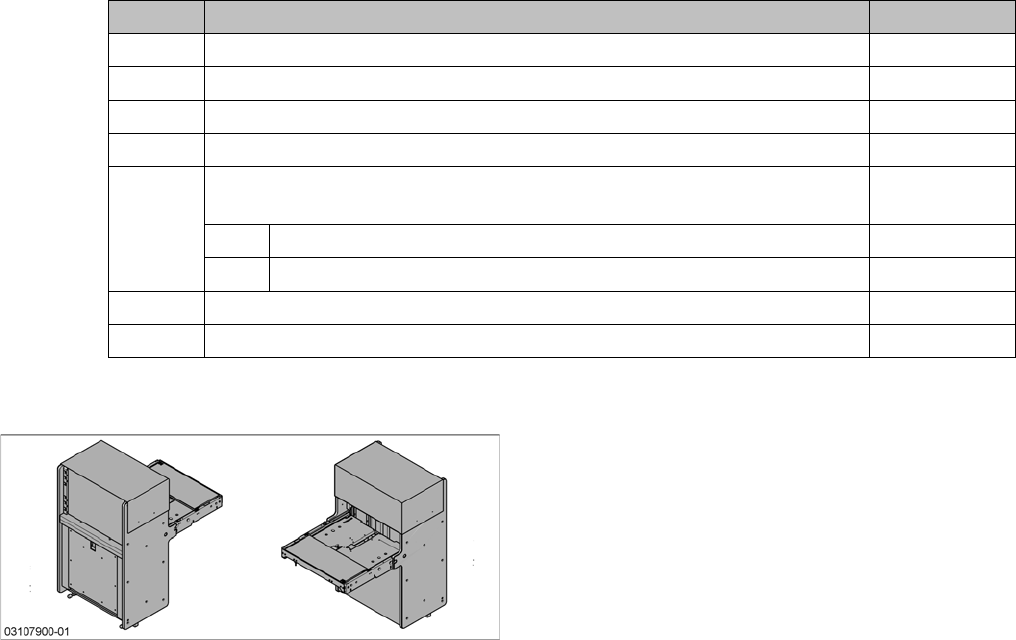

1 Changeover table for SIPLACE JTF-ML
[00588112-xx]
2 SIPLACE JTF-ML (tray feeder module)
[00588105-xx]
3 Output conveyor extension TX
[00588110-xx] (option)
Module Technical Data
Technical Data
82 JEDEC Tray Feeder (JTF-ML)
3.1
3.1 Technical Data
Technical Data
3.2
3.2 Overview of the Modules
Overview of the Modules
SIPLACE JTF-ML
Width 162 mm
Height 587 mm
Storage capacity
JEDEC waffle pack tray specifications JEDEC standard: 95-1 & IEC 60286-5
Waffle pack tray, thin 18 JEDEC waffle pack trays
Waffle pack tray, thick 14 JEDEC waffle pack trays
Weight ~ 25.7 Kg (50 lbs.) – depends on application
Waffle pack tray changeover times < 5 seconds (depending on application)
Rack n after n+1 --
Rack 1 after 18 --
Rack 18 after 1 --
Cassette
Dimensions --
Max. load. weight --
Pneumatic 4.1 bar to 5.5 bar
Compressed air consumption < 28.3 NL/min.

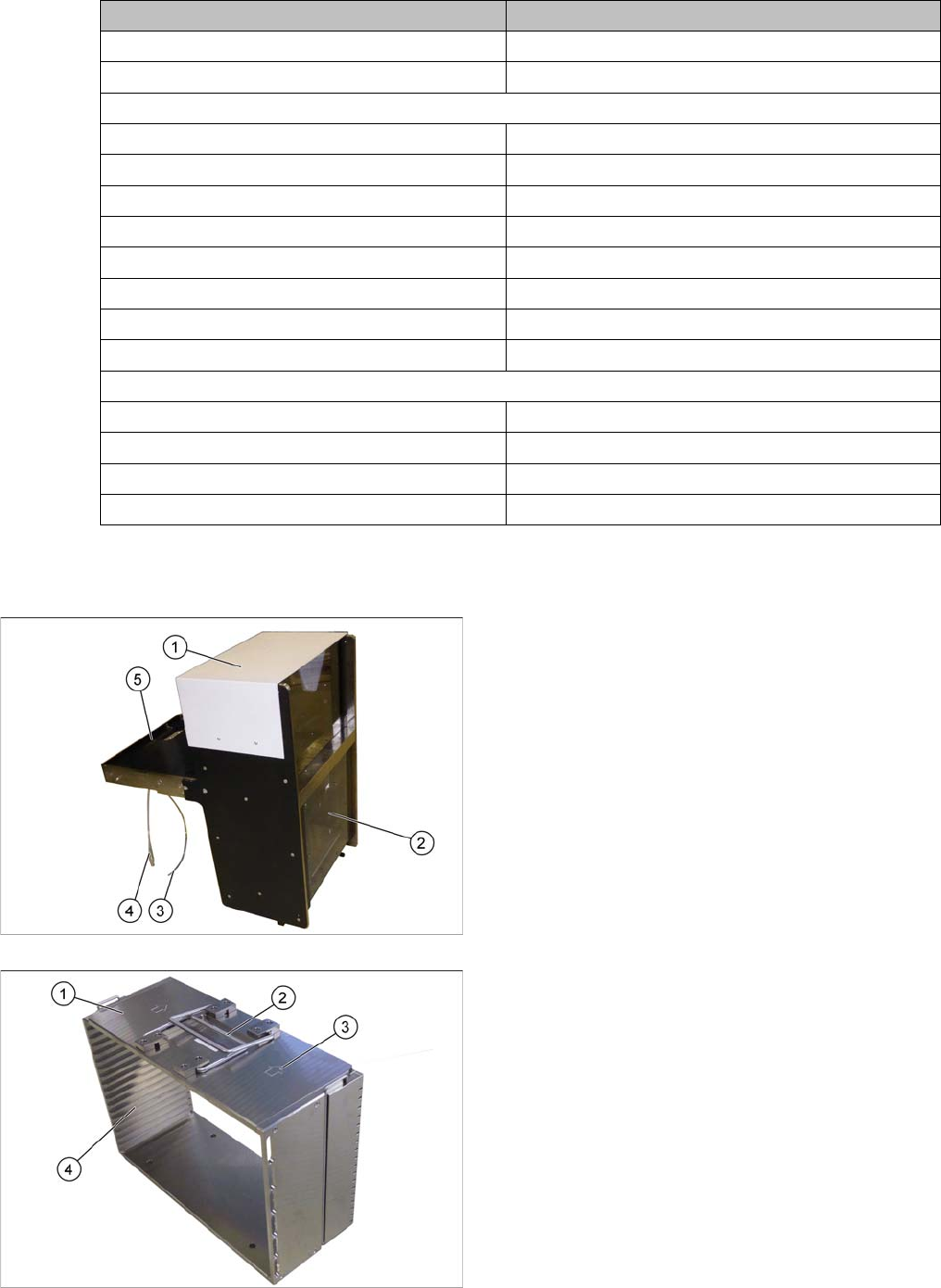

1. SIPLACE JTF-ML
2. Doors
3. Pneumatic Connection
4. Connection for SIPLACE JTF-ML adapter
5. Pick position
1. Magazine for SIPLACE JTF-ML
2. Handles
3. Loading direction
4. Guide for JEDEC trays
Setting up and Commissioning
4.2.1 Scope of Delivery Configuration and Restrictions
JEDEC Tray Feeder (JTF-ML) 83
4
4 Setting up and Commissioning
Setting up and Commissioning
4.1
4.1 Configuration and Restrictions
Configuration and Restrictions
The following requirements and restrictions apply to the SIPLACE JTF-ML:
▪ Assembly is only possible on SIPLACE TX1/TX2 machines.
It is not possible with SIPLACE TX2i machines.
▪ The software version must be 709.0 or higher.
▪ The assembly is only possible at location 1.
▪ The following placement heads are possible:
– CPP_H
– TwinHead
4.2
4.2 Retrofitting in the SIPLACE TX-Series
Retrofitting in the SIPLACE TX-Series
4.2.1
4.2.1 Scope of Delivery
Scope of Delivery
You need the following parts:
▪ SIPLACE JTF-ML (tray feeder module) [00588105-xx]
▪ Changeover table for SIPLACE JTF-ML [00588112-xx]
▪ Assembly kit for SIPLACE JTF-ML [00588106-xx]
This contains:
4.2.1.1
4.2.1.1 Overview of Parts
Overview of Parts
Quantity Designation Item No.
1 SIPLACE JTF-ML adapter assembly 03114835-xx
1 SIPLACE JTF-ML FDK 03110417-xx
1 Empty-tape duct, short TX assembly 03121376-xx
1 JTF cover assembly 03125471-xx
1 Cover assembly for JTF
This contains:
03119382-xx
1 Support frame SP1 for JTF assembly 03114836-xx
1 Cover on output side SP1 assembly TX 03115547-xx
1 Pneumatic connection SIPLACE JTF-ML TX 03133631-xx
1 Mounting support TX-JTF assembly 03136824-xx
SIPLACE JTF-ML (tray feeder module)
