Setting up and Commissioning
4.2.12 Completing the Mechanical Work Retrofitting in the SIPLACE TX-Series
JEDEC Tray Feeder (JTF-ML) 95
4.2.12
4.2.12 Completing the Mechanical Work
Completing the Mechanical Work
► Check and correct the height of the NC holder (see "7.1.2.1 Setting the Nozzle Changer Height"
[ ➙ 120]).
► Check and correct the height of the nozzle changer (see "7.1.2.2 Setting the Height of the Nozzle
Station" [ ➙ 121]).
► Check the setting of the jumper on the NC (if one is present).
It must be set to 2-3 (see also "7.1.2.3 Jumpers on the Nozzle Changer" [ ➙ 122]).
► Fit the NC and the nozzle station.
► Install the used tape chute in location 1.
► Move the component trolley into the machine.
► Turn the machine on.
► Set the software (see "4.2.13 Software Settings" [ ➙ 95]).
4.2.13
4.2.13 Software Settings
Software Settings

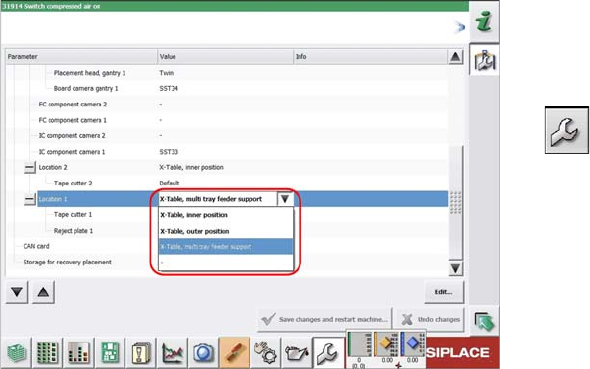

Configuring the SIPLACE JTF-ML
Configuration and calibration is performed in the user lev-
el Service.
► On first reboot with the SIPLACE JTF-ML, this needs
to be entered in the machine configuration. Select
Service → Machine Configuration.
► Select the SIPLACE JTF-ML at location 1.
► Save the changes.
► Reboot the machine.
Setting up and Commissioning
Configuration of JEDEC Tray Feeders in SIPLACE Pro 4.3.1 SIPLACE JTF-ML in SIPLACE Pro – Feeder Tree View
96 JEDEC Tray Feeder (JTF-ML)
4.3
4.3 Configuration of JEDEC Tray Feeders in SIPLACE Pro
Configuration of JEDEC Tray Feeders in SIPLACE Pro
JEDEC tray feeders are available from SIPLACE Pro 11.1. SIPLACE Pro versions up to 10.x do not sup-
port this family of feeders.
4.3.1
4.3.1 SIPLACE JTF-ML in SIPLACE Pro – Feeder Tree View
SIPLACE JTF-ML in SIPLACE Pro – Feeder Tree View
NOTICE
Example
The following graphics show the SIPLACE Pro 11.1 software taking the SIPLACE SX2 V2 as
an example. Proceed in the same way for other machine types. Any relevant differences will be
mentioned explicitly.

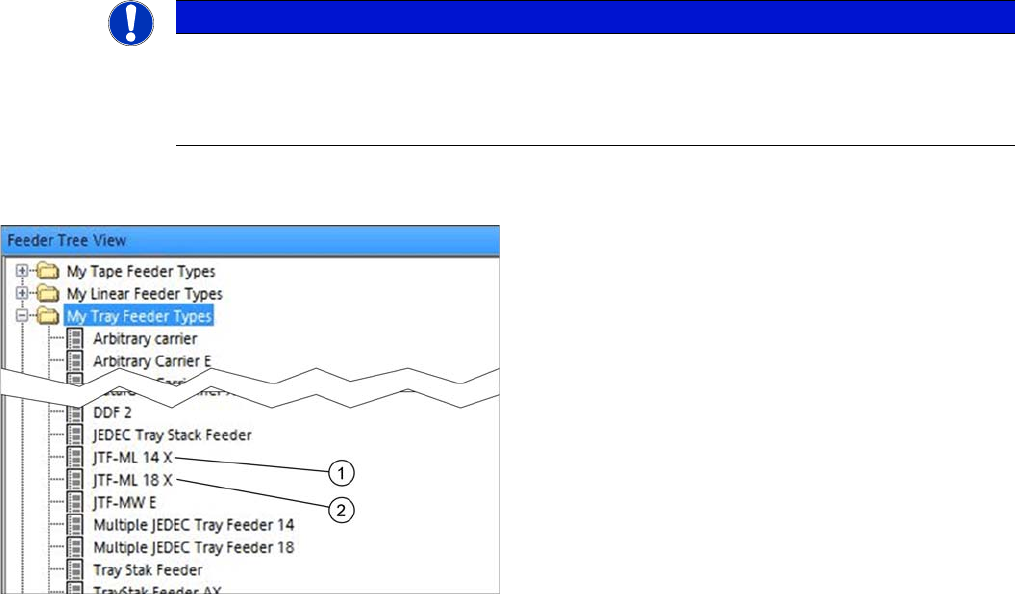

Feeder Tree View
Two SIPLACE JTF-ML feeder types can be selected in
the Feeder Tree View:
1. Multiple JEDEC tray feeder 14 for high components
version for 14 JEDEC trays d = 12.19 mm / max. 14
different component (one component type per tray)
2. Multiple JEDEC tray feeder 18 for standard compo-
nents
version for 18 JEDEC trays d = 7.62 mm / max. 18 dif-
ferent component (one component type per tray)
Setting up and Commissioning
4.3.2 JEDEC Tray Description – Tray Tree View Configuration of JEDEC Tray Feeders in SIPLACE Pro
JEDEC Tray Feeder (JTF-ML) 97
4.3.2
4.3.2 JEDEC Tray Description – Tray Tree View
JEDEC Tray Description – Tray Tree View

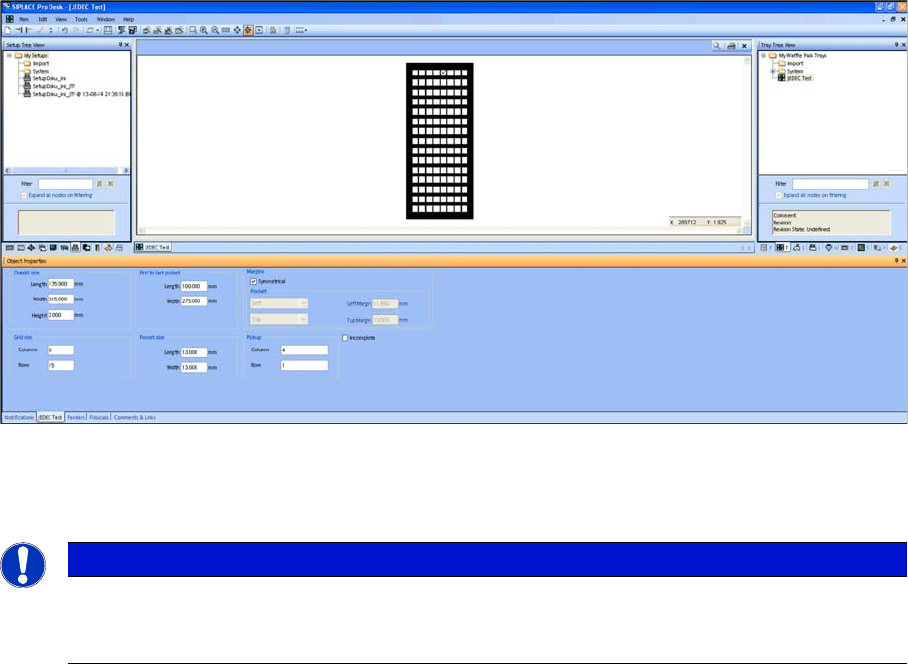

Tray Tree View
► Define one JEDEC tray with dimensions that comply with the JEDEC tray standard.
► For the dimensions, refer to the data sheet of the manufacturer.
NOTICE
JEDEC tray standard
In order to fit in a JEDEC tray feeder, the dimensions must comply with the JEDEC tray stand-
ard. In the example, a JEDEC tray with the name JEDEC Test was defined.
