Setting up and Commissioning
Retrofitting in the SIPLACE TX-Series 4.2.1 Scope of Delivery
84 JEDEC Tray Feeder (JTF-ML)

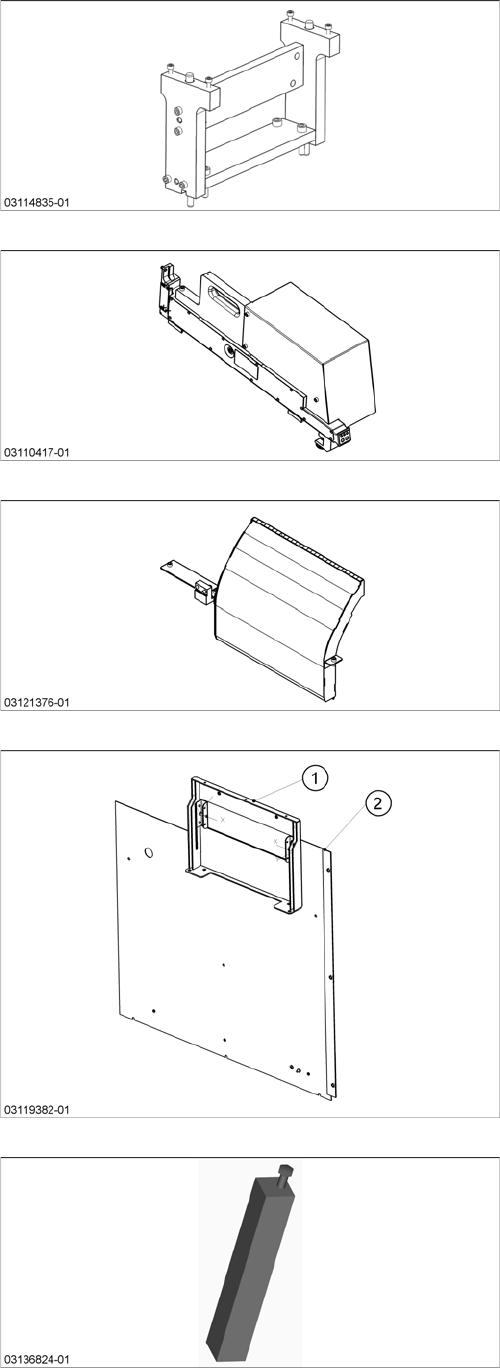

SIPLACE JTF-ML adapter assembly
SIPLACE JTF-ML FDK
Empty-tape duct, short TX assembly
Cover assembly for SIPLACE JTF-ML
Consists of:
1. Support frame assembly SP1 for SIPLACE JTF-ML
2. Cover assembly on output side SP1, TX
Mounting support TX-JTF assembly
Setting up and Commissioning
4.2.2 Tools and Equipment Required Retrofitting in the SIPLACE TX-Series
JEDEC Tray Feeder (JTF-ML) 85
4.2.2
4.2.2 Tools and Equipment Required
Tools and Equipment Required
▪ Standard tools
▪ Recommended: Allen key extension, ratchet
▪Hammer
▪Punch
▪ Feeler gauge
▪ Belt tension device
▪ Lifting trolley
▪ Second person
▪ Assembly instructions "Input and Output Conveyor Extension SIPLACE TX" [00198141-xx]
4.2.3
4.2.3 Required Working Time
Required Working Time
The complete installation, including the output conveyor extension, will take approx. four hours.
4.2.4
4.2.4 Preparatory Steps
Preparatory Steps
► Move the component trolley out of the machine.
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "2.1.6 Preparatory Work..." [ ➙ 76].
4.2.5
4.2.5 Converting the COT Insert
Converting the COT Insert

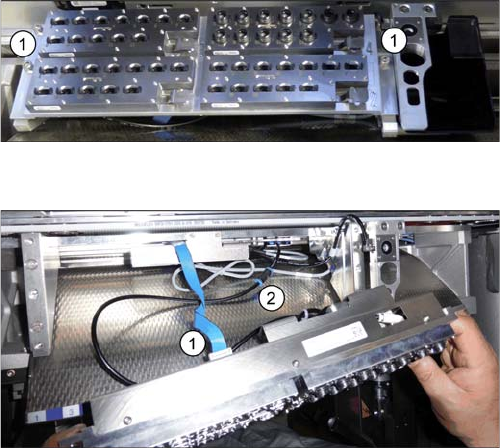

TX - Removing the NC
Removing NC 1
► Remove the four screws (1) fastening the nozzle
changer (NC).
Removing NC 2
► Unplug the electrical (1) and pneumatic
connections (2) for the nozzle changer and put the
NC aside.
Setting up and Commissioning
Retrofitting in the SIPLACE TX-Series 4.2.5 Converting the COT Insert
86 JEDEC Tray Feeder (JTF-ML)

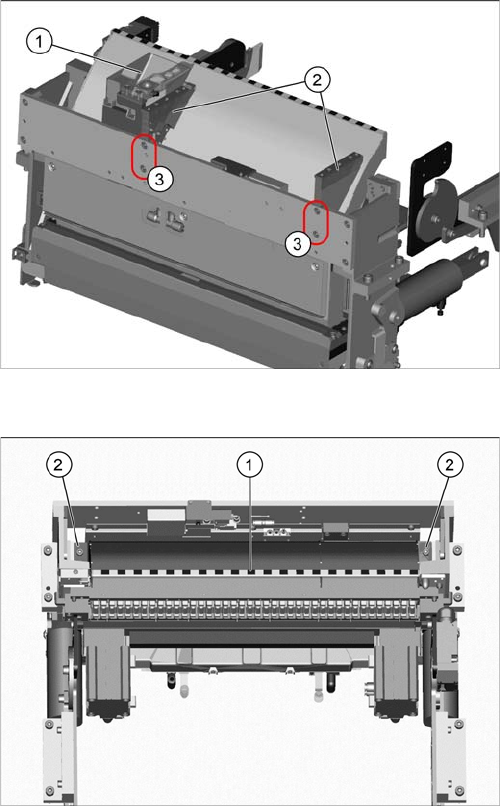

Removing the NC holder
► Remove the reject bin (1).
► Remove the screws (3) fastening the two NC
holders (2) and remove the NC holders.
Removing the empty-tape duct assembly
► Remove the two screws (2) holding the empty-tape
duct assembly (1).
► Carefully lift the empty-tape duct out of the COT in-
sert.
