挿入ﾍｯﾄﾞ部( 5) INSERTION H EAD SECT.(5) 5 FN610052012AA _00-5 M85

100%1 / 356
   
          PART NAME
     REMARKS 
Q'TY
5
挿入ﾍｯﾄﾞ部(4)
INSERTION HEAD SECT.(4)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
1012 108710901204
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
030 108710903002
SPRING ﾊﾞﾈ
2
031 108710903103
HOOK ﾌｯｸ
1032 108710903201
PIN ﾋﾟﾝ
2038 102460903701
PIN ﾋ
ﾟﾝ
1
039 108710903903
SHAFT ｼｬﾌﾄ
2
045 104130905902
COLLAR ｶﾗｰ
1046 108710904601
LEVER ﾚﾊ
ﾞｰ
2048 1087109048
COLLAR ｶﾗｰ
1
051 108710905101
LEVER ﾚﾊﾞｰ
1062 108710906201
BRACKET ﾌﾞﾗｹｯﾄ
1067 1087109067
SHAFT ｼｬﾌﾄ
1
085 108710908502
PLATE ﾌﾟﾚｰﾄ
CF6R-A
3
N001
N531CF6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
NART10R-040010
2
N015
N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
6003ZZ
4
N016
XLC6003ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
NGB-01S
1
N021
N510022906AA
GREASE NIPPLE ｸﾞﾘｽﾆｯﾌﾟﾙ
87LFZB8-10
2
N034
N510024740AA
BUSHING ﾌﾞｯｼｭ
87FNCLM-V8.0-D12.0-L11
1
N039
N510033407AA
COLLAR ｶﾗ-
87CLBGHN8-22.0-FC18
1
N040
N510024816AA
PIN ﾋ
ﾟﾝ
M84
FN610052012AA_00-4
挿入ﾍｯﾄﾞ部(5)
INSERTION HEAD SECT.(5)
5
FN610052012AA_00-5
M85
   
          PART NAME
     REMARKS 
Q'TY
5

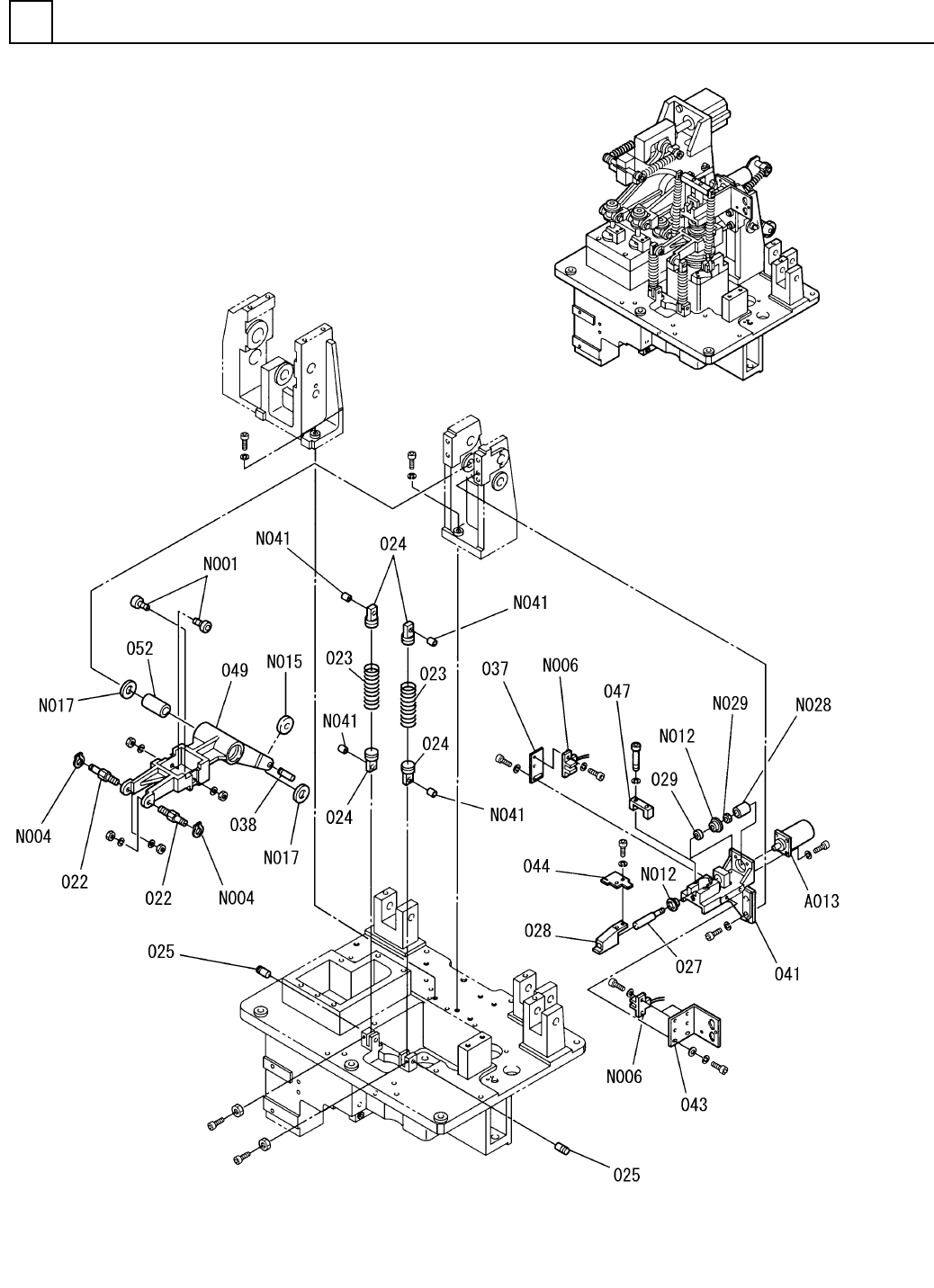

挿入ﾍｯﾄﾞ部(5)
INSERTION HEAD SECT.(5)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
2022 108710902203
PIN ﾋ
ﾟﾝ
2
023 1087109023
SPRING ﾊﾞﾈ
4
024 108710902403
HOOK ﾌｯｸ
2025 1087109025
PIN ﾋﾟﾝ
1027 101770905503
BALL SCREW ﾎﾞ
ｰﾙﾈｼﾞ
1
028 101770905302
SLIDER ｽﾗｲﾀﾞ
1
029 101635701601
COLLAR ｶﾗｰ
1037 1087109037
PLATE ﾌ
ﾟﾚｰﾄ
1038 102460903701
PIN ﾋ
ﾟﾝ
1
041 1087109041
FRAME ﾌﾚｰﾑ
1043 N210071457AA
BRACKET ﾌﾞﾗｹｯﾄ
1044 1087109044
DOG FOR SENSOR ｾﾝｻﾄ
ﾞｸﾞ
1
047 1017709050
BLOCK ﾌﾞﾛｯｸ
1
049 108710904901
LEVER ﾚﾊﾞｰ
1052 104130906602
BUSHING ﾌﾞｯｼｭ
(MSMD5AZPJA) S
1
A013
N610052036AA
MOTOR ﾓｰﾀ
CF6R-A
2
N001
N531CF6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6,STEEL,P.C
2
N004
XUB6FP
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
PANADAC921SA1
3
N006
N310P921SA1
SENSOR ｾﾝｻ
F606ZZ
6
N012
KXF020KAA00
BALL BEARING ﾎﾞｰﾙ ﾍ
ﾞｱﾘﾝｸﾞ
NART10R-040010
1
N015
N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
R-TW2040
2
N017
N560RTW2040
WASHER ｻﾞｶﾞﾈ
SFC-010WD-4.5B-8B
1
N028
N644SFC0-199
COUPLING ｶｯﾌ
ﾟﾘﾝｸﾞ
M6,SUS301,2-TYPE,S45C
1
N029
N510034069AA
LOCK-NUT ﾛｯｸﾅｯﾄ
87LFZB6-8
4
N041
N510024741AA
BUSHING ﾌﾞｯｼｭ
M86
FN610052012AA_00-5
