J.W.ﾍｯﾄﾞ部 (2) J.W.HEAD SE CT.(2) 26 FN610052080AA _00-2 M237
PART NAME
REMARKS
Q'TY
26
J.W.ﾍｯﾄﾞ部(1)
J.W.HEAD SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 N610052080AA
J.W. HEAD UNIT J.W
. ﾍｯﾄﾞﾕﾆｯﾄ
1
101 108382010101
BRACKET ﾌﾞﾗｹｯﾄ
1
104 N210067816AA
FRAME ﾌﾚｰﾑ
1106 104132010805
BRACKET ﾌﾞﾗｹｯﾄ
1107 102031002403
GUIDE ｶ
ﾞｲﾄﾞ
1
108 1087120108
BAND ﾊﾞﾝﾄﾞ
1
109 1046920109
BAND ﾊﾞﾝﾄﾞ
1110 1020310043
TUBE ﾁｭｰﾌ
ﾞ
1112 101040203101
PIN( CLAMP) ﾋﾟ
ﾝ(ｸﾗﾝﾌﾟ)
1
113 1041320115
SPRING ﾊﾞﾈ
1117 101056601901
PLATE ﾌﾟﾚｰﾄ
1118 1010566028
COLLAR ｶﾗｰ
1
119 1041320125
COLLAR ｶﾗｰ
1
134 1041420049
GUIDE ｶﾞｲﾄﾞ
1135 1041420050
BRACKET ﾌﾞﾗｹｯﾄ
1136 102031005302
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
137 102031005203
GUIDE ｶﾞｲﾄﾞ
1
138 1041320144
BLOCK ﾌﾞﾛｯｸ
M4-6H-4T A2J (Trivalen
1
N009
N510017859AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
SPOS-M4X15-A
1
N018
N510023196AA
POST ﾎﾟ
ｽﾄ
3X8,m6A,STEEL
2
N021
XPJ3A8FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
N912019
1
N026
N648N912019
ROLLER ﾍﾞｱﾘﾝｸﾞﾛｰﾗ
A205107-15
1
N027
N986A205-075
GUIDE ｶ
ﾞｲﾄﾞ
M4-6H-4T A2J (Trivalen
1
N028
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M236
FN610052080AA_00-1
J.W.ﾍｯﾄﾞ部(2)
J.W.HEAD SECT.(2)
26
FN610052080AA_00-2
M237
PART NAME
REMARKS
Q'TY
26

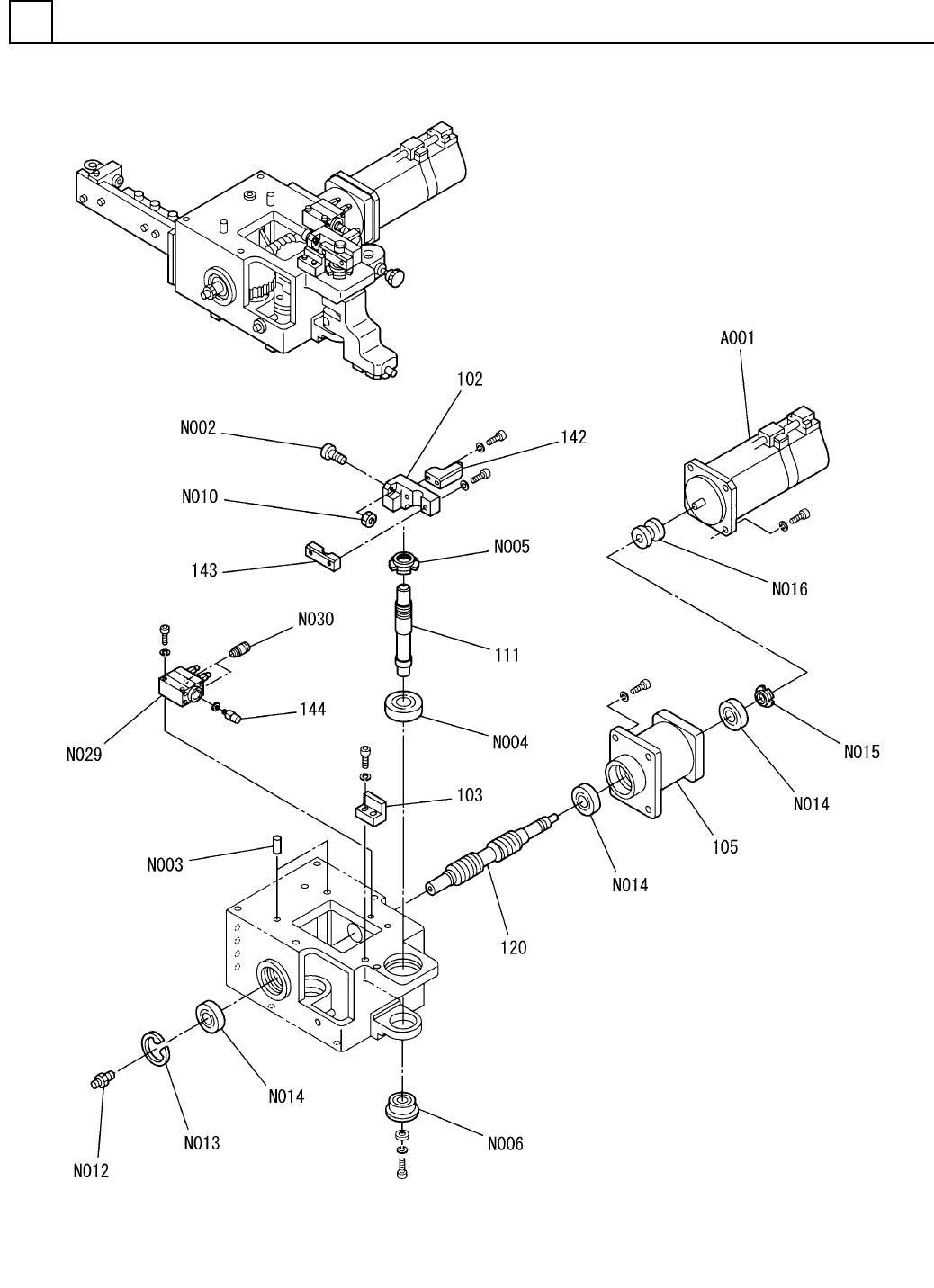

J.W.ﾍｯﾄﾞ部(2)
J.W.HEAD SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1102 N210067818AA
LEVER ﾚﾊ
ﾞｰ
1
103 N210067823AA
STOPPER ｽﾄｯﾊﾟ
1
105 1041320107
BRACKET ﾌﾞﾗｹｯﾄ
1111 N210067815AA
SHAFT ｼｬﾌﾄ
1120 1041420033
GEAR ｷ
ﾞﾔｰ
1
142 N210067820AA
BLOCK ﾌﾞﾛｯｸ
1
143 N210067822AA
NUT ﾅｯﾄ
1144 N210067858AA
PUSHER ﾌ
ﾟｯｼｬ
(MSMD012PJA) S
1
A001
N610052033AA
MOTOR ﾓｰﾀ
CF3-A
1
N002
N531CF3A
CAM FOLLOWER ｶﾑﾌｫﾛｱ
5X12,m6A,STEEL
2
N003
XPJ5A12FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
6001ZZ
1
N004
XLC6001ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
FU01SS
1
N005
KXF0233AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
F699ZZ
1
N006
KXF08ZCAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M3-6H-4T A2J (Trivalen
1
N010
N510017849AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
NGA-6075S
1
N012
N510022291AA
GREASE NIPPLE ｸﾞ
ﾘｰｽﾆｯﾌﾟﾙ
22,STEEL,P.C
1
N013
XUA22FP
RETAINING RING C-TYPE, CORE C ｶﾞﾀｱﾅﾖｳﾄﾒﾜ
608ZZ
3
N014
XLC608ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
FUN-008-SS
1
N015
N510022896AA
NUT ﾅｯﾄ
ZA-0806
1
N016
KXF0BZ0AA00
COUPLING ｶｯﾌﾟ
ﾘﾝｸﾞ
CDUJB10-6D-F8NL
1
N029
KXF0DZQAA00
CYLINDER ｼﾘﾝﾀﾞ
KJS04-M3
2
N030
KXF029MAA00
FITTING ﾂｷﾞﾃ
M238
FN610052080AA_00-2
