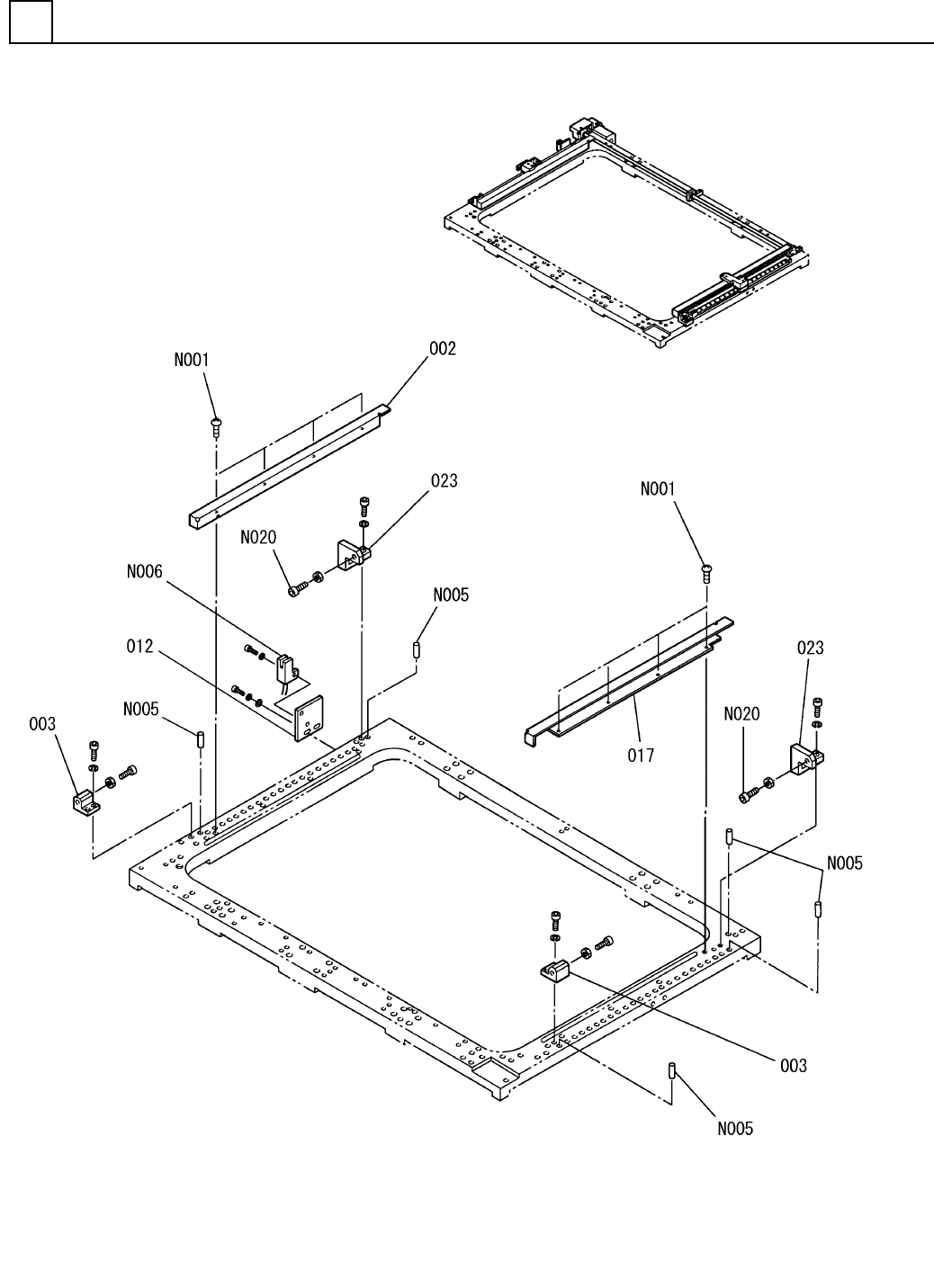

X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部2)
X-Y TABLE SECT.(AUTO WIDTH CONTROL SECT.-2)
22
FN610055726AA_00-2
M193
   
          PART NAME
     REMARKS 
Q'TY
22
X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部2)
X-Y TABLE SECT.(AUTO WIDTH CONTROL SECT.-2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
1002 N210068287AA
COVER ｶﾊ
ﾞｰ
2
003 N210068292AA
BRACKET ﾌﾞﾗｹｯﾄ
1
012 108710411202
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
1017 N210068286AA
COVER ｶﾊﾞｰ
2023 N210068293AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
M3X6-4.8 A2J (Trivalen
8
N001
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
4X10,m6A,STEEL
5
N005
XPJ4A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
P914S1
1
N006
N310P914S1
SENSOR ｾﾝｻ
SUB-M4X15
2
N020
N510017001AA
BOLT ﾎ
ﾞﾙﾄ
M194
FN610055726AA_00-2

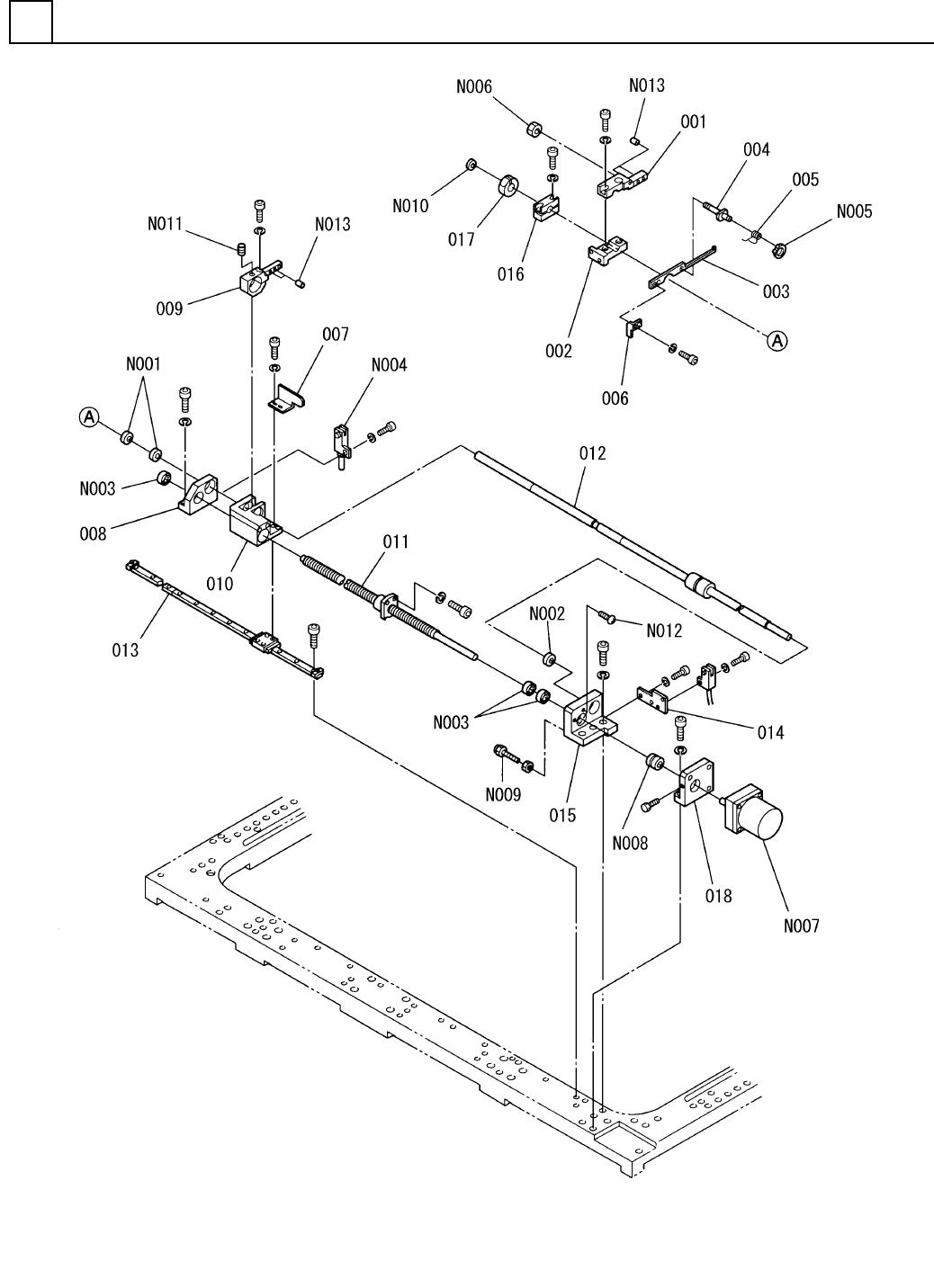

X-Yﾃｰﾌﾞﾙ部(ﾋﾟﾝ自動幅寄せ部)
X-Y TABLE SECT.(PIN AUTO WIDTH CONTROL SECT.)
22
FN610054629AA_00
M195
